24
English
WARNING: When making laser line adjustments, keep fi ngers away from the
ON/OFF trigger switch to prevent accidental starting and possible
serious injury.
(e) Slide the cutting head forward enough so that the laser line is visible on the front of
the board.
(f) Looking at the front of the board, if the laser line is not parallel to the “pattern line”
please follow the instructions listed below under “Front line” paragraph.
(g) Looking at the top of the board, if the laser line is not parallel to the “pattern line”
please follow the instructions listed below under “Top line” paragraph.
NOTE: If the laser line is not visible on the front of a board, lower the cutting head
until the laser line is visible.
(3) Adjusting the position of the laser line
Front line
If the laser line is angled from pattern line of front side, turn the laser vertical
adjustment knob to align the laser line parallel with pattern line. (Fig. 22- b)
Top line
If the laser line is angled from pattern line of top side, turn the laser horizontal
adjustment knob to align the laser line parallel with pattern line. (Fig. 22- c)
NOTE: When adjusting the front line and top line, turning the adjustment knob too
much will result in the laser refl ecting off of the saw blade to produce two
laser lines.
NOTE: After performing the above adjustments, visually check that both the front
and top laser lines are parallel with pattern line.

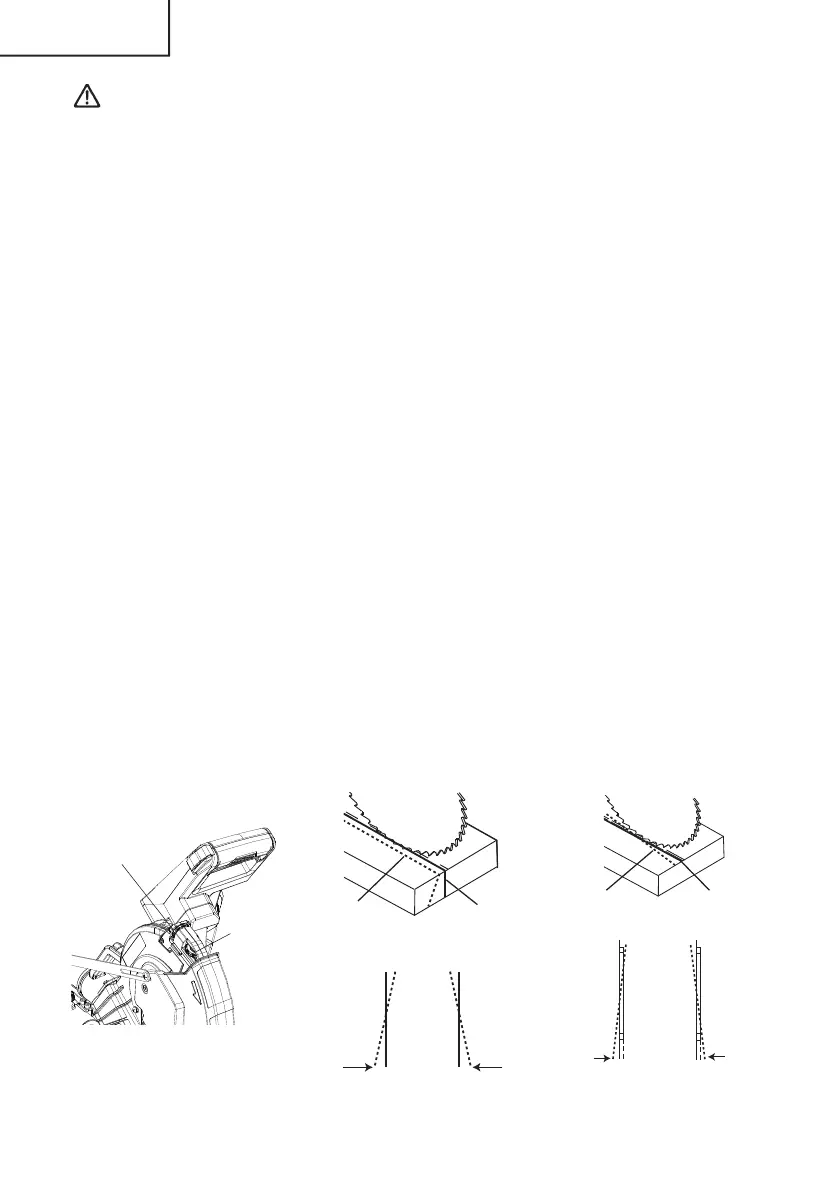

Fig. 22-a Fig. 22-b Fig. 22-c
Laser vertical
adjustment knob
Laser
horizontal
adjustment
knob
Laser line
Pattern line
CounterclockwiseClockwise
Counterclockwise Clockwise
Laser line
Pattern line
000BookC10FSHC(T)NA.indb24000BookC10FSHC(T)NA.indb24 2019/02/2516:34:022019/02/2516:34:02
