36
English

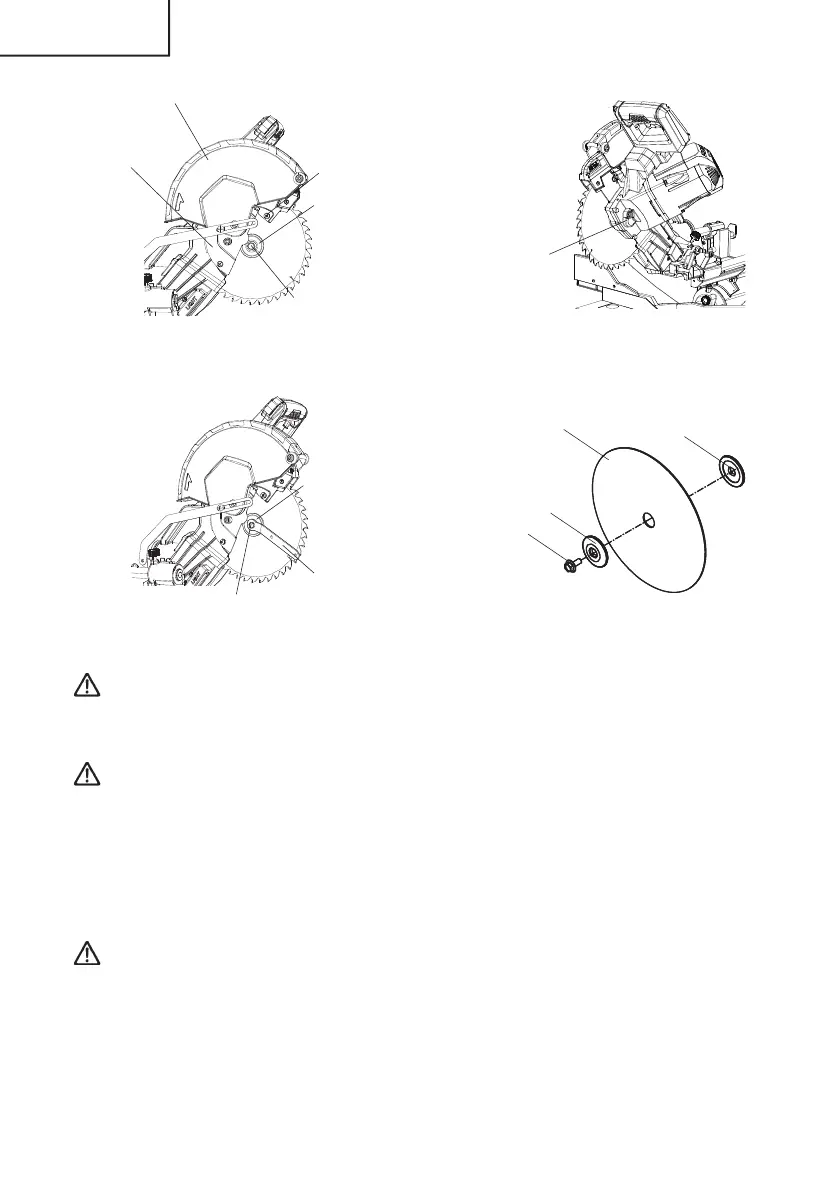

Fig. 44-a
Lower guard
Cover plate
screw
8 mm bolt
Fig. 44-b
Spindle lock
Blade end
spanner
8 mm bolt
Washer (B)
Fig. 44-c
Washer (B)
8 mm bolt
Blade
Washer (A)
Fig. 44-d
Washer (B)
Cover plate
WARNING: When mounting the saw blade, con rm that the rotation indicator
mark on the saw blade and the rotation direction of the lower
guard (see Fig. 1) are properly matched.
CAUTION: * Con rm that the spindle lock has returned to the retract position
after installing or removing the saw blade.
* Tighten the 8 mm bolt so it does not come loose during operation.
Con rm the 8 mm bolt has been properly tightened before the
power tool is started.
2. Mounting the saw blade
WARNING: Unplug the miter saw before changing/installing the blade.
(1) Install a 10" (255 mm) blade with arbor, making sure the rotation arrow on the blade
matches the clockwise rotation arrow on the lower guard, and the blade teeth are
pointing downward.
(2) Place washer (B) against the blade. Thread the 8 mm bolt on arbor in a counterclockwise
direction.
