10. 45° Left bevel adjustment
(1) Fully extend the sub fence (B) completely to the left,
and then pull the set pin (A) towards the front of the
machine.
NOTE: When retracting the set pin (A), it may be
necessary to shift the miter saw upper arm
assembly to the left/right to release the
holding pressure.
(2) Loosen the bevel lock handle and tilt the gear case
completely to the left.
(3) Using a combination square, check to see if the blade
is 45° to the table.
(4) To adjust, tilt the gear case to 0°, loosen the locknut,
and turn the bolt in or out to increase or decrease the
angle as shown in Fig. 16.
(5) Tilt the gear case back to the left, and recheck
alignment.
(6) Repeat steps until the blade is 45° to the table. Once
alignment is achieved, tighten locknut and bevel lock
handle when alignment is achieved.
11. 45° Right bevel adjustment
(1) Set the miter angle to 0°. Fully extend the sub fence
(A) completely to the right, and then pull the set pin
(A) towards the front of the machine.
NOTE: When retracting the set pin (A), it may be
necessary to shift the mitre saw upper arm
assembly to the left/right to release the
holding pressure.
(2) Loosen the bevel lock handle and tilt the gear case
completely to the right.
(3) Using a combination square, check to see if the blade
is 45° to the table.
(4) To adjust, tilt the gear case to 0°, loosen the locknut,
and turn the bolt in or out to increase or decrease the
angle as shown in Fig. 17.
(5) Tilt the cutting arm back to the right, and recheck
alignment.
(6) Repeat steps until the blade is 45° to the table. Once
alignment is achieved, tighten locknut and bevel lock
handle when alignment is achieved.

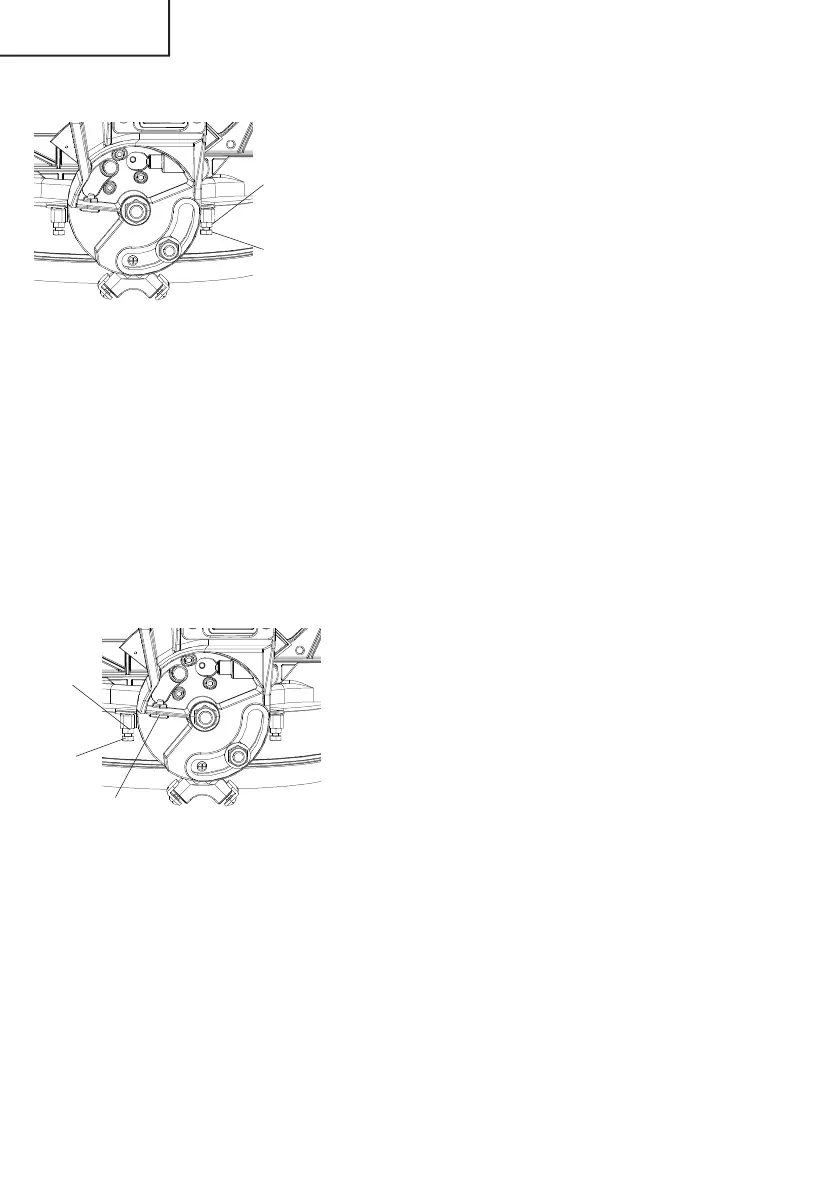

Fig. 16
Locknut
Bolt
Locknut
Hex screw
Bolt
Fig. 17
