22
English
(2) Setting the maximum height travel of the cutting head,
follow the below steps: (Fig. 19-b)
Turn the stop knob counterclockwise until the stop
knob is not protruding out of the stop block while
moving the cutting head upward.
Rotate the anchor plate counterclockwise to touch the
stop seat.
Make sure the stop block touches the anchor plate
completely.
15. Setting the cutting depth (Fig. 19-b)
The depth of cut can be preset for even and repetitive shallow cuts.
(1) Adjust the cutting head down until the teeth of the blade are at the desired depth.
(2) While holding the upper arm in that position, turn the stop knob until it touches the
anchor plate.
(3) Recheck the blade depth by moving the cutting head front to back through the full
motion of a typical cut along the control arm.
NOTE: If the anchor plate becomes loose, it can interfere with raising and lowering
the cutting head. The anchor plate must be tightened in horizontal position
as shown in Fig. 19-b.
16. The laser guide
WARNING: * For your own safety, never connect the plug to power source
outlet until all the adjustment steps are complete and you have
read and understood the safety and operational instructions.
* Your tool is equipped with a laser guide using a Class 1M laser
guide. The laser guide allows you to preview the saw blade path
on the workpiece to be cut before starting the miter saw. This
laser guide is powered by the transformed alternating current
supply directly through the power lead. The saw must be
connected to the power source and the laser on/off switch must
be turned on for the laser line to show.

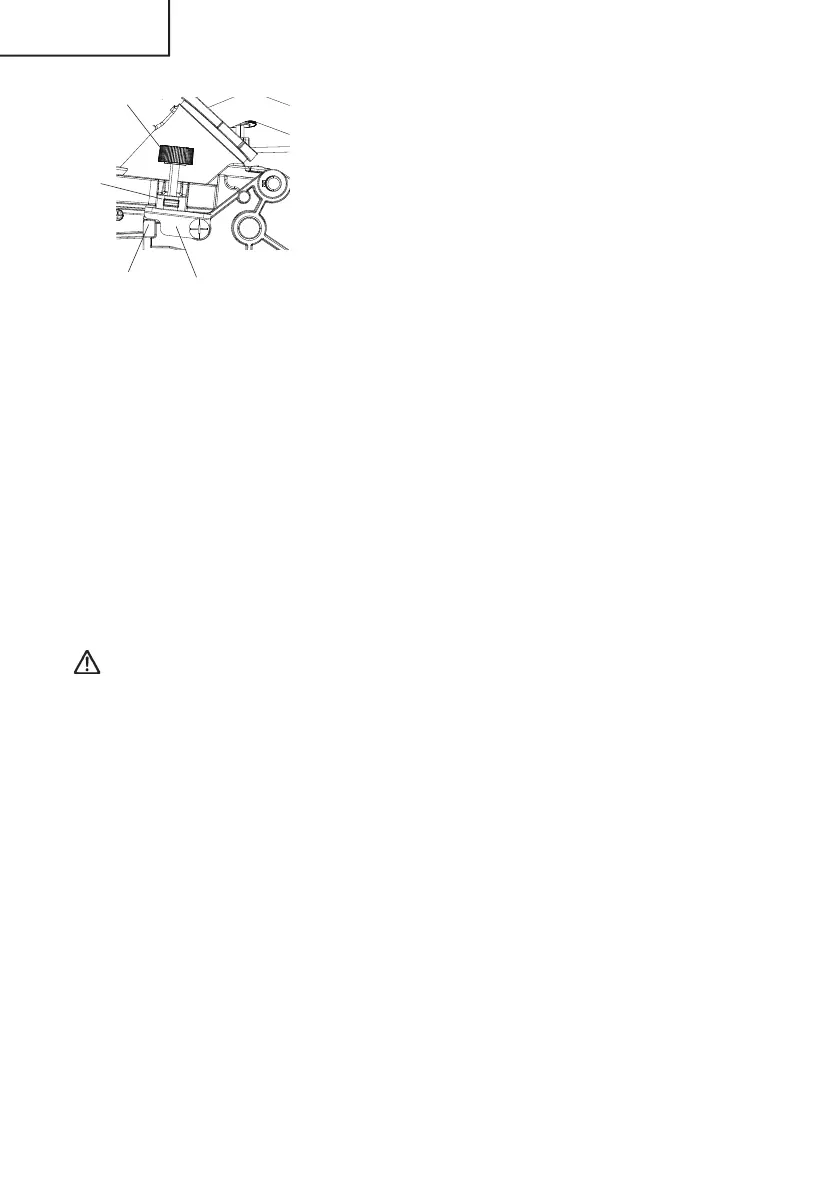

Stop knob
Stop seat
Stop block
Anchor plate
Fig. 19-b
000BookC10FSHC(T)NA.indb22000BookC10FSHC(T)NA.indb22 2019/02/2516:33:582019/02/2516:33:58
