Hitachi C 12LDH Technical Data And Service Manual

--- 29 ---
201
202
203
205
206
207
208
209
210
212
202
205
206
207
214
215
216
217
218
221
222
219
220
223
224
225
226
212
228
229
230
231
232
233
234
235
236
237
238
239
241
242
240
243
244
245
247
17
246
265
266
267
265
270
271
272
286
287
202
213
214
247
17
204
C. Armature ass'y
Switch, switching power supply, stator ass'y, armature ass'y and pulley (A)
Tools required:
• Phillips screwdriver
• Flat-blade screwdriver
• Hex. bar wrench 4 mm
• Nipper
• Plastic hammer
• Box wrench 13 mm

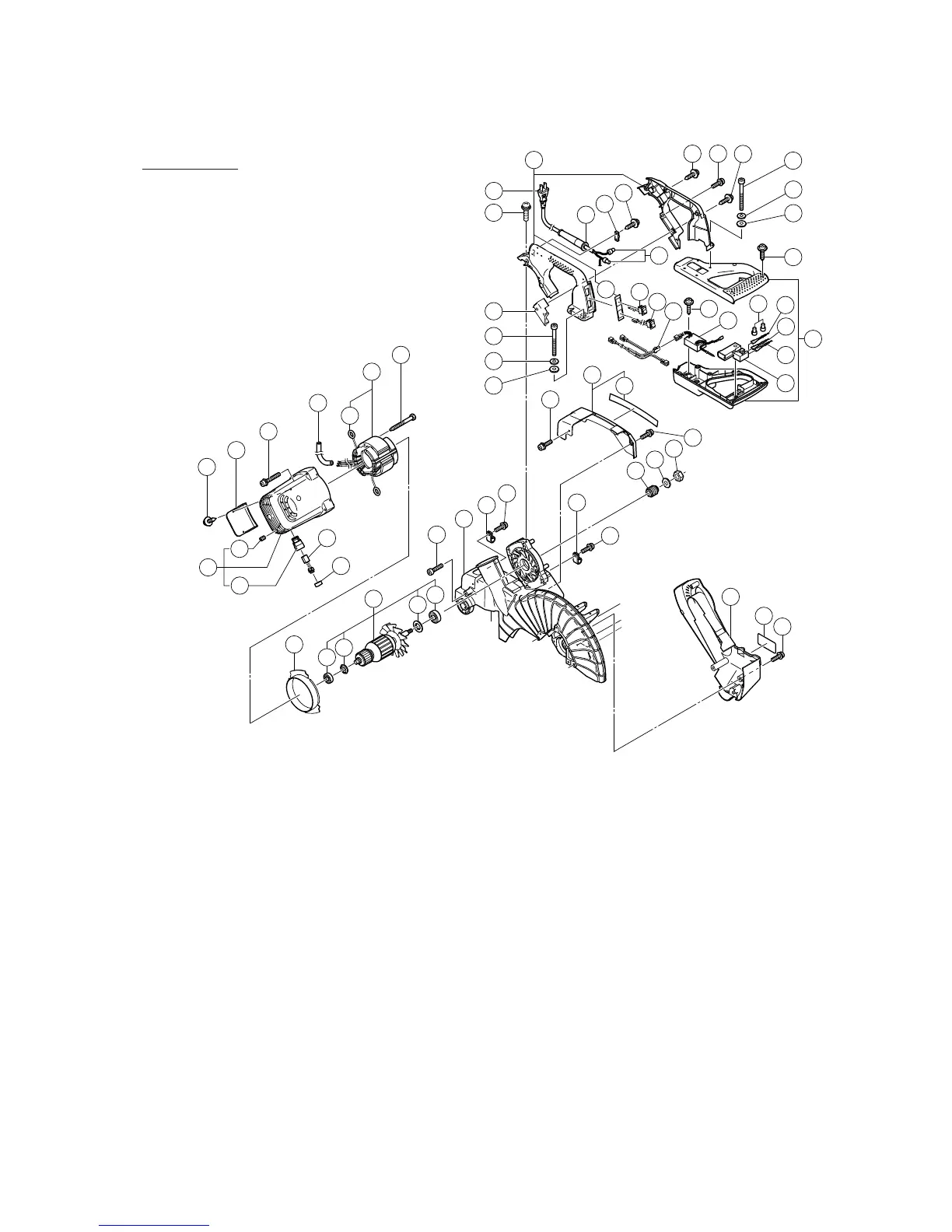

Fig. 44
1. Remove the three Machine Screws(W/Washers) M5 x 16 [202] to remove the Pulley Cover [286].
2. Remove the Tapping Screw (W/Flange) D4 x 16 (Black) [213] to remove Cord Cover (B) [204].
3. Remove the three Machine Screws (W/Washers) M5 x 16 [202], Tapping Screws (W/Flange) D4 x 16 (Black)
[212] and two Hex. Socket Hd. Bolts M5 x 70 [205] to remove the right side of the Handle Ass'y [203].
4. Cut off the Connector 50092 [214] that crimps the internal wires coming from the Cord [201], Stator Ass'y 120V
[232] and Switching Power Supply [220] at the root of the internal wires.
5. Cut off the Connector 50092 [214] that crimps the internal wires coming from the Cord [201], Internal Wire (A)
(Black) [225] and Switch (A) [216] at the root of the internal wires. Cut off the two Connectors 50092 [214]
that crimp the internal wires coming from the Stator Ass'y 120V [232], Internal Wire (A) (Yellow) [224] and
Internal Wire (A) (Blue) [223] at the root of the internal wires.
6. Disconnect the faston that connects the Switching Power Supply [220] with Switch (A) [216]. Disconnect the
connector that connects Switch (B) [217] with Cord (B) [218].
