--- 36 ---
11-4. Wiring Diagram
Carefully ensure that wiring is accomplished as illustrated below. As incorrect wiring will result in lack of rotation,
reverse rotation or other malfunctions, close attention is absolutely necessary.
WARNING: Be sure to turn off Switch (A) [216] at the front of the handle ass'y and unplug the power
cord plug from the receptacle before replacing Laser Module (A) [14] and the Switching
Power Supply [220]. Do not stare into beam while the laser marker is lighting.

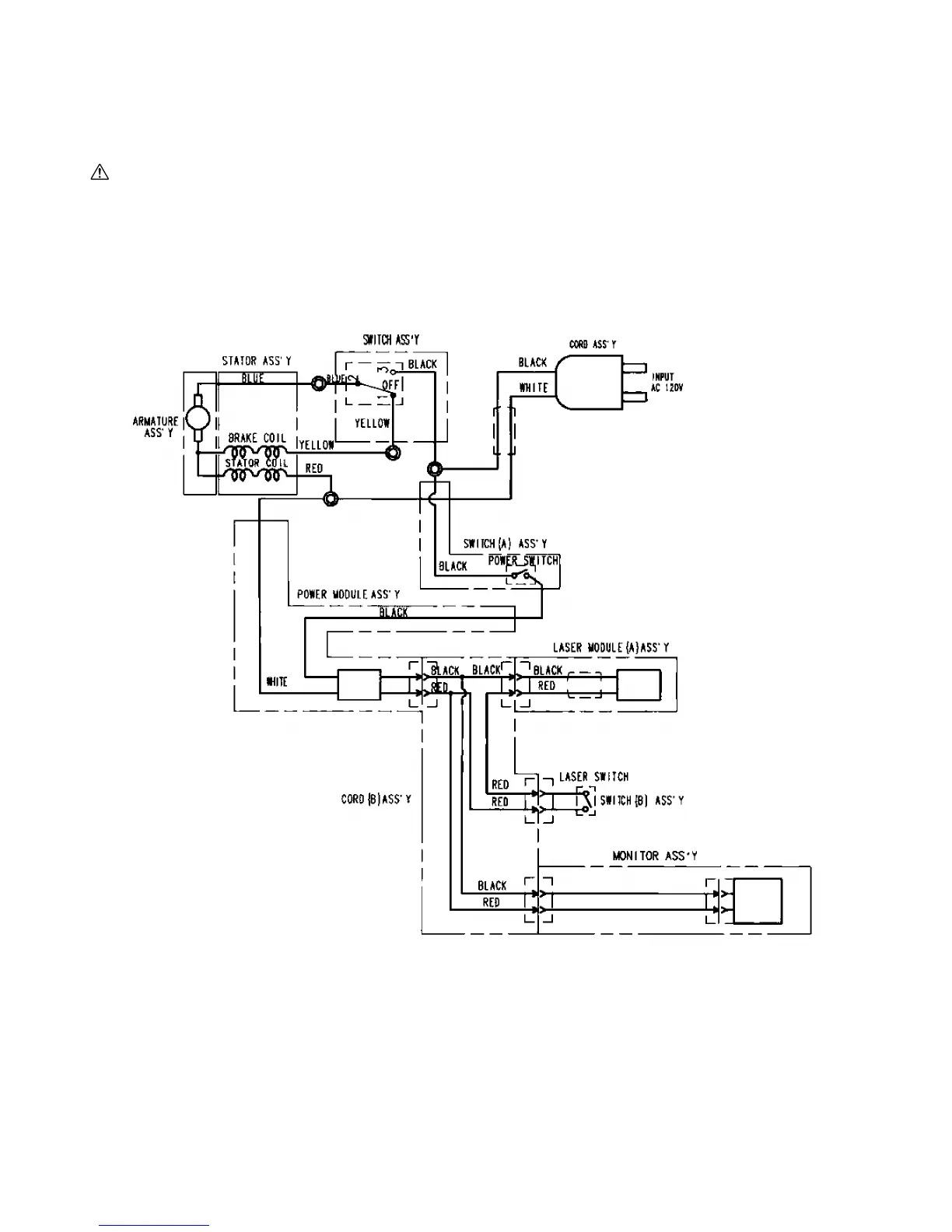

Wiring diagram (C 12LDH)
Fig. 49
To Next Page
