Hitachi C 12LDH Technical Data And Service Manual

--- 32 ---
1
2
4
5
6
7
3
8
9
10
11
12
13
14
47
48
39
40
39
41
42
43
46
45
49
50
51
58
59
12
44
83
1
14
245
247
17
201
202
203
205
206
207
208
209
210
212
202
205
206
207
214
215
216
217
218
221
222
219
220
223
224
225
226
265
266
267
265
213
214
204
247
17
E. Laser module (A) and spring
Laser module (A) and spring
Tools required:
• Phillips screwdriver
• Hex. bar wrench 5 mm
• Hex. bar wrench 3 mm
• Hex. bar wrench 2.5 mm
• Plastic hammer
• Hammer
• Long-nose pliers

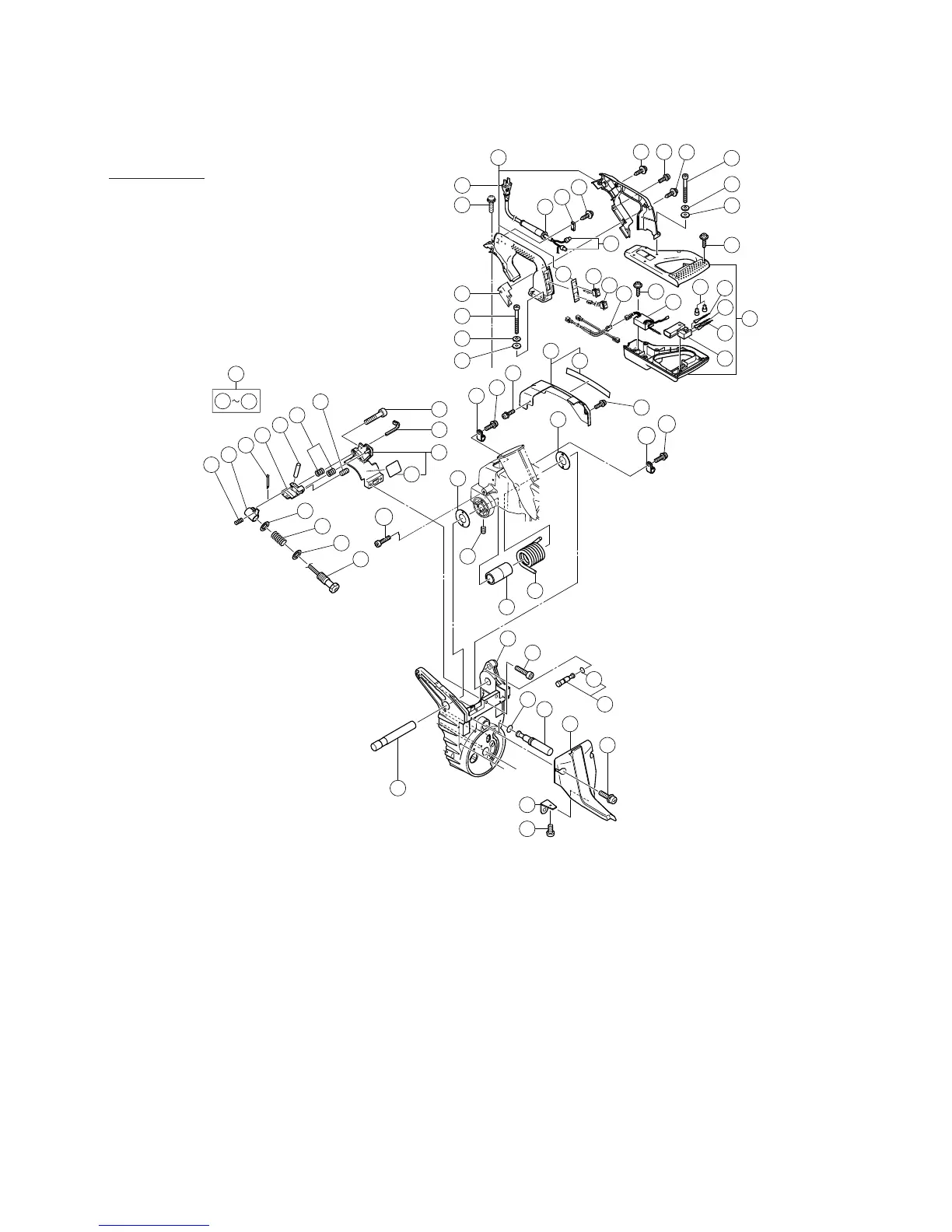

Fig. 46
Fig. 46
1. Removal of Laser Module (A) [14]
(a) Remove the Tapping Screw (W/Flange) D4 x 16 (Black) [213] to remove Cord Cover (B) [204].
(b) Disconnect the connector that connects Cord (B) [218] to Laser Module (A) [14].
(c) Remove the two Machine Screws (W/Washers) M4 x 16 [265] to remove the Gear Case Cover Ass'y [266].
(d) Remove the two Machine Screws (W/Washers) M4 x 12 (Black) [17] and two Nylon Clips [247] to disconnect
the internal wire of Laser Module (A) [14].
(e) Remove the two Machine Screws (W/Washers) M5 x 16 [50] and remove the Dust Guide Ass'y [49] from the
Hinge Ass'y [43].
