English
30
8. Bevel angle fine adjustment
(1) Grip the handle on the motor head and position it at the bevel angle you need.
Temporarily tighten the clamp lever.
CAUTION: If not tightened firmly enough the motor head might suddenly move
or slip, causing injuries. Be sure to tighten the motor head section
enough so it will not move.
(2) When making fine adjustments of the bevel angle, turn the knob (B) while supporting
the handle with your hand.
NOTE: Turning knob (B) clockwise, allows fine adjustment of the main unit to the
left (as seen from front).
Turning knob (B) counterclockwise, allows fine adjustment of the main unit
to the right (as seen from front).
(3) After adjusting to the desired angle, tighten the clamp lever and clamp the motor
head.
CAUTION: Always check that the clamp lever is secured and the motor head is
clamped. If you attempt angle cutting without clamping the motor
head, then the motor head might shift unexpectedly causing injuries.

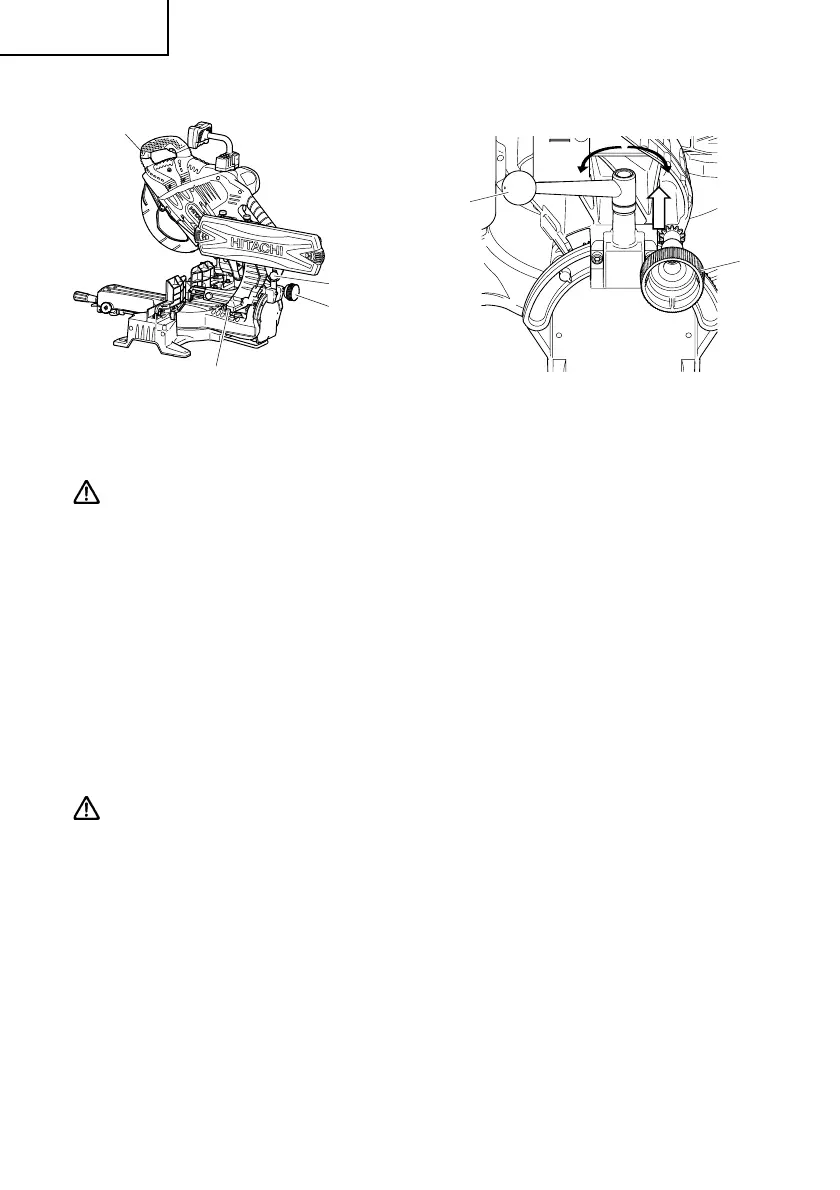

Fig. 31 Fig. 32
Handle
Knob (B)
8 mm bolt (B)
Clamp lever
Knob (B)
Clamp lever
Tighten
Loosen
