APPLICATIONS
Wood and aluminum sash.
PREPARATION BEFORE OPERATION
Make the following preparations before operating the power tool:
1. Remove all packing materials attached or connected to the tool before attempting to operate
it.
2. Installation
11-1/18"
(282 mm)
11/32" (9 mm)
4 holes
10-1/16" (255.5 mm)
12-7/8"
(327 mm)
1" (25 mm) thick bench
Work bench 5/16" (8 mm) nut
5/16" (8mm) boltBase

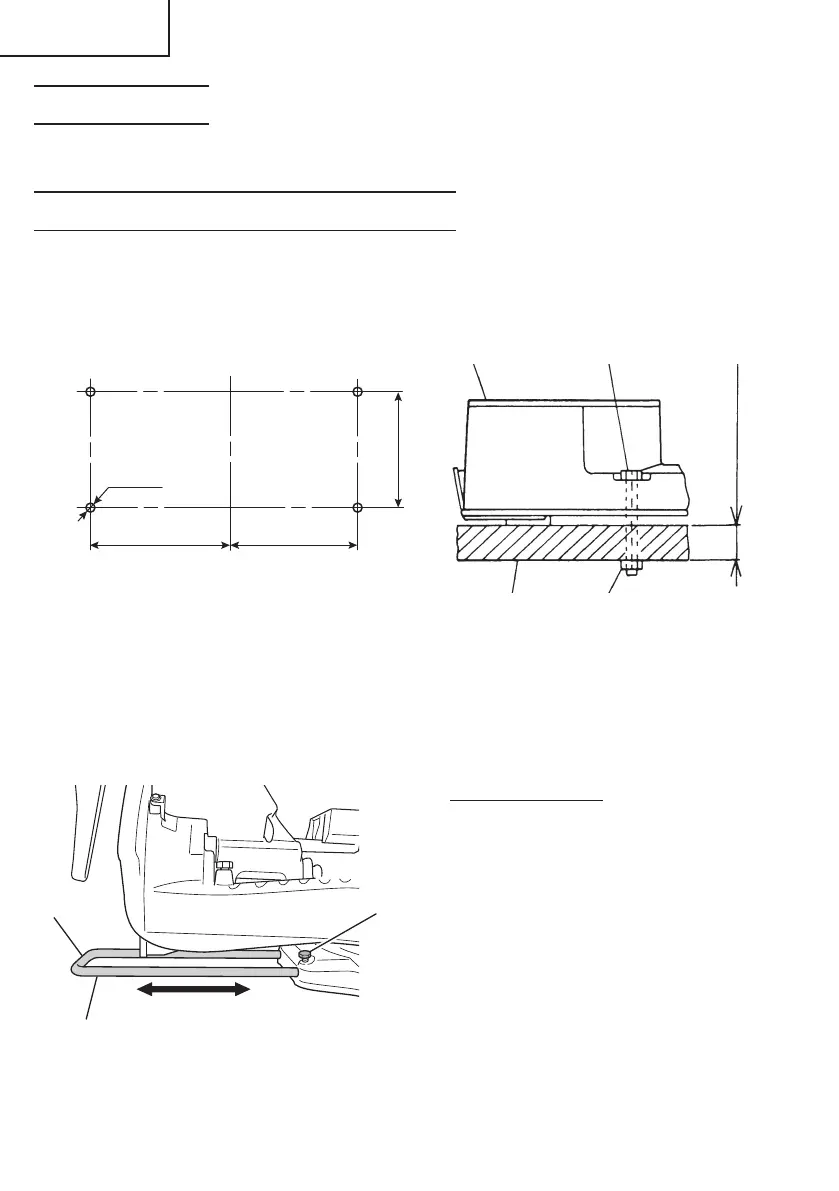

Fig. 4
Attach the power tool to a level, horizontal work bench in accordance with Fig. 4.
Select 5/16" (8 mm) diameter bolts suitable in length for the thickness of the work bench.
Bolt length should be at least 1-9/16" (40 mm) plus the thickness of the work bench.
For example, use 2-9/16" (65 mm) or larger bolts for a 1" (25 mm) thick work bench.
The holder attached to the rear of the base helps stabilize the power tool.
Holder adjustment:
Loosen the 6 mm bolt with the 10 mm box
wrench.
Adjust the holder until its bottom surface
contacts the work bench surface.
After adjustment, fi rmly tighten the 6 mm
bolt.
6 mm
Bolt
Move
Adjust the holder until its bottom surface contacts the
work bench surface.
Fig. 5
Holder
