25
English

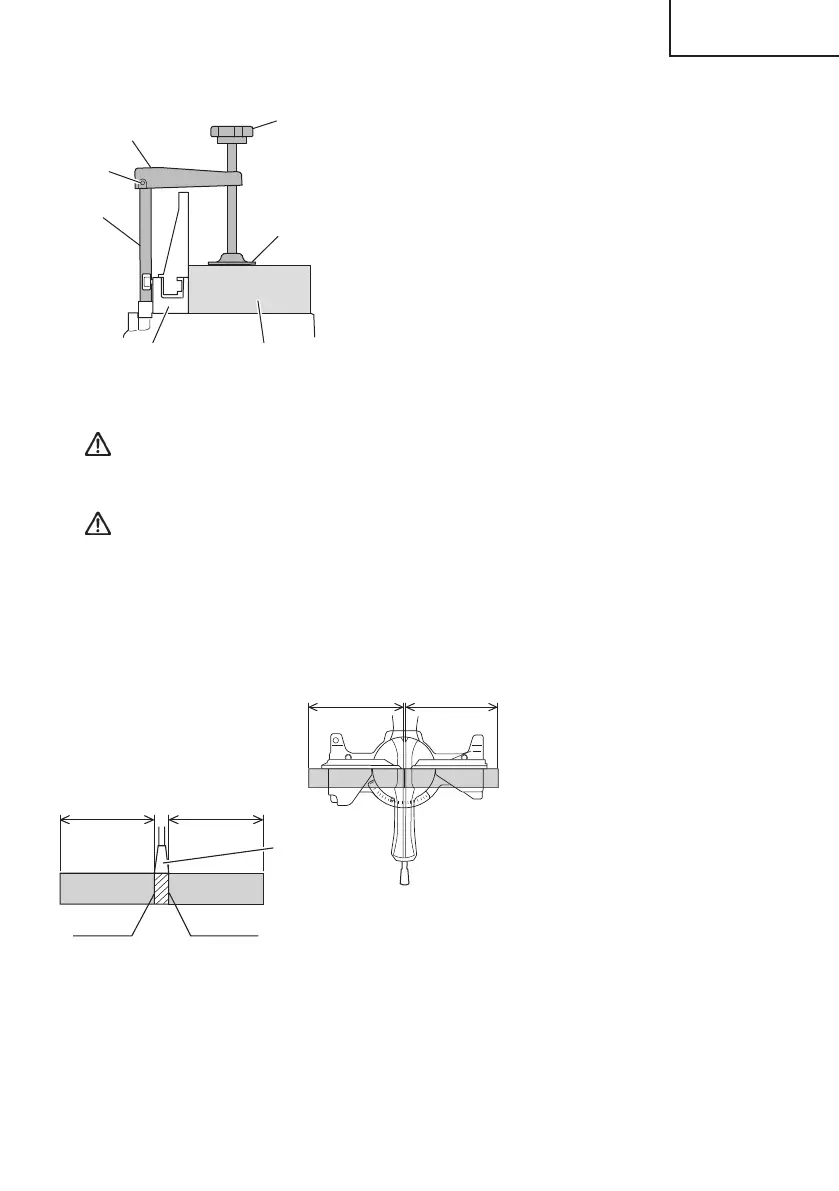

2. Using the Vise Assembly (Standard accessory)
(1) The vise assembly can be mounted on the base.
(2) Turn the upper knob and securely fi x the workpiece
in position (Fig. 23).
WARNING: Always fi rmly clamp or vise to secure the workpiece to the fence;
otherwise the workpiece might be thrust from the table and cause
bodily harm.
CAUTION: Always confi rm that the motor head (see Fig. 1) does not contact
the vise assembly when it is lowered for cutting. If there is any
danger that it may do so, loosen the Hex. socket set screw and
move the vise assembly to a position where it will not contact the
saw blade.
3. Cutting Operation
(1) As shown in Fig. 24 the width
of the saw blade is the width
of the cut. Therefore, slide the
workpiece to the right (viewed
from the operator’s position)
when length ⓑ is desired, or
to the left when length ⓐ is
desired.
If a laser marker is used, align
the laser line with the left side
of the saw blade, and then
align the ink line with the laser
line.
(2) Once the saw blade reaches
maximum speed, push the
handle down carefully until
the saw blade approaches the
workpiece.
(3) Once the saw blade contacts the workpiece, push the handle down gradually to cut into the
workpiece.
Hex. socket
set screw
Knob
Vise shaft
Vise plate
Screw holder
Fig. 23
Fence Workpiece
Fig. 24
Adjusting line
ⓐⓑ
(Front view)
Marking
(pre-marked)
Marking
(pre-marked)
ⓐ
ⓑ
ⓐ
ⓑ
Saw blade
