Hitachi C 12RSH2 User Manual

34
English

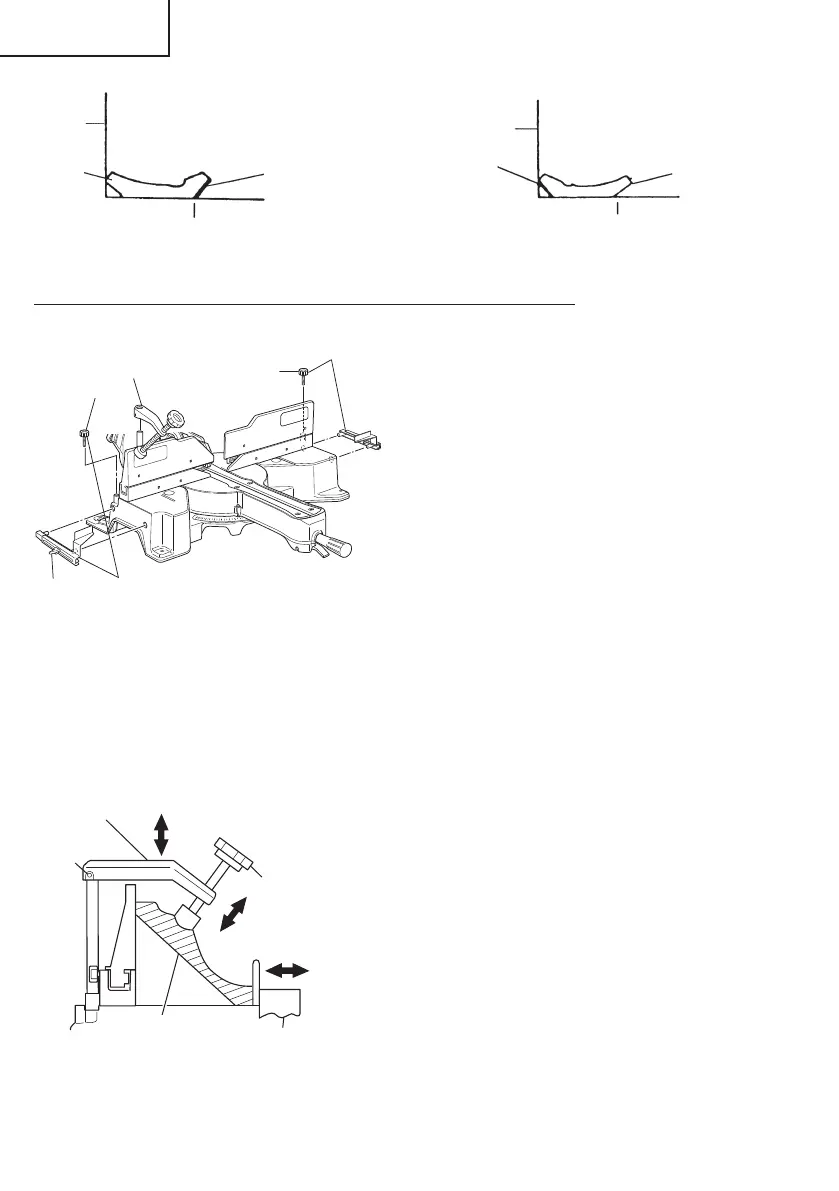

Fig. 44
Fence
Ⓐ
Ⓑ
Table on base
Fig. 43
Fence
Ⓐ
Ⓑ
Table on base
Cutting method of crown molding without tilting the saw blade
(1) Crown molding Stopper (L) and (R)
(optional accessories) allow easier cuts
of crown molding without tilting the saw
blade. Install them in the base both-
sides side to be shown in Fig. 45-a. After
inserting Tighten the 6mm knob bolts to
secure the crown molding Stoppers.
[Optional accessories used]
• Crown molding Vise Ass’y (Include
Crown molding Stopper (L))
• Crown molding Stopper (L)
• Crown molding Stopper (R)
(2) The crown molding vise (B) (Optional accessory) can be mounted on the base. It can
unite with the slope of the crown molding and vice can be pressed down.
Then turn the upper knob, as necessary, to securely attach the crown molding in
position. To raise or lower the vise assembly, fi rst loosen the hex. socket set screw.
After adjusting the height, turn the
upper knob, as necessary, to securely
attach the crown molding in position.
(See Fig. 45-b)
Fig. 45-a
6mm knob bolt
6mm wing
bolt
Crown molding stopper (R)
(optional accessories)
Crown molding vise ass’y
(optional accessories)
6mm knob
bolt
Crown molding stopper (L)
(Optional accessories)
Fig. 45-b
Crown molding vise ass’y
(Optional accessories)
Hex. socket
set screw
Knob
Crown molding
Crown molding stopper (L)
Crown molding stopper (R)
(Optional accessories)
