-34-
2. Wiring diagram
Carefully ensure that wiring is accomplished as illustrated below. As incorrect wiring will result in lack of
rotation, reverse rotation or other malfunctions, close attention is absolutely necessary.
WARNING: Be sure to turn off the two Switches (W/Cover) [167] on the side of the Housing Ass'y
[155] (Model C 8FSHE) and unplug the power cord plug from the receptacle before
replacing the Laser Marker [107] and the Switching Power Supply Ass’y [165]. Do not
disconnect the connector that connects the Laser Marker [107] with the Switching
Power Supply Ass’y [165] while the Laser Marker [107] is lighting. Otherwise, the Laser
Marker [107] may be damaged due to surge (electricity stored in the Switching Power
Supply Ass’y [165]). Do not stare into beam while the Laser Marker [107] is lighting.

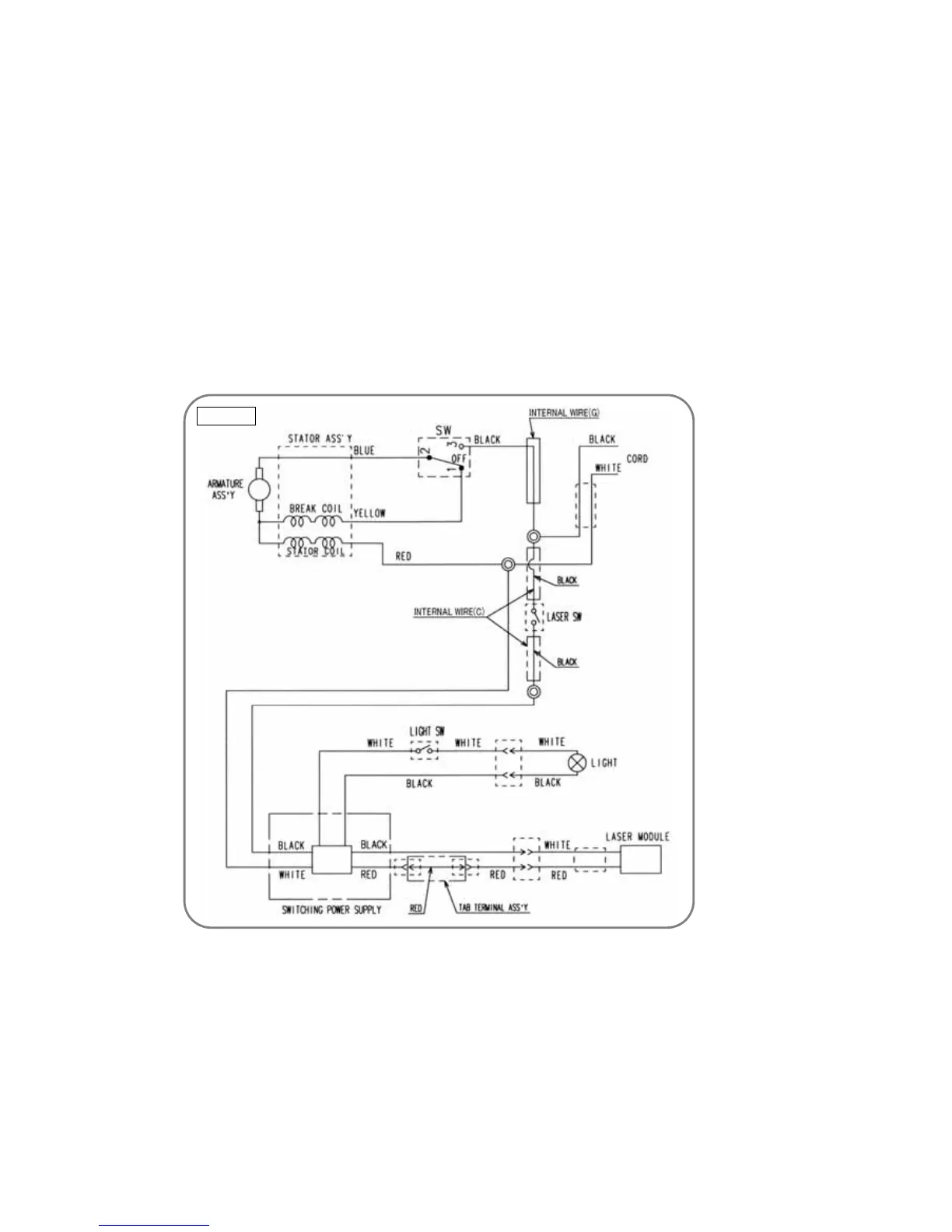

(1) Wiring diagram
Model C 8FSHE for the U.S.A. and Canada
Fig. 48-a
To Next Page
