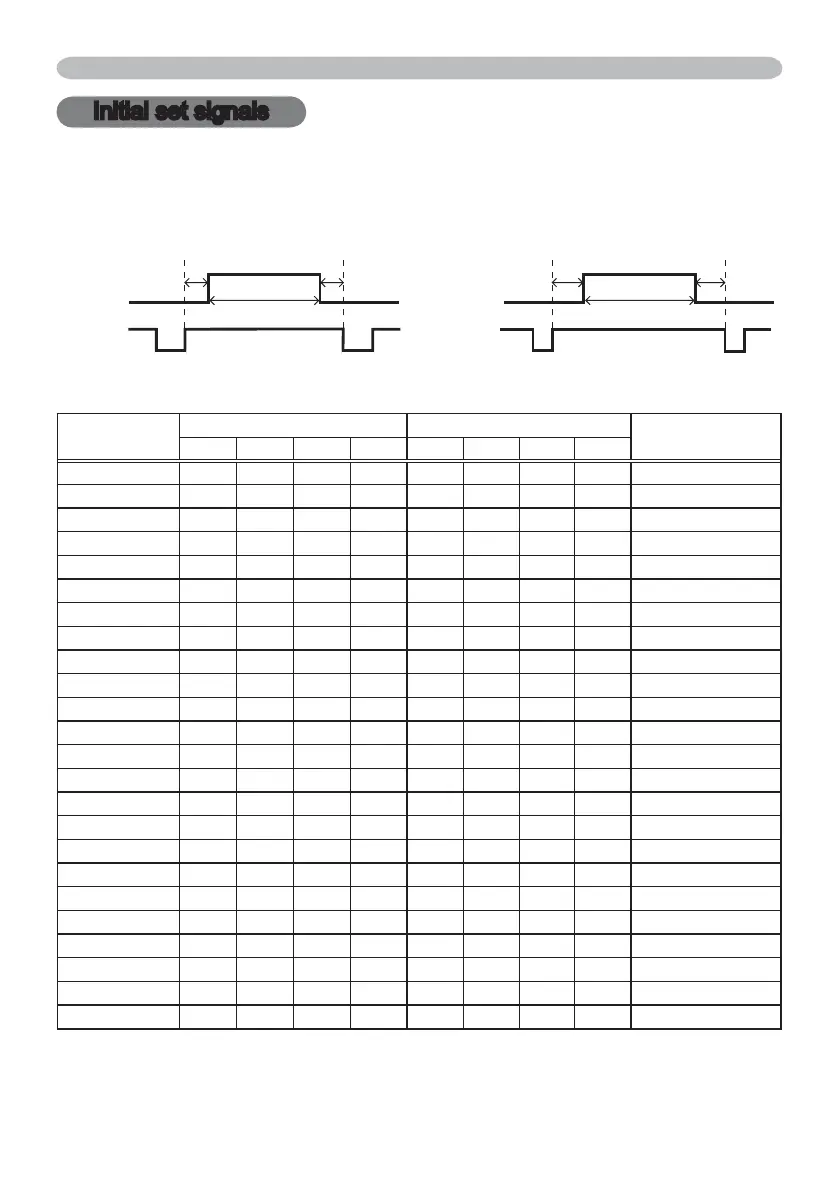

Initial set signals

7KHIROORZLQJVLJQDOVDUHXVHGIRUWKHLQLWLDOVHWWLQJV7KHVLJQDOWLPLQJRIVRPH

3&PRGHOVPD\EHGLIIHUHQW,QVXFKFDVHDGMXVWWKHLWHPV9326,7,21DQG+

326,7,21LQWKH,0$*(PHQX

Resolution

(H x V)

+RUL]RQWDOVLJQDOWLPLQJȝV Vertical signal timing (lines)

Signal mode

(A) % & ' (a) (b) (c) (d)

720 x 400

2.0 3.0 20.3 1.0 3 42 400 1 TEXT

640 x 480 3.8 1.9 25.4 0.6 2 33 480 10 VGA (60Hz)

640 x 480 1.3 4.1 20.3 0.8 3 28 480 9 VGA (72Hz)

640 x 480 2.0 3.8 20.3 0.5 3 16 480 1 VGA (75Hz)

640 x 480 1.6 2.2 17.8 1.6 3 25 480 1 VGA (85Hz)

800 x 600 2.0 3.6 22.2 0.7 2 22 600 1 SVGA (56Hz)

800 x 600 3.2 2.2 20.0 1.0 4 23 600 1 SVGA (60Hz)

800 x 600 2.4 1.3 16.0 1.1 6 23 600 37 SVGA (72Hz)

800 x 600 1.6 3.2 16.2 0.3 3 21 600 1 SVGA (75Hz)

800 x 600 1.1 2.7 14.2 0.6 3 27 600 1 SVGA (85Hz)

832 x 624 1.1 3.9 14.5 0.6 3 39 624 1 Mac 16" mode

1024 x 768 2.1 2.5 15.8 0.4 6 29 768 3 XGA (60Hz)

1024 x 768 1.8 1.9 13.7 0.3 6 29 768 3 XGA (70Hz)

1024 x 768 1.2 2.2 13.0 0.2 3 28 768 1 XGA (75Hz)

1024 x 768 1.0 2.2 10.8 0.5 3 36 768 1 XGA (85Hz)

1152 x 864 1.2 2.4 10.7 0.6 3 32 864 1 1152 x 864 (75Hz)

1280 x 768 1.7 2.5 16.0 0.8 3 23 768 1 W-XGA (60Hz)

1280 x 800 1.6 2.4 15.3 0.8 3 24 800 1 W-XGA (60Hz)

1280 x 960 1.0 2.9 11.9 0.9 3 36 960 1 W-XGA (60Hz)

1280 x 1024 1.0 2.3 11.9 0.4 3 38 1024 1 SXGA (60Hz)

1280 x 1024 1.1 1.8 9.5 0.1 3 38 1024 1 SXGA (75Hz)

1280 x 1024 1.0 1.4 8.1 0.4 3 44 1024 1 SXGA (85Hz)

1400 x 1050 1.2 2.0 11.4 0.7 3 33 1050 1 SXGA+ (60Hz)

1600 x 1200 1.2 1.9 9.9 0.4 3 46 1200 1 UXGA (60Hz)

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Active video (C)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Active video (c)
