5
SECURIT
POWER
TEMP
LAMP
MENU
INPUT
STANDBY/ON
(1) (3)(2)
(4)
(6)
(5)

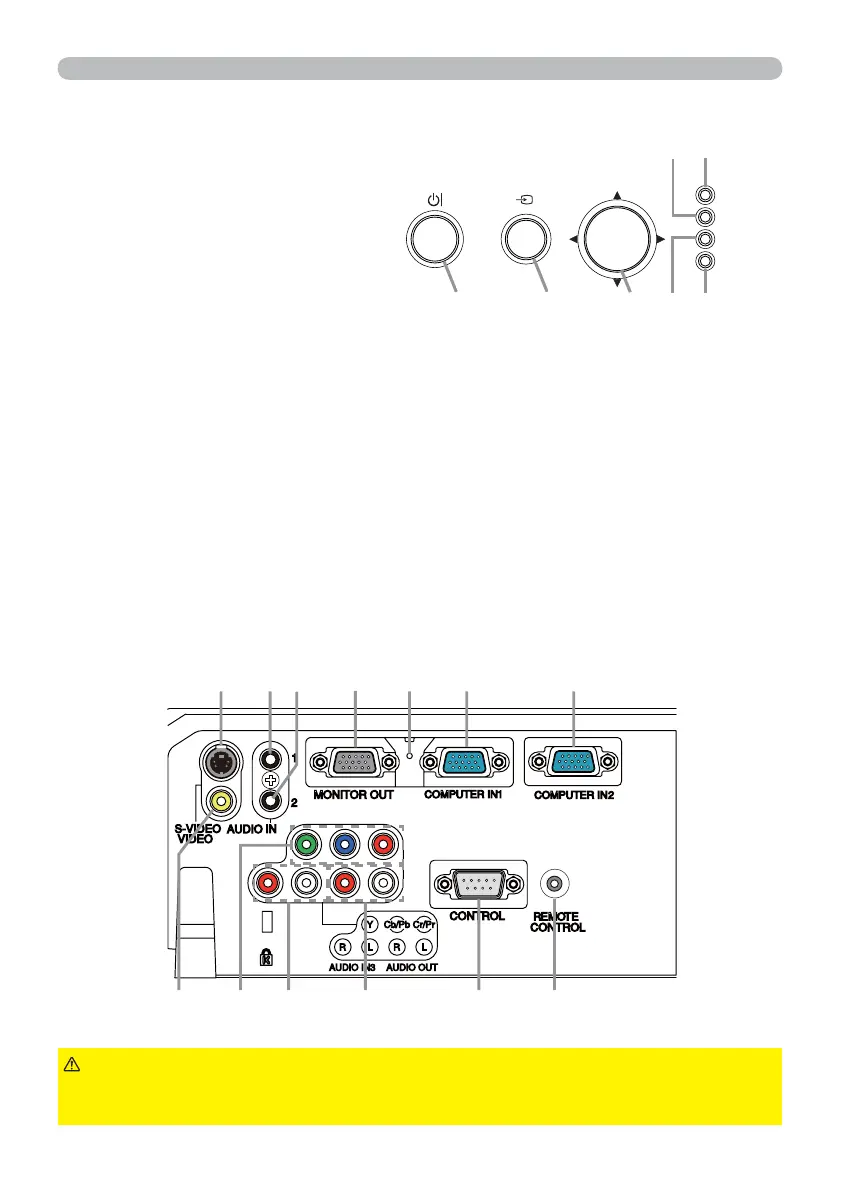

Part names
Control panel
(1) STANDBY/ON button (
14)
(2) INPUT button (
15, 22)
(3) MENU button (
22)
It consists of four cursor buttons.
(4) POWER indicator (
11, 14, 59)
(5) TEMP indicator (
59)
(6) LAMP indicator (
59)
(7) SECURITY indicator (
59)
Rear panel (
9)
(1) AUDIO IN1 port
(2) AUDIO IN2 port
(3) COMPUTER IN1 port
(4) COMPUTER IN2 port
(5) MONITOR OUT port
(6) Shutdown switch (
61)
(7) CONTROL port
(8) COMPONENT
(Y, Cb/Pb, Cr/Pr) ports
ŹUse the shutdown switch only when the projector is not
turned off by normal procedure, since pushing this switch stops operation of the
projector without cooling it down.
CAUTION
(9) VIDEO port
(10) S-VIDEO port
(11) AUDIO IN3 (R, L) ports
(12) AUDIO OUT (R, L) ports
(13) REMOTE CONTROL port
For connecting the laser and
wired remote control (optional)
(
9, 64).
(7)
(2) (3)
(9)
(10)
(13)(11)
(4)(5) (6)(1)
(8) (12)
(7)
