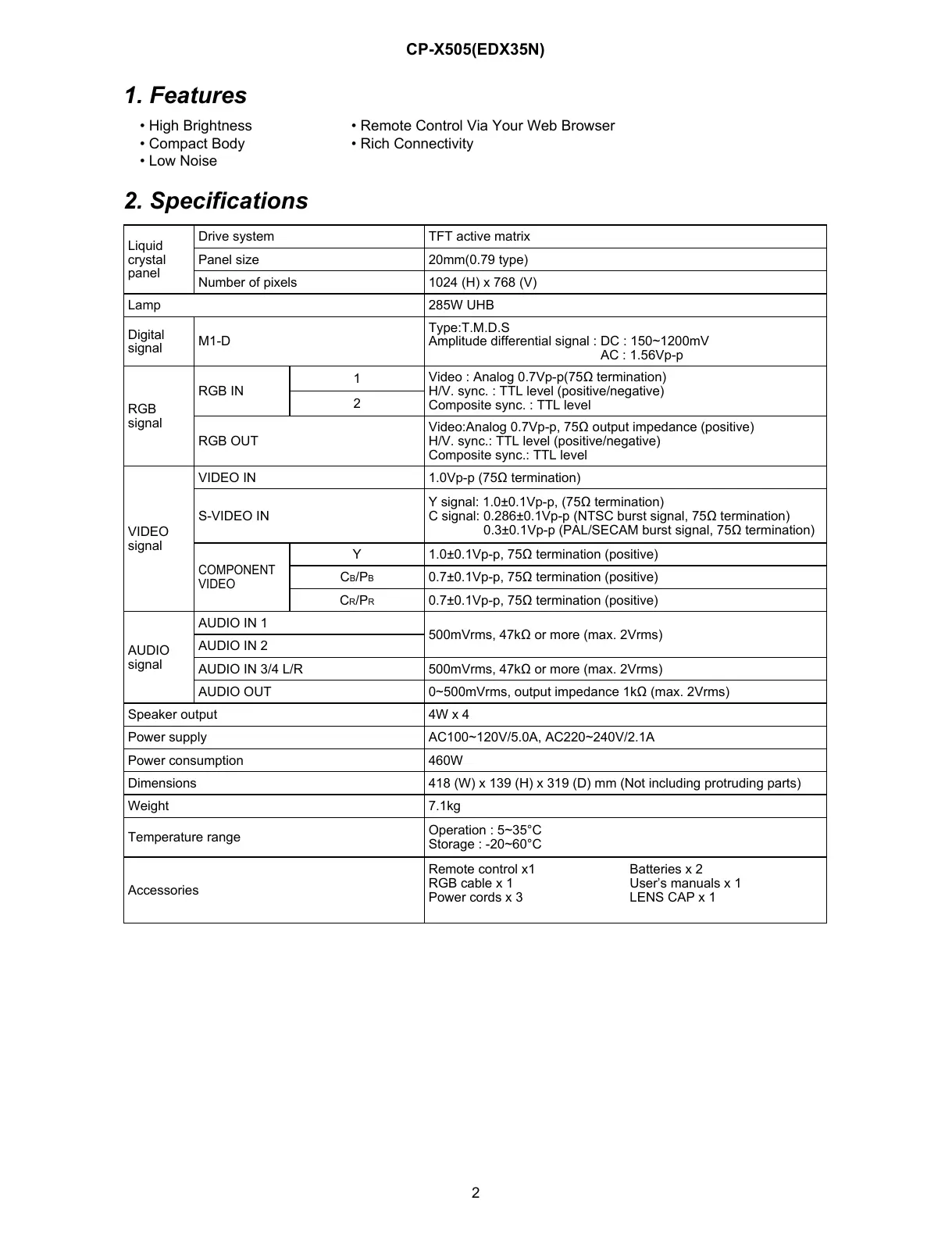

Hitachi CP-X505 Service Manual

2
CP-X505(EDX35N)
1. Features
• High Brightness • Remote Control Via Your Web Browser
• Compact Body • Rich Connectivity
• Low Noise
2. Specifications
Liquid
crystal
panel
Drive system TFT active matrix
Panel size 20mm(0.79 type)
Number of pixels 1024 (H) x 768 (V)
Lamp 285W UHB
Digital
signal
M1-D
Type:T.M.D.S
Amplitude differential signal : DC : 150~1200mV
AC : 1.56Vp-p
RGB
signal
RGB IN
1
Video : Analog 0.7Vp-p(75Ω termination)
H/V. sync. : TTL level (positive/negative)
Composite sync. : TTL level
2
RGB OUT
Video:Analog 0.7Vp-p, 75Ω output impedance (positive)
H/V. sync.: TTL level (positive/negative)
Composite sync.: TTL level
VIDEO
signal
VIDEO IN 1.0Vp-p (75Ω termination)
S-VIDEO IN
Y signal: 1.0±0.1Vp-p, (75Ω termination)
C signal: 0.286±0.1Vp-p (NTSC burst signal, 75Ω termination)
0.3±0.1Vp-p (PAL/SECAM burst signal, 75Ω termination)
COMPONENT
VIDEO
Y 1.0±0.1Vp-p, 75Ω termination (positive)
C
B
/P
B
0.7±0.1Vp-p, 75Ω termination (positive)
C
R
/P
R
0.7±0.1Vp-p, 75Ω termination (positive)
AUDIO
signal
AUDIO IN 1
500mVrms, 47kΩ or more (max. 2Vrms)
AUDIO IN 2
AUDIO IN 3/4 L/R 500mVrms, 47kΩ or more (max. 2Vrms)
AUDIO OUT 0~500mVrms, output impedance 1kΩ (max. 2Vrms)
Speaker output 4W x 4
Power supply AC100~120V/5.0A, AC220~240V/2.1A
Power consumption 460W
Dimensions 418 (W) x 139 (H) x 319 (D) mm (Not including protruding parts)
Weight 7.1kg
Temperature range
Operation : 5~35°C
Storage : -20~60°C
Accessories
Remote control x1
RGB cable x 1
Power cords x 3
Batteries x 2
User’s manuals x 1
LENS CAP x 1
