Hitachi CP-X505 Service Manual

22
CP-X505(EDX35N)

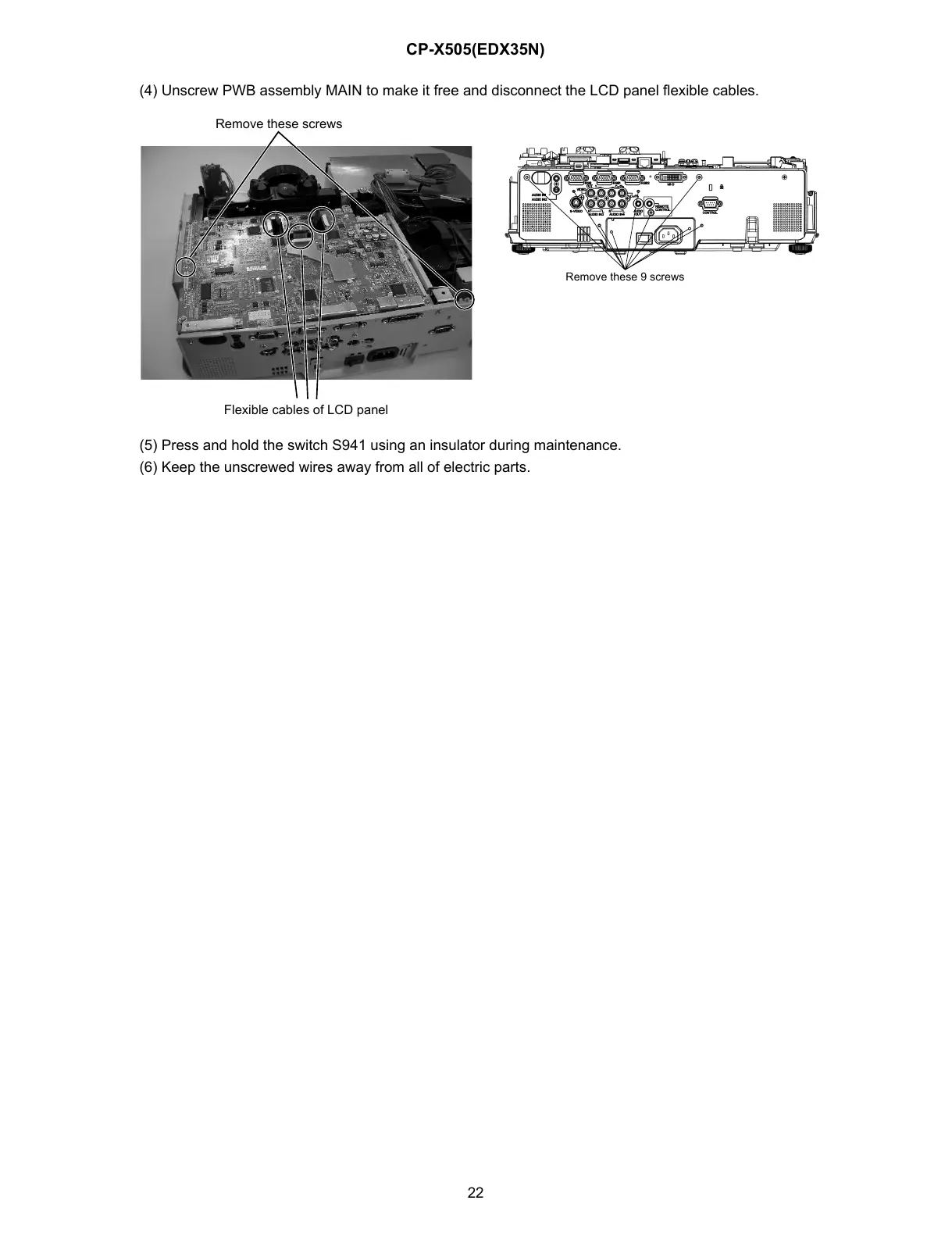

(4) Unscrew PWB assembly MAIN to make it free and disconnect the LCD panel flexible cables.
(5) Press and hold the switch S941 using an insulator during maintenance.
(6) Keep the unscrewed wires away from all of electric parts.
Remove these screws
Flexible cables of LCD panel
Remove these 9 screws
