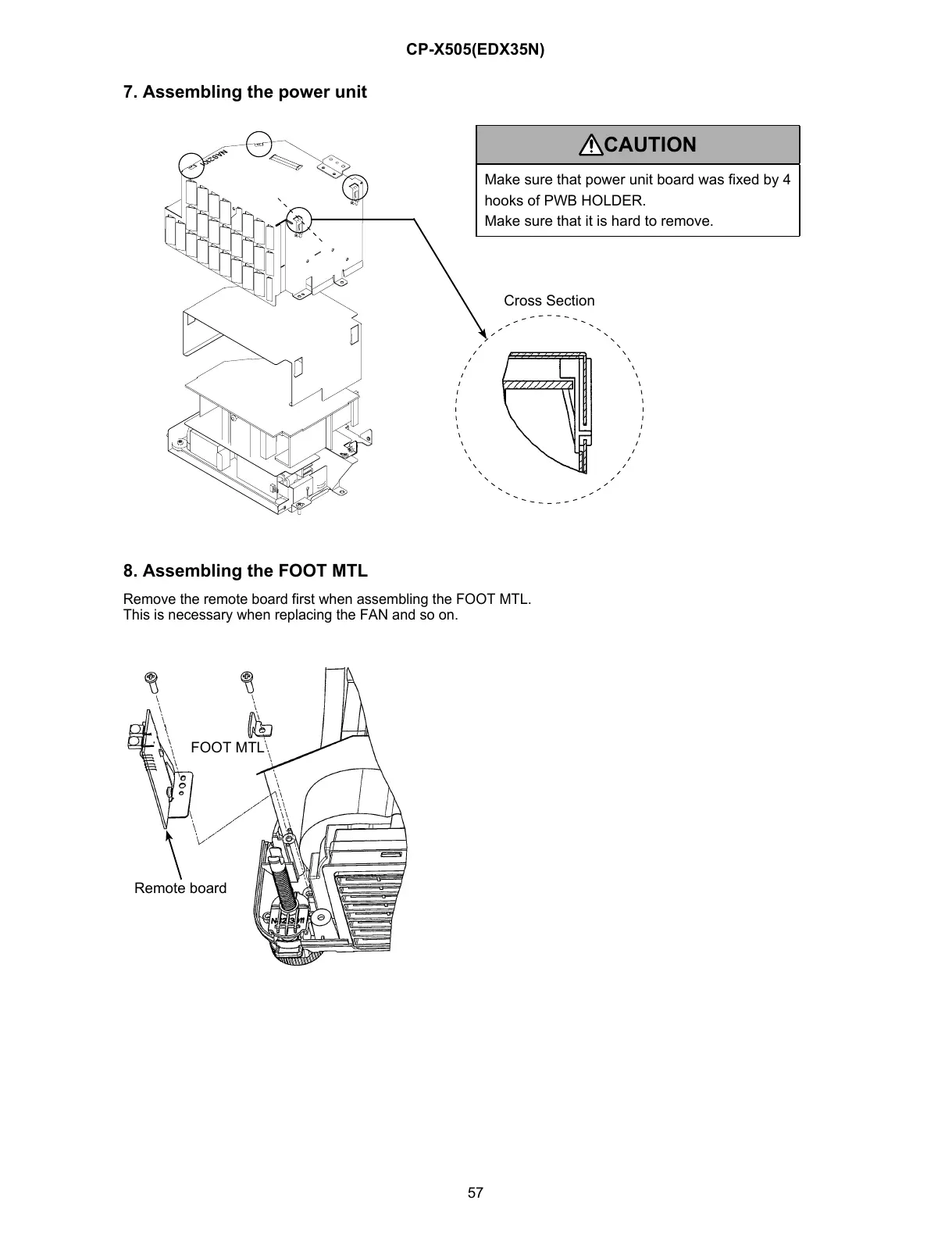

CP-X505(EDX35N)
7. Assembling the power unit
FOOT MTL
8. Assembling the FOOT MTL
Remove the remote board first when assembling the FOOT MTL.
This is necessary when replacing the FAN and so on.
CAUTION
Make sure that power unit board was
fi
xed by 4
hooks of PWB HOLDER.
Make sure that it is hard to remove.
