Hitachi CP-X505 Service Manual

61

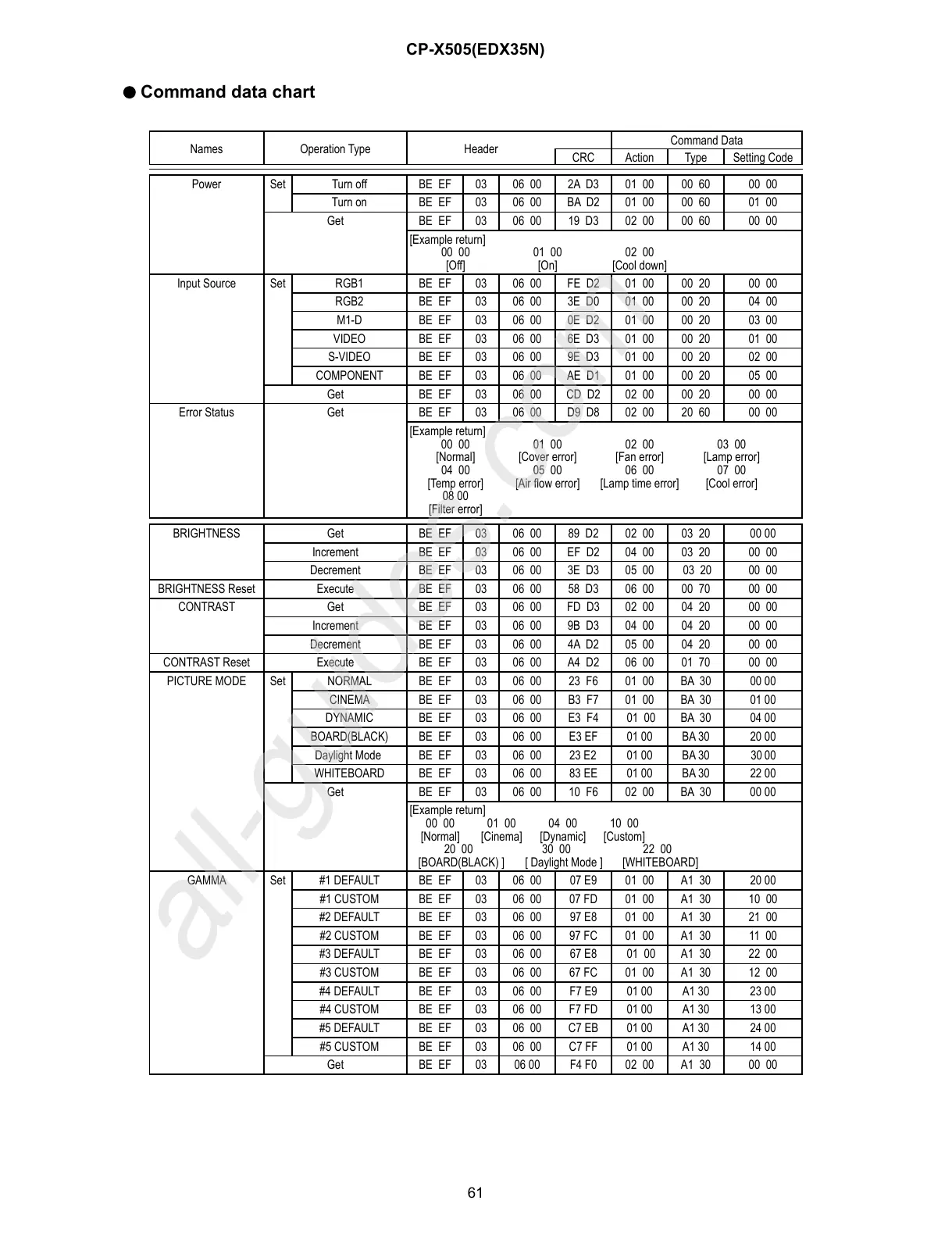

CP-X505(EDX35N)
Command data chart
Names Operation Type Header
Command Data
CRC Action Type Setting Code
Power Set Turn off BE EF 03 06 00 2A D3 01 00 00 60 00 00
Turn on BE EF
03 06 00 BA D2 01 00 00 60 01 00
Get BEEF 03 0600 19D3 0200 0060 0000
[Example return]
00 00 01 00 02 00
[Off] [On] [Cool down]
Input Source
Set RGB1 BEEF 03 0600 FED2 0100 0020 0000
RGB2 BE EF 03 06 00 3E D0 01 00 00 20 04 00
M1-D BEEF0306000ED201000020 0300
VIDEO BEEF0306006ED301000020 0100
S-VIDEO BE EF 03 06 00 9E D3 01 00 00 20 02 00
COMPONENT BEEF 03 0600 AED1 0100 0020 0500
Get BEEF 03 0600 CDD2 0200 0020 0000
Error Status
Get BEEF 03 0600 D9D8 0200 2060 0000
[Example return]
00 00 01 00 02 00 03 00
[Normal] [Cover error] [Fan error] [Lamp error]
04 00 05 00 06 00 07 00
[Temp error] [Air flow error] [Lamp time error] [Cool error]
08 00
09 00 10 00
[Filter error] (Filter missing error)(Inner Sencer error)
BRIGHTNESS Get BEEF 03 0600 89D2 0200 0320 0000
Increment BE EF 03 06 00 EF D2 04 00 03 20 00 00
Decrement BE EF 03 06 00 3E D3 05 00 03 20 00 00
BRIGHTNESS Reset
Execute BE EF 03 06 00 58 D3 06 00 00 70 00 00
CONTRAST Get BE EF 03 06 00 FD D3 02 00 04 20 00 00
Increment BE EF 03 06 00 9B D3 04 00 04 20 00 00
Decrement BE EF 03 06 00 4A D2 05 00 04 20 00 00
CONTRAST Reset
Execute BE EF 03 06 00 A4 D2 06 00 01 70 00 00
PICTURE MODE
Set NORMAL BE EF 03 06 00 23 F6 01 00 BA 30 00 00
CINEMA BE EF 03 06 00 B3 F7 01 00 BA 30 01 00
DYNAMIC BE EF 03 06 00 E3 F4 01 00 BA 30 04 00
BOARD(BLACK) BE EF 03 06 00 E3 EF 01 00 BA 30 20 00
Daylight Mode BE EF 03 06 00 23 E2 01 00 BA 30 30 00
WHITEBOARD BE EF 03 06 00 83 EE 01 00 BA 30 22 00
Get BEEF 03 0600 10F6 0200 BA30 0000
[Example return]
00 00 01 00 04 00 10 00
[Normal] [Cinema] [Dynamic] [Custom]
20 00 30 00 22 00
[BOARD(BLACK) ] [ Daylight Mode ] [WHITEBOARD]
GAMMA Set #1 DEFAULT BE EF 03 06 00 07 E9 01 00 A1 30 20 00
#1 CUSTOM BE EF
03 06 00 07 FD 01 00 A1 30 10 00
#2 DEFAULT BE EF
03 06 00 97 E8 01 00 A1 30 21 00
#2 CUSTOM BE EF
03 06 00 97 FC 01 00 A1 30 11 00
#3 DEFAULT BE EF
03 06 00 67 E8 01 00 A1 30 22 00
#3 CUSTOM BE EF
03 06 00 67 FC 01 00 A1 30 12 00
#4 DEFAULT BE EF
03 06 00 F7 E9 01 00 A1 30 23 00
#4 CUSTOM BE EF
03 06 00 F7 FD 01 00 A1 30 13 00
#5 DEFAULT BE EF
03 06 00 C7 EB 01 00 A1 30 24 00
#5 CUSTOM BE EF
03 06 00 C7 FF 01 00 A1 30 14 00
Get BEEF 03 0600 F4F0 0200 A130 0000
