Hitachi CP-X505 Service Manual

64

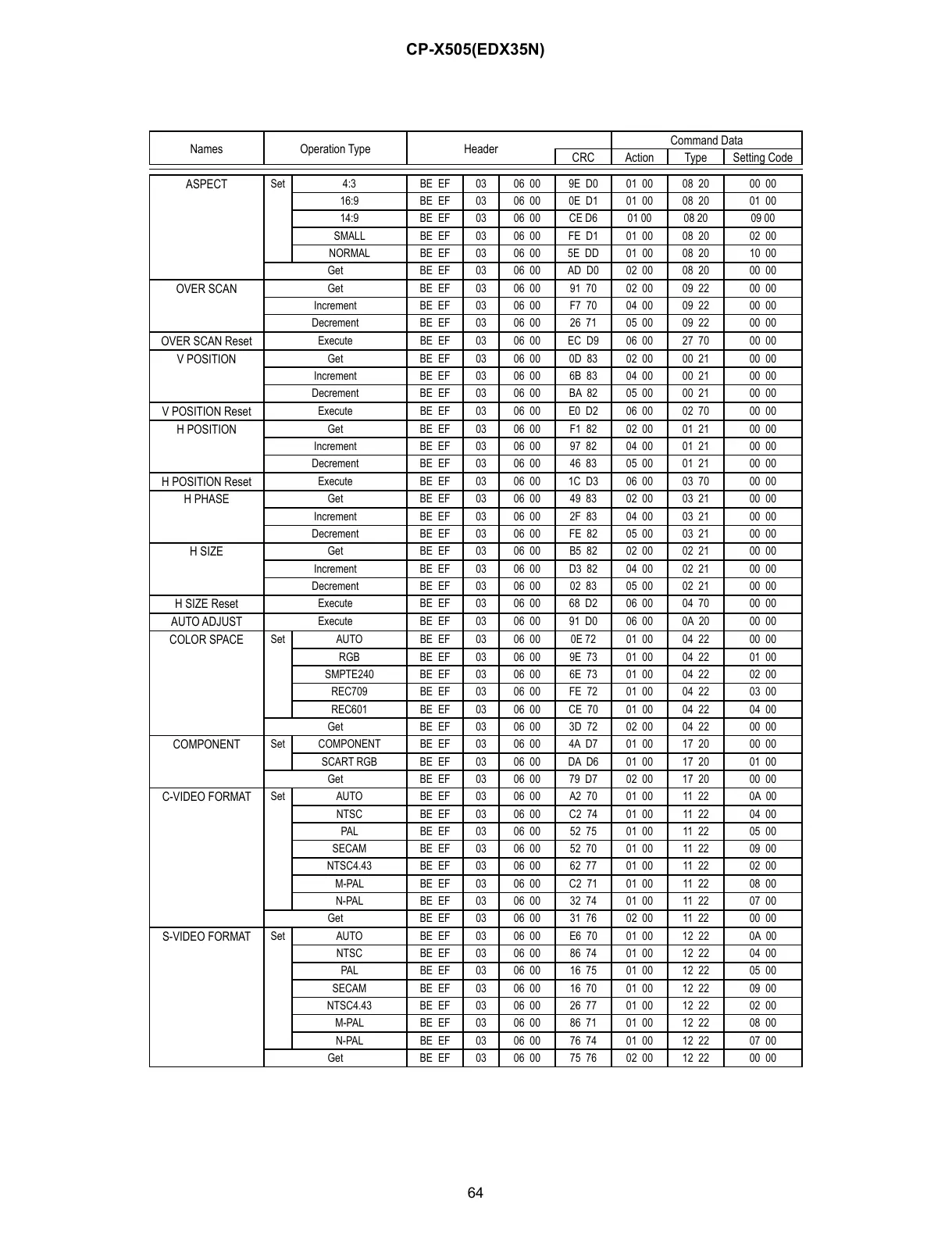

CP-X505(EDX35N)
Names Operation Type Header
Command Data
CRC Action Type Setting Code
ASPECT
Set 4:3 BE EF 03 06 00 9E D0 01 00 08 20 00 00
16:9 BEEF 03 0600 0ED1 0100 0820 0100
14:9 BE EF 03 06 00 CED6 0100 0820 0900
SMALL BE EF 03 06 00 FE D1 01 00 08 20 02 00
NORMAL BE EF 03 06 00 5E DD 01 00 08 20 10 00
Get BEEF 03 0600 ADD0 0200 0820 0000
OVER SCAN
Get BEEF 03 0600 9170 0200 0922 0000
Increment BE EF 03 06 00 F7 70 04 00 09 22 00 00
Decrement BE EF 03 06 00 26 71 05 00 09 22 00 00
OVER SCAN Reset
Execute BE EF 03 06 00 EC D9 06 00 27 70 00 00
V POSITION
Get BEEF 03 0600 0D83 0200 0021 0000
Increment BE EF 03 06 00 6B 83 04 00 00 21 00 00
Decrement BE EF 03 06 00 BA 82 05 00 00 21 00 00
V POSITION Reset
Execute BE EF 03 06 00 E0 D2 06 00 02 70 00 00
H POSITION
Get BEEF 03 0600 F182 0200 0121 0000
Increment BE EF 03 06 00 97 82 04 00 01 21 00 00
Decrement BE EF 03 06 00 46 83 05 00 01 21 00 00
H POSITION Reset
Execute BE EF 03 06 00 1C D3 06 00 03 70 00 00
H PHASE
Get BEEF 03 0600 4983 0200 0321 0000
Increment BE EF 03 06 00 2F 83 04 00 03 21 00 00
Decrement BE EF 03 06 00 FE 82 05 00 03 21 00 00
H SIZE
Get BEEF 03 0600 B582 0200 0221 0000
Increment BE EF 03 06 00 D3 82 04 00 02 21 00 00
Decrement BE EF 03 06 00 02 83 05 00 02 21 00 00
H SIZE Reset
Execute BE EF 03 06 00 68 D2 06 00 04 70 00 00
AUTO ADJUST
Execute BE EF 03 06 00 91 D0 06 00 0A 20 00 00
COLOR SPACE
Set AUTO BEEF 03 0600 0E72 0100 0422 0000
RGB BEEF 03 0600 9E73 0100 0422 0100
SMPTE240 BE EF 03 06 00 6E 73 01 00 04 22 02 00
REC709 BE EF 03 06 00 FE 72 01 00 04 22 03 00
REC601 BE EF 03 06 00 CE 70 01 00 04 22 04 00
Get BEEF 03 0600 3D72 0200 0422 0000
COMPONENT
Set COMPONENT BEEF 03 0600 4AD7 0100 1720 0000
SCART RGB BE EF
03 06 00 DA D6 01 00 17 20 01 00
Get BEEF 03 0600 79D7 0200 1720 0000
C-VIDEO FORMAT
Set AUTO BEEF 03 0600 A270 0100 1122 0A00
NTSC BE EF 03 06 00 C2 74 01 00 11 22 04 00
PAL BEEF 03 0600 5275 0100 1122 0500
SECAM BE EF 03 06 00 52 70 01 00 11 22 09 00
NTSC4.43 BE EF 03 06 00 62 77 01 00 11 22 02 00
M-PAL BEEF 03 0600 C271 0100 1122 0800
N-PAL BEEF 03 0600 3274 0100 1122 0700
Get BEEF 03 0600 3176 0200 1122 0000
S-VIDEO FORMAT
Set AUTO BEEF 03 0600 E670 0100 1222 0A00
NTSC BE EF 03 06 00 86 74 01 00 12 22 04 00
PAL BEEF 03 0600 1675 0100 1222 0500
SECAM BE EF 03 06 00 16 70 01 00 12 22 09 00
NTSC4.43 BE EF 03 06 00 26 77 01 00 12 22 02 00
M-PAL BEEF 03 0600 8671 0100 1222 0800
N-PAL BEEF 03 0600 7674 0100 1222 0700
Get BEEF 03 0600 7576 0200 1222 0000
