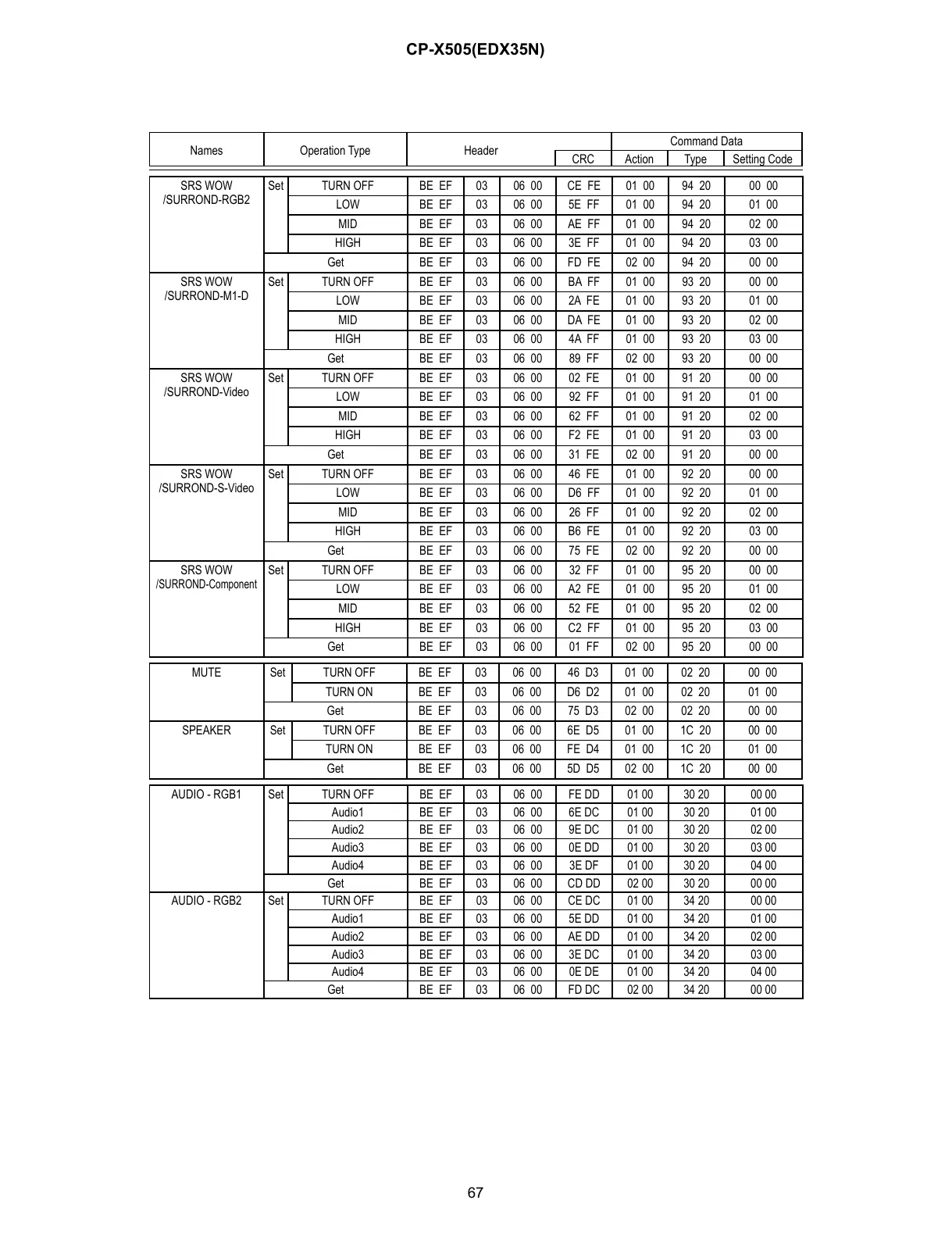

Hitachi CP-X505 Service Manual

67
CP-X505(EDX35N)
Names Operation Type Header
Command Data
CRC Action Type Setting Code
SRS WOW
/SURROND-RGB2
Set TURNOFF BEEF 03 0600 CEFE 0100 9420 0000
LOW BEEF 03 0600 5EFF 0100 9420 0100
MID BEEF 03 0600 AEFF 0100 9420 0200
HIGH BE EF 03 06 00 3E FF 01 00 94 20 03 00
Get BEEF 03 0600 FDFE 0200 9420 0000
SRS WOW
/SURROND-M1-D
Set TURNOFF BEEF 03 0600 BAFF 0100 9320 0000
LOW BEEF 03 0600 2AFE 0100 9320 0100
MID BEEF 03 0600 DAFE 0100 9320 0200
HIGH BE EF 03 06 00 4A FF 01 00 93 20 03 00
Get BEEF 03 0600 89FF 0200 9320 0000
SRS WOW
/SURROND-Video
Set TURNOFF BEEF 03 0600 02FE 0100 9120 0000
LOW BEEF 03 0600 92FF 0100 9120 0100
MID BEEF 03 0600 62FF 0100 9120 0200
HIGH BE EF 03 06 00 F2 FE 01 00 91 20 03 00
Get BEEF 03 0600 31FE 0200 9120 0000
SRS WOW
/SURROND-S-Video
Set TURNOFF BEEF 03 0600 46FE 0100 9220 0000
LOW BEEF 03 0600 D6FF 0100 9220 0100
MID BEEF 03 0600 26FF 0100 9220 0200
HIGH BE EF 03 06 00 B6 FE 01 00 92 20 03 00
Get BEEF 03 0600 75FE 0200 9220 0000
SRS WOW
/SURROND-Component
Set TURNOFF BEEF 03 0600 32FF 0100 9520 0000
LOW BEEF 03 0600 A2FE 0100 9520 0100
MID BEEF 03 0600 52FE 0100 9520 0200
HIGH BE EF 03 06 00 C2 FF 01 00 95 20 03 00
Get BEEF 03 0600 01FF 0200 9520 0000
MUTE Set TURNOFF BEEF 03 0600 46D3 0100 0220 0000
TURN ON BE EF
03 06 00 D6 D2 01 00 02 20 01 00
Get BEEF 03 0600 75D3 0200 0220 0000
SPEAKER Set TURN OFF BE EF 03 06 00 6E D5 01 00 1C 20 00 00
TURN ON BE EF
03 06 00 FE D4 01 00 1C 20 01 00
Get BEEF 03 0600 5DD5 0200 1C20 0000
AUDIO - RGB1 Set TURN OFF BE EF 03 06 00 FE DD 01 00 30 20 00 00
Audio1 BE EF 03 06 00 6E DC 01 00 30 20 01 00
Audio2 BE EF 03 06 00 9E DC 01 00 30 20 02 00
Audio3 BE EF 03 06 00 0E DD 01 00 30 20 03 00
Audio4 BE EF 03 06 00 3E DF 01 00 30 20 04 00
Get BE EF 03 06 00 CDDD 0200 3020 0000
AUDIO - RGB2
Set TURN OFF BE EF 03 06 00 CE DC 01 00 34 20 00 00
Audio1 BE EF 03 06 00 5E DD 01 00 34 20 01 00
Audio2 BE EF 03 06 00 AE DD 01 00 34 20 02 00
Audio3 BE EF 03 06 00 3E DC 01 00 34 20 03 00
Audio4 BE EF 03 06 00 0E DE 01 00 34 20 04 00
Get BE EF 03 06 00 FDDC 0200 3420 0000
