Hitachi CP-X505 Service Manual

70

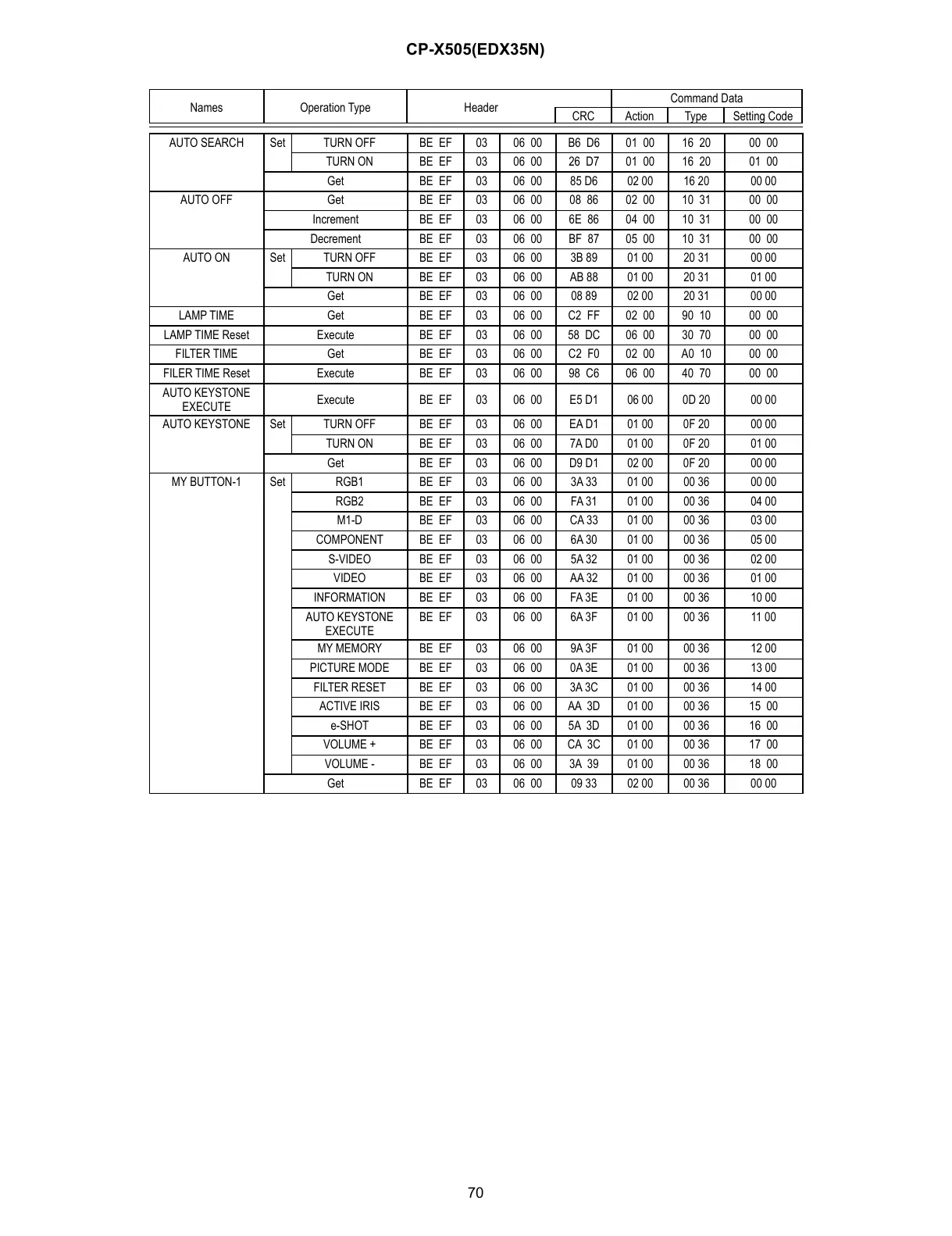

CP-X505(EDX35N)
Names Operation Type Header
Command Data
CRC Action Type Setting Code
AUTO SEARCH Set TURN OFF BE EF 03 06 00 B6 D6 01 00 16 20 00 00
TURN ON BE EF
03 06 00 26 D7 01 00 16 20 01 00
Get BE EF 03 06 00 85D6 0200 1620 0000
AUTO OFF
Get BEEF 03 0600 0886 0200 1031 0000
Increment BE EF 03 06 00 6E 86 04 00 10 31 00 00
Decrement BE EF 03 06 00 BF 87 05 00 10 31 00 00
AUTO ON
Set TURN OFF BE EF 03 06 00 3B 89 01 00 20 31 00 00
TURN ON BE EF
03 06 00 AB 88 01 00 20 31 01 00
Get BEEF030600088902002031 0000
LAMP TIME
Get BEEF 03 0600 C2FF 0200 9010 0000
LAMP TIME Reset
Execute BE EF 03 06 00 58 DC 06 00 30 70 00 00
FILTER TIME
Get BEEF 03 0600 C2F0 0200 A010 0000
FILER TIME Reset
Execute BE EF 03 06 00 98 C6 06 00 40 70 00 00
AUTO KEYSTONE
EXECUTE
Execute BE EF 03 06 00 E5 D1 06 00 0D 20 00 00
AUTO KEYSTONE
Set TURN OFF BE EF 03 06 00 EA D1 01 00 0F 20 00 00
TURN ON BE EF
03 06 00 7A D0 01 00 0F 20 01 00
Get BE EF 03 06 00 D9D1 0200 0F20 0000
MY BUTTON-1
Set RGB1 BE EF 03 06 00 3A33 0100 0036 0000
RGB2 BE EF 03 06 00 FA 31 01 00 00 36 04 00
M1-D BE EF 03 06 00 CA33 0100 0036 0300
COMPONENT BE EF 03 06 00 6A30 0100 0036 0500
S-VIDEO BE EF 03 06 00 5A 32 01 00 00 36 02 00
VIDEO BE EF 03 06 00 AA32 0100 0036 0100
INFORMATION BE EF 03 06 00 FA 3E 01 00 00 36 10 00
AUTO KEYSTONE
EXECUTE
BE EF
03 06 00 6A 3F 01 00 00 36 11 00
MY MEMORY BE EF
03 06 00 9A 3F 01 00 00 36 12 00
PICTURE MODE BE EF
03 06 00 0A 3E 01 00 00 36 13 00
FILTER RESET BE EF
03 06 00 3A 3C 01 00 00 36 14 00
ACTIVE IRIS BE EF
03 06 00 AA 3D 01 00 00 36 15 00
e-SHOT BE EF 03 06 00 5A 3D 01 00 00 36 16 00
VOLUME + BE EF
03 06 00 CA 3C 01 00 00 36 17 00
VOLUME - BE EF
03 06 00 3A 39 01 00 00 36 18 00
Get BEEF030600093302000036 0000
