FUNCTIONAL DESCRIPTION
NOTE
The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance
of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have fi rst read and understood all safety
instructions contained in this manual.
Some illustrations in this Instruction Manual may show details or attachments that diff er from those on your own
power tool.

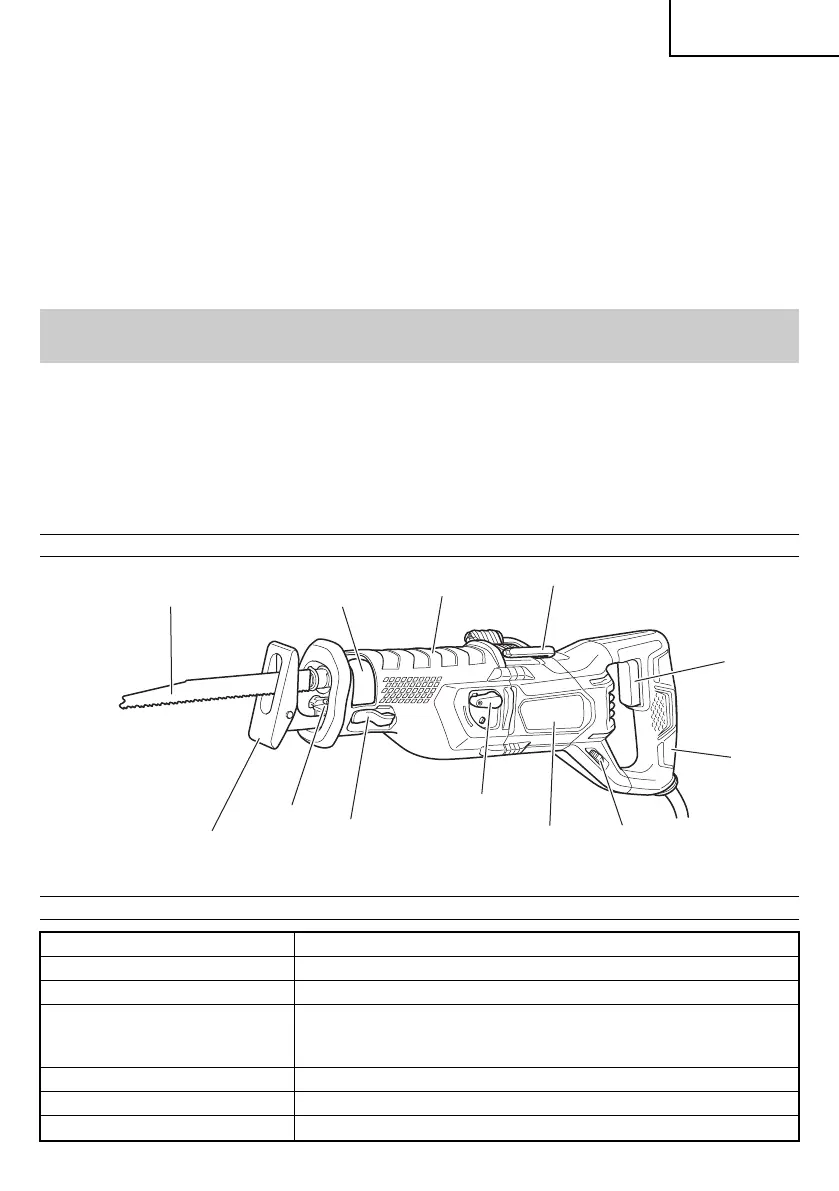

NAME OF PARTS
Lever
Base lever
Switch trigger
LED light
Housing
Blade
Base
Handle
Front cover
Change lever
Hook
Dial
Fig. 1
SPECIFICATIONS
Motor Single-Phase, Series Commutator Motor.
Power Source Single-Phase, 120 V AC 60 Hz
Current 11 A
Capacity Mild Steel Pipe: O.D. 5" (130 mm)
Vinyl Chloride Pipe: O.D. 5" (130 mm)
Wood: 4-3/4" (120 mm)
No-load speed 0 – 2,800 /min
Stroke 1-1/8" (29 mm)
Weight (without cord) 7.9 lbs. (3.6 kg)
