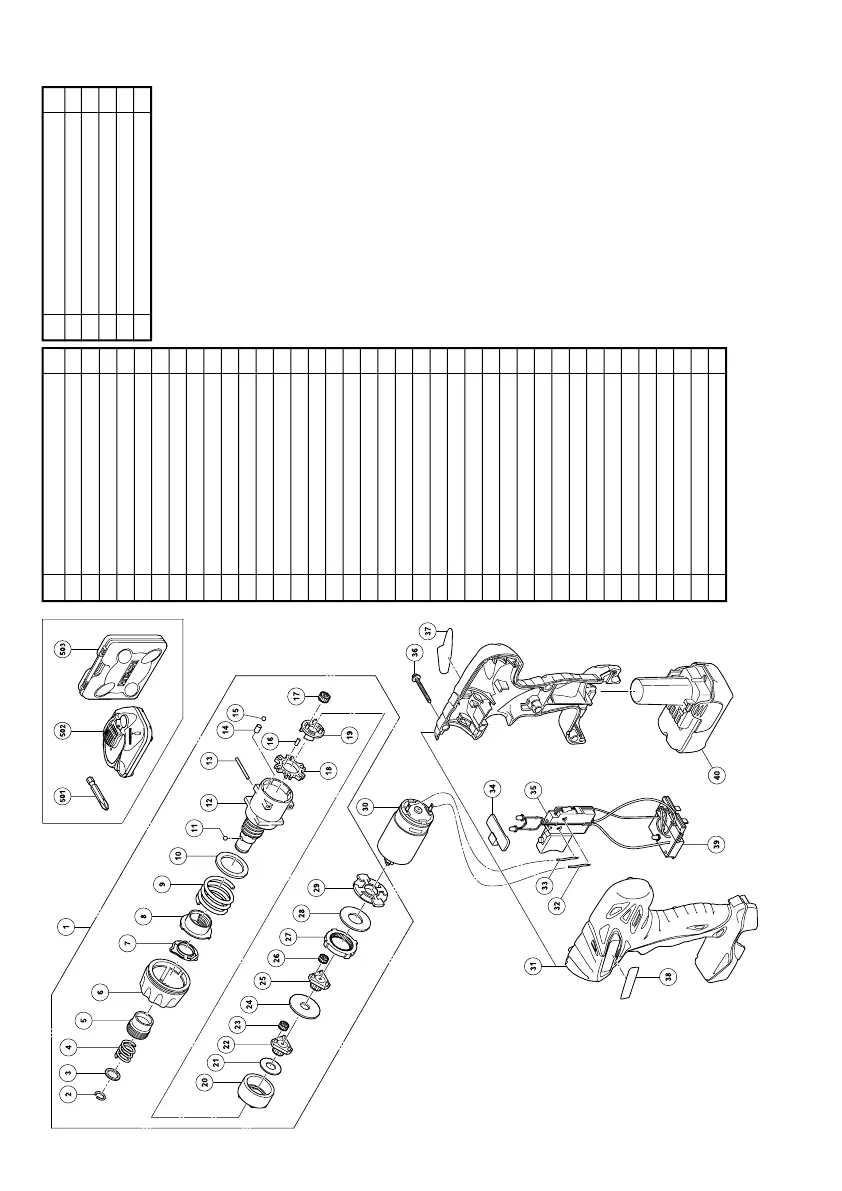

Hitachi DB10DL - Parts List; Liste des Pieces; Lista de Piezas

45
Item
Part Name
Q’TY
No.
1 GEAR BOX ASS'Y 1
2 RETAINING RING 1
3 WASHER (D) 1
4 GUIDE SPRING 1
5 GUIDE SLEEVE 1
6 CLUTCH DIAL 1
7 CLICK SPRING 1
8 NUT 1
9 SPRING 1
10 WASHER (D) 1
11 STEEL BALL D3.5 1
12 GEAR CASE 1
13 NEEDLE 2
14 PIN 6
15 STEEL BALL D4 6
16 NEEDLE ROLLER 6
17 PLANET GEAR (C) 3
18 LOCK RING 1
19 CARRIER 1
20 RING GEAR 1
21 WASHER (C) 1
22 PINION (C) 1
23 PLANET GEAR (B) 3
24 WASHER (B) 1
25 PINION (B) 1
26 PLANET GEAR (A) 3
27 FIRST RING GEAR 1
28 WASHER (A) 1
29 MOTOR SPACER 1
30 MOTOR 1
31 HOUSING (A),(B) SET 1
32 INTERNAL WIER (BLACK) 1
33 INTERNAL WIER (RED) 1
34 PUSH BUTTON (A) 1
35 DC SPEED CONTROL SWITCH 1
36
TAPPING SCREW (W/FLANGE) D3
×
16
7
37 NAME PLATE 1
38 HITACHI LABEL 1
Item
Part Name
Q’TY
No.
39 CONTROLLER (B) 1
40 BATTERY BCL1015 1
501 + DRIVER BIT 1
502 CHARGER UC10SFL 1
503 CASE 1
