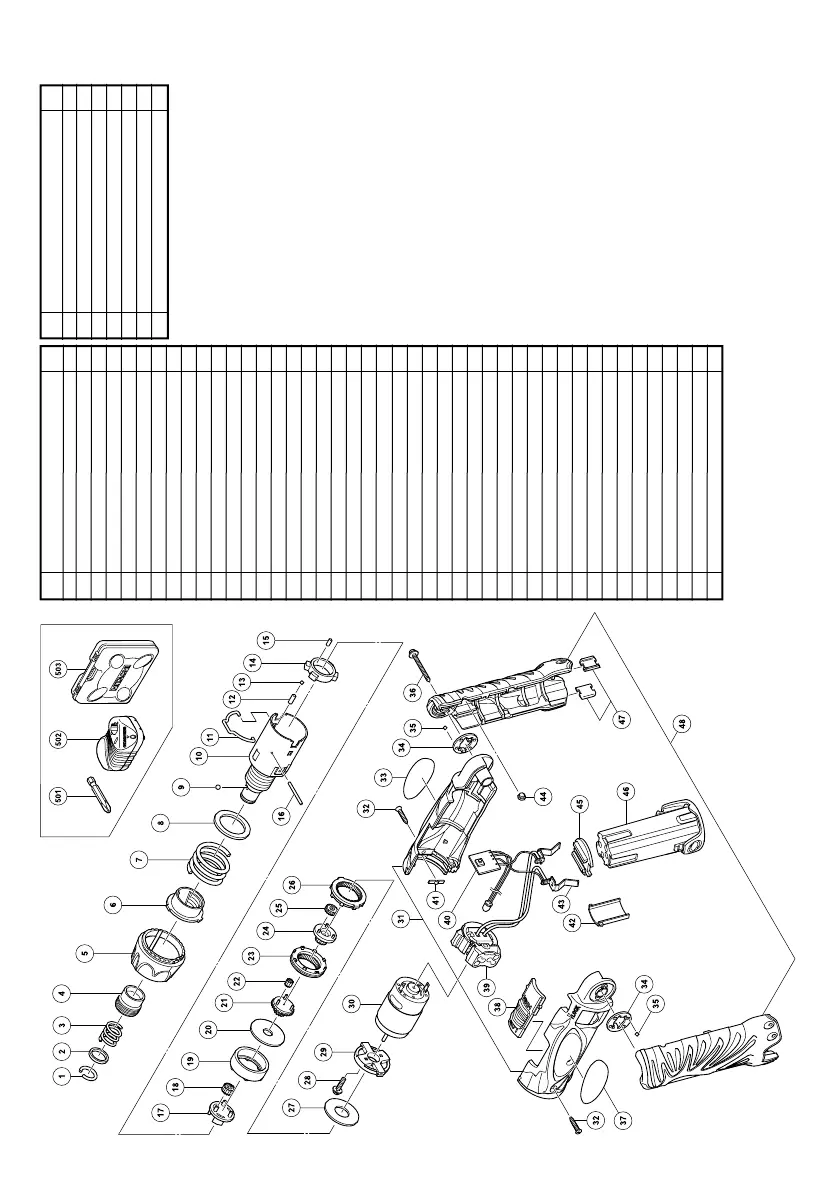

Hitachi DB3DL - Page 30

29
Item
Part Name
Q’TY
No.
1 RETAINING RING 1
2 WASHER (D) 1
3 GUIDE SPRING 1
4 GUIDE SLEEVE 1
5 CLUTCH DIAL 1
6 NUT 1
7 SPRING 1
8 WASHER (D) 1
9 STEEL BALL D3.5 1
10 GEAR CASE 1
11 SHIFT ARM 1
12 PIN 3
13 STEEL BALL D3.0 3
14 LOCK RING 1 15 NEEDLE ROLLER 6
16 NEEDLE 2
17 CARRIER 1
18 PLANET GEAR (C) SET 1
19 RING GEAR 1
20 WASHER (B) 1
21 PINION (C) 1
22 PLANET GEAR (B) SET 1
23 SLIDE RING GEAR 1
24 PINION (B) 1
25 PLANET GEAR (A) SET 1
26 FIRST RING GEAR 1
27 WASHER (A) 1
28 SCREW M2.6
×
82
29 MOTOR SPACER 1
30 MOTOR 1 31 HOUSING (A).(B) SET 1
32 FLAT TAPPING SCREW D3
×
84
33 NAME PLATE 1
34 CLICK PLATE 2
35 STEEL BALL D3 4
36
TAPPING SCREW (W/FLANGE) D4
×
20
1
37 HITACHI LABEL 1
38 SHIFT KNOB 1
39 SWITCH 1
40 PCB 1
41 CLICK SPRING 1
42 HANDLE COVER 1
43 TERMINAL 2
44 BUTTON 1
Item
Part Name
Q’TY
No.
45 TERMINAL SUPPORT 1
46 BATTERY EBM315 1
47 CLIP 2
48 HANDLE (A), (B) SET 1
501
+
DRIVER BIT 1
502 CHARGER (MODEL UC3SFL) 1
503 CASE 1
