ir passage
(Outside the
gear cover)
Felt packing (B)
Valve
Felt packing (A)
(Inside the Gear cover)
Inner cover
A - A
AA

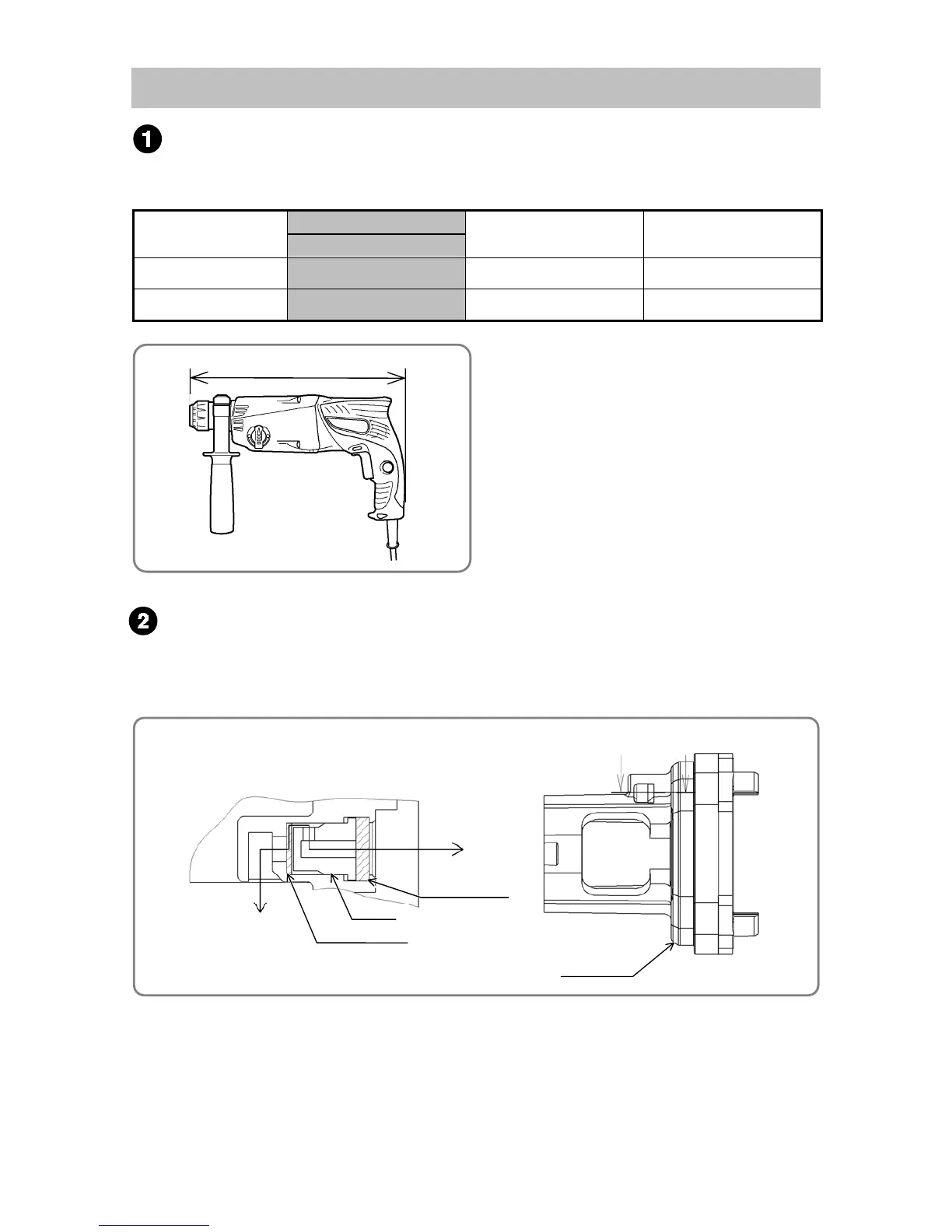

Most compact and lightweight in its class*
Although the Model DH 22PH is a 3-mode type rotary hammer, it is more compact and lightweight than the
2-mode type competitors in the same class.
HITACHI
Maker
Model
DH 22PH
BC
Overall length 318 mm 342 mm 357 mm
Weight 2.1 kg 2.3 kg 2.5 kg
Hitachi’s own internal pressure adjustment mechanism
An air passage is provided as shown below to let out air inside the gear cover and let outside air in the gear
cover. This passage is sandwiched between felt packings to allow only air to pass. As a result, fluctuations
in internal pressure are minimized for stable hammering operation and preventing grease leakage.
SELLING POINTS
* Based on our own research
