Hitachi DH 38MS - Optional Accessories

-4-

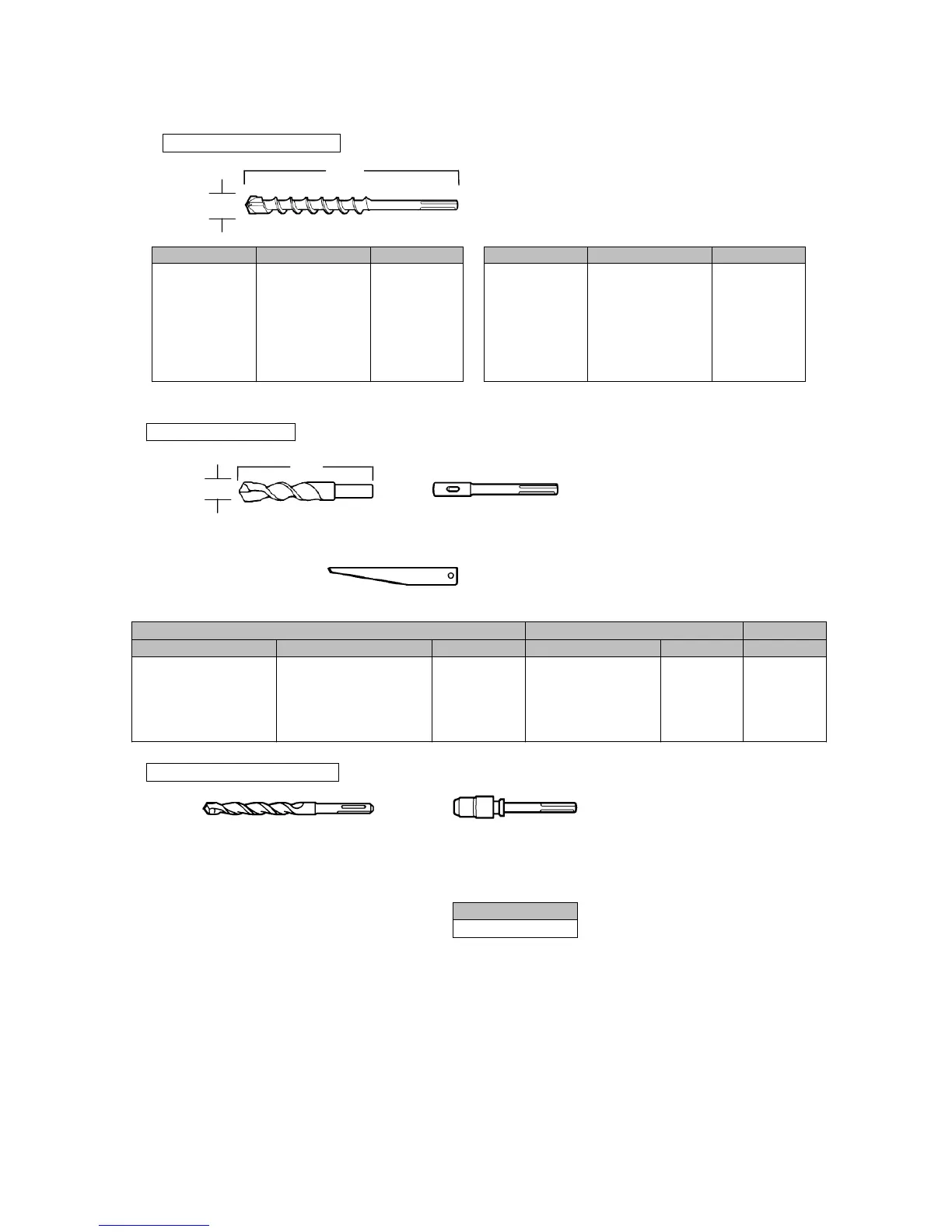

2. Optional Accessories
(1) Drilling work for through-hole drilling (rotation + impact)
D mm L mm Code No. D mm L mm Code No.
16 (5/8”) 340 (13-3/8”) 313448 16 (5/8”) 540 (21-1/4”) 313456
19 (3/4”) 340 (13-3/8”) 313449 19 (3/4”) 540 (21-1/4”) 313457
22 (7/8”) 320 (12-5/8”) 313450 22 (7/8”) 520 (20-15/32”) 313458
25 (1”) 320 (12-5/8”) 313451 25 (1”) 520 (20-15/32”) 313459
28 (1-1/8”) 370 (14-9/16”) 313452 28 (1-1/8”) 570 (22-7/16”) 313460
32 (1-1/4”) 370 (14-9/16”) 313453 32 (1-1/4”) 570 (22-7/16”) 313461
38 (1-1/2”) 370 (14-9/16”) 313454 38 (1-1/2”) 570 (22-7/16”) 313462
(2) Drilling work for anchor holes (rotation + hammering)
Drill bit (taper shank)
(1) Drill bit (taper shank) (2) Taper shank adapter (3) Cotter
D mm L mm
Code No. Taper dimension Code No. Code No.
11.0 (7/16”) 100 (4”) 944460
12.3 (15/32”) 110 (4-5/16”) 944461
14.3 (9/16”) 110 (4-5/16”) 944462 Morse taper No. 1 313464 944477
14.5 (9/16”) 110 (4-5/16”) 944500
17.5 (11/16”) 120 (4-3/4”) 944463
SDS-plus shank bit adapter
Code No.
313465
Drill bit (SDS max shank)
D
L
(1) Drill bit (taper shank)
(2) Taper shank adapter
(SDS max shank)
(3) Cotter
D
L
+
+
Drill bit (SDS-plus shank)
SDS-plus shank
bit adapter
(SDS max shank)
