20

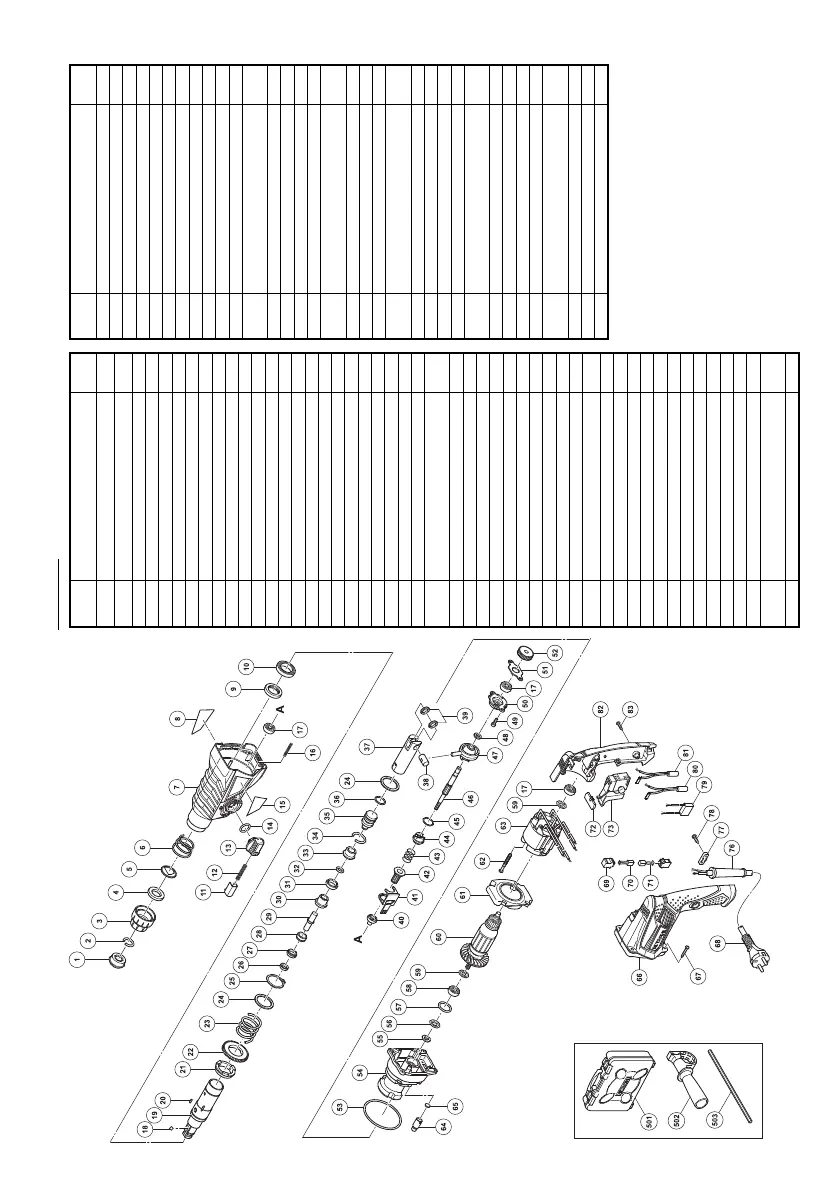

DH24PH
ITEM
NO.
PART NAME Q’TY
1FRONT CAP 1 2 STOPPER RING 1
3GRIP 1 4BALL HOLDER 1 5HOLDER PLATE 1 6HOLDER SPRING 1 7GEAR COVER 1 8NAME PLATE 1 9OIL SEAL 1
10 BALL BEARING 6805DD 1
11 P US HI NG BUTTON 1
12 PUSHING SPRING 1 13 CHANGE LEVER 1
14 O-RING (S-18) 1
15 HITACHI LABEL 1
16 SPRING (E) 1
17 BALL BEARING 608VVC2PS2L 3
18 STEEL BALL D7.00 1
19 CYLINDER 1
20 PIN D2.5 4
21 CYLINDER CLUTCH 1
22 SECOND GEAR 1
23 SPRING (A) 1
24 WASHER (A) 2
25
RETAINING RING FOR D30
SHAFT
1
26 OIL SEAL (A) 1
27 HAMMER HOLDER (C) 1
28 SLEEVE (FW) 1
29 SECOND HAMMER 1
30 HAMMER HOLDER (A) 1
31 DAMPER (A) 1
32 O-RING (C) 1
33 DAMPER HOLDER 1
34 STOPPER RING 1
35 STRIKER 1
36 O-RING D17 1
37 PISTON 1
38 PISTON PIN 1
39 PISTON WASHER 2
40 PINION SLEEVE (A) 1
41 LOCK PLATE 1
42 SECOND PINION 1
43 CLUTCH SPRING 1
44 CLUTCH 1
45 WASHER 1
46 SECOND SHAFT 1
47 RECIPROCATING BEARING 1
48 BEARING WASHER 1
49
SEAL LOCK HEX. SOCKET HD.
BOLT M5×16
2
50 BEARING HOLDER 1
ITEM
NO.
PART NAME Q’TY
51 BEARING COVER 1
52 FIRST GEAR 1
53 O-RING D72.2 1
54 INNER COVER 1
55 FELT PACKING 1
56 PACKING WASHER 1
57 O-RING (P-22) 1
58 BALL BEARING 608DDC2PS2L 1
59 WASHER (A) 2
60 ARMATURE 1
61 FAN GUIDE 1
62
HEX. HD. TAPP IN G SCREW
D4×50
2
63 STATOR 1
64 AIR CAP 1
65 FELT PACKING (A) 1
66 HOUSING 1
67
TAPPI NG SCREW (W/FLANGE)
D5×35
4
68 CORD 1
69 BRUSH HOLDER 2
70 CARBON BRUSH 1
71
CARBON BRUSH (AUTO STOP TYPE)
1
72 PUSHING BUTTON 1 73 SWITCH 1
76 CORD ARMOR 1
77 CORD CLIP 1
78
TAPPI NG SCREW (W/FLANGE)
D4×16
2
79 NOISE SUPPRESSOR 1
80 CHOKE COIL (A) BROWN 1
81 CHOKE COIL (A) BLUE 1
82 HANDLE COVER 1
83
TAPPI NG SCREW (W/FLANGE)
D4×20
3
501 CASE 1
502 SIDE HANDLE 1
503 DEPTH GAUGE 1
