(c) Facing the ridge of the Click Spring [5] <5> toward the front-side, insert Click Spring [5] <5> into the recess
of the Front Case [9] <9>. (See Fig. 7.)
(d) Insert the Clutch Dial [4] <4> into the Front Case [9] <9>. (See Fig. 8.)
Mount the Nut [6] <6> to the Clutch Dial [4] <4> engaging the wider projection of the Nut [6] <6> with the
wider recess of the Clutch Dial [4] <4>. (The wider recess of the Clutch Dial [4] <4> is positioned at "5"
when viewed from the outside.) Make sure that the hook of the Front Case [9] <9> is fitted in the hole of
the Clutch Dial [4] <4>.
(3) Reassembly of the gear unit
(a) Apply grease (Hitachi Motor Grease No. 29, Code No. 930035) to the meshing parts of the gear.
(b) Mount the parts series from the six Steel Balls D5 [10] <10> to Washer (B) [23] <23> to the assembly
reassembled in step (2). (See Fig. 9.)

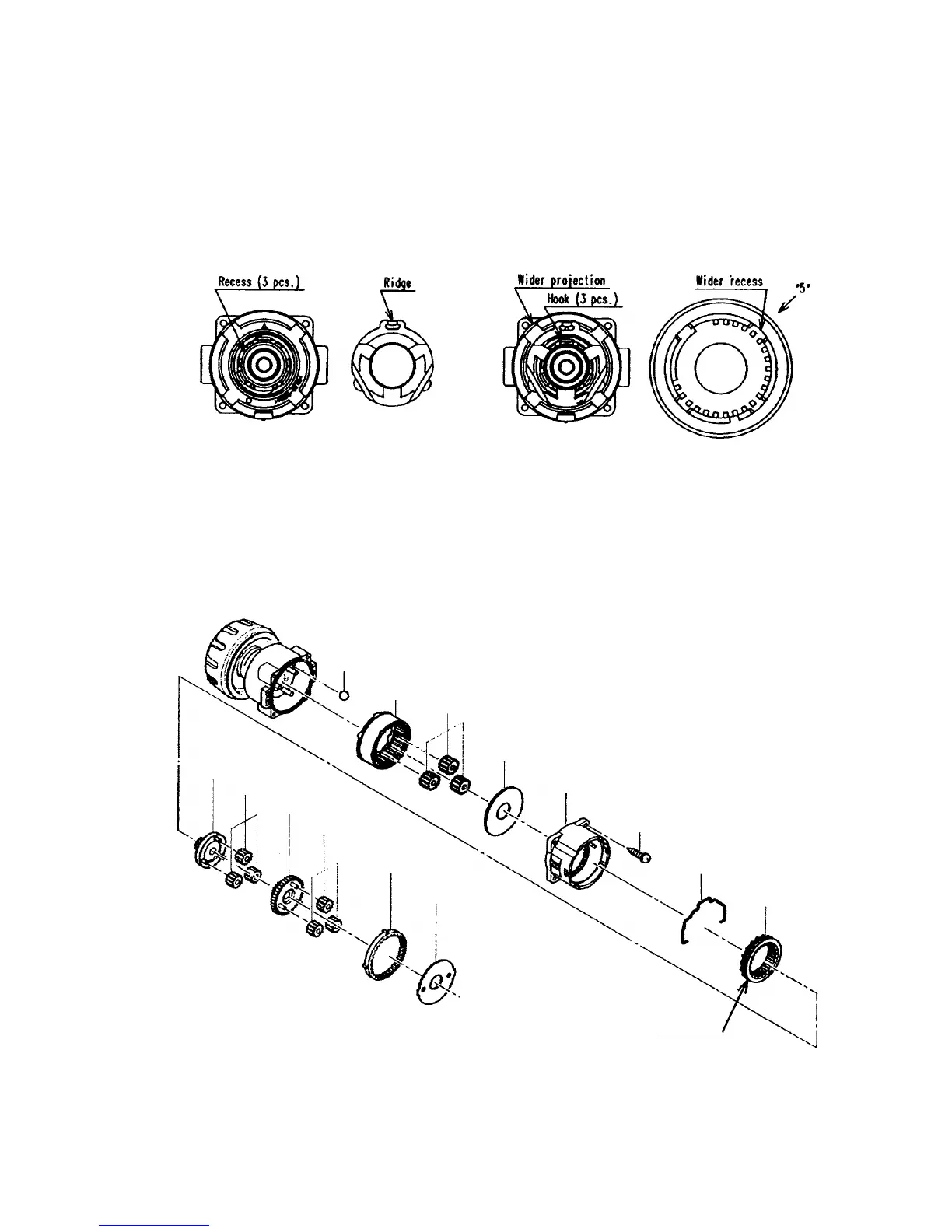

Fig. 7 Fig. 8
Fig. 9
[17] <17>
[20] <20>
[19] <19>
[18] <18>
[14] <14>
[13] <13>
[12] <12>
[11] <11>
[10] <10>
[23] <23>
[21] <21>
[22] <22> [16] <16>
[15] <15>
Groove
To Next Page
