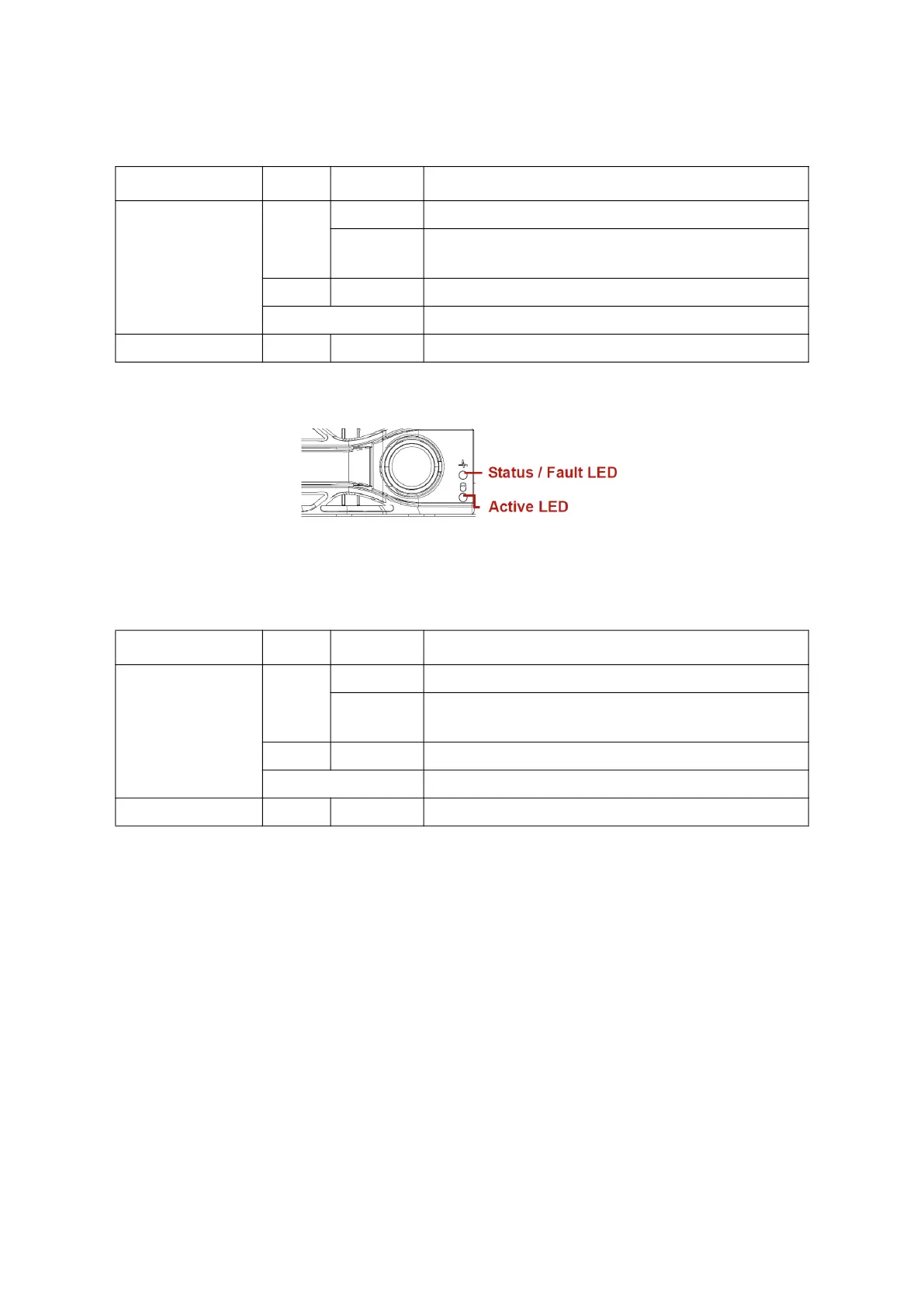

ABOUT THE SYSTEM LED STATUS DESCRIPTIONS
1-16
The following LED behavior table represents LED conditions.
Front 3.5" Storage Drive LED Status Behavior
Figure 1-11. 3.5” Storage Drive LED Identification
The following LED behavior table represents LED conditions.
Table 12: 2
.5" Storage Drive LED Status Behavior
NAME COLOR CONDITION DESCRIPTIONS
Drive Status / Fault
Blue
On Drive is online
Blinking
Twice per second: Identification
Once per second: Rebuilding
Amber On HDD failure
Off Slot is empty
Drive Active Blue Blinking HDD access is active
Table 13: 3.5" Storage Drive LED Status Behavior
NAME COLOR CONDITION DESCRIPTIONS
Drive Status / Fault
Blue
On Drive is online
Blinking
Twice per second: Identification
Once per second: Rebuilding
Amber On HDD failure
Off Slot is empty
Drive Active Blue Blinking HDD access is active
