10
When there is a problem during usage, you should stop the pump, remove the plug, and check to fi nd the cause or consult your distributor. เมื่อเกิดความ
ผิดปกติระหวางการใชงาน ควรหยุดการใชงานและถอดปลั๊กไฟออก ตรวจสอบและหาสาเหตุ หรือปรึกษาตัวแทนจําหนาย
DT-P300GX
Trouble อาการที่เสีย Cause สาเหตุ Correction การแกไข
The pump cannot pump water
(Motor cannot run and
makes no noise)
ปมนํ้าสูบนํ้าไมขึ้น
(มอเตอรไมหมุนและไมมีเสียงดัง)
The plug is loose or the main switch is broken.
ปลั๊กไฟหลวมหรือเมนสวิตชขาด
- Keep the plug tight and check the main switch.
เสียบปลั๊กใหแนนและเช็คเมนสวิตช
The coil in the motor or pressure switch is out of order.
ขดลวดในมอเตอรหรือสวิตชความดันเสีย
- Repair or replace the pressure or the motor switch.
ซอมสวิตชความดันหรือมอเตอรหรือเปลี่ยนใหม
The impeller is locked may be due to the scale.
ใบพัดล็อค อาจเกิดจากทรายหรือตะกรันนํ้า
- Remove the cover for cleaning.
คลายฝาครอบออก ทําความสะอาด
The capacitor has leaked or melted.
ตัวเก็บประจุรั่วหรือหลอมละลาย
- Replace.
เปลี่ยนใหม
The pump cannot pump up
(Motor ratates normally)
ปมนํ้าสูบนํ้าไมขึ้น
(มอเตอรหมุนปกติ)
Water supply is dried, or the suction pipe has leaked.
นํ้าในแหลงสูบนํ้าแห
งหรือ ทอทางดานดูดรั่ว
- Check the water supply and make sure the connections are tight.
เช็คแหลงนํ้าและเช็คทอตามขอตอแนนหรือไม
The check valve cannot be closed tightly.
การปดตัวของเช็ควาลวไมสนิท
- Remove for cleaning and check the rubber seal.
ถอดทําความสะอาดและตรวจเช็คซีลยาง
Insuffi cient water in the pump for priming.
นํ้าในตัวเรือนปมที่ใชลอมีไมเพียงพอ
- Refi ll the priming water.
เติมนํ้าลอใหมอีกครั้ง
The pump can pump up
(the pump works all the time)
ปมนํ้าสูบนํ้าขึ้น
(ปมนํ้าทํางานตลอดเวลา)
The suction pipe is clogged up.
ทอทางดานดูดตัน
- Check and clean the pipe.
เช็คและทําความสะอาดทอใหม
Water level is lower than the suction pipe end.
ระดับนํ้าตํ่ากวาปลายทอดานดูด
- Adjust the level of the suction pipe to be lower than the water level.
ปรับระดับของทอดูดใหมใหตํ่ากวาระดับนํ้า
The pressure switch is broken.
สวิตชความดันเสีย
- Repair or replace.
ซอมหรือเปลี่ยนใหม
The pump can pump up
(The pump cuts off too often)
ปมนํ้าสูบนํ้าขึ้น
(ปมนํ้าตัด - ตอบอยเกินไป)
Air volume in the pressure tank is reduced.
ปริมาณอากาศในถังความดันลดลง
- Remove water out of the tank and clean the aerator.
ถายนํ้าออกจากถังและทําความสะอาดตัวปอนอากาศ
Water volume use is too low.
ปริมาณการใชนํ้านอย
- Turn on the faucet for the suitable volume.
เปดกอกนํ้าใชในปริมาณที่เหมาะสม
The delivery pipe is leaked or other equipment is broken down.
ทอทางดานจายรั่ว หรืออุปกรณอื่นๆ เสีย
- Repair the pipe or check the electrical equipment in the house.
ซอมแซมทอใหมหรือตรวจเช็คอุปกรณภายในบาน

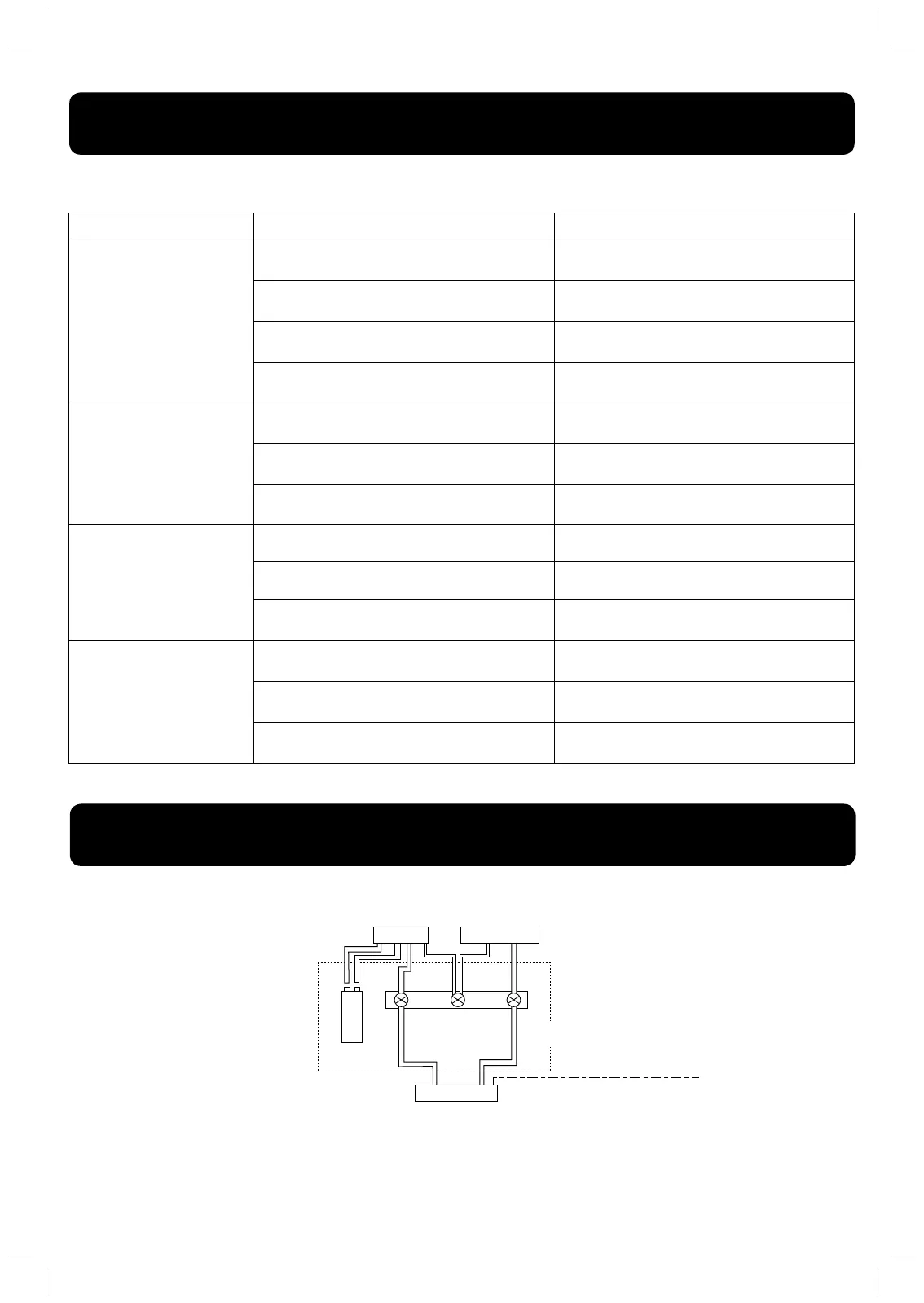

PROBLEMS AND REPAIRS
ปญหาและการแกไข
WIRING DIAGRAM
วงจรไฟฟา
Power source
(แหลงจายไฟ)
Terminal box
(กลองชุดครอบสายไฟ)
(ค็อนเดนเซอร)
Condenser
(มอเตอร)
MOTOR
(ขาว)
WHITE
(แดง)
RED
Pressure switch
(สวิตชปรับความดัน)
(ขาว)
WHITE
(เทา)
GRAY
(ดํา)
BLACK
(ฟา)
BLUE
(เทา)
GRAY
GREEN/YELLOW (EARTH)
เขียว/เหลือง (สายดิน)
(นํ้าตาล)
BROWN
