Hitachi DV 14DCL2 User Manual

12

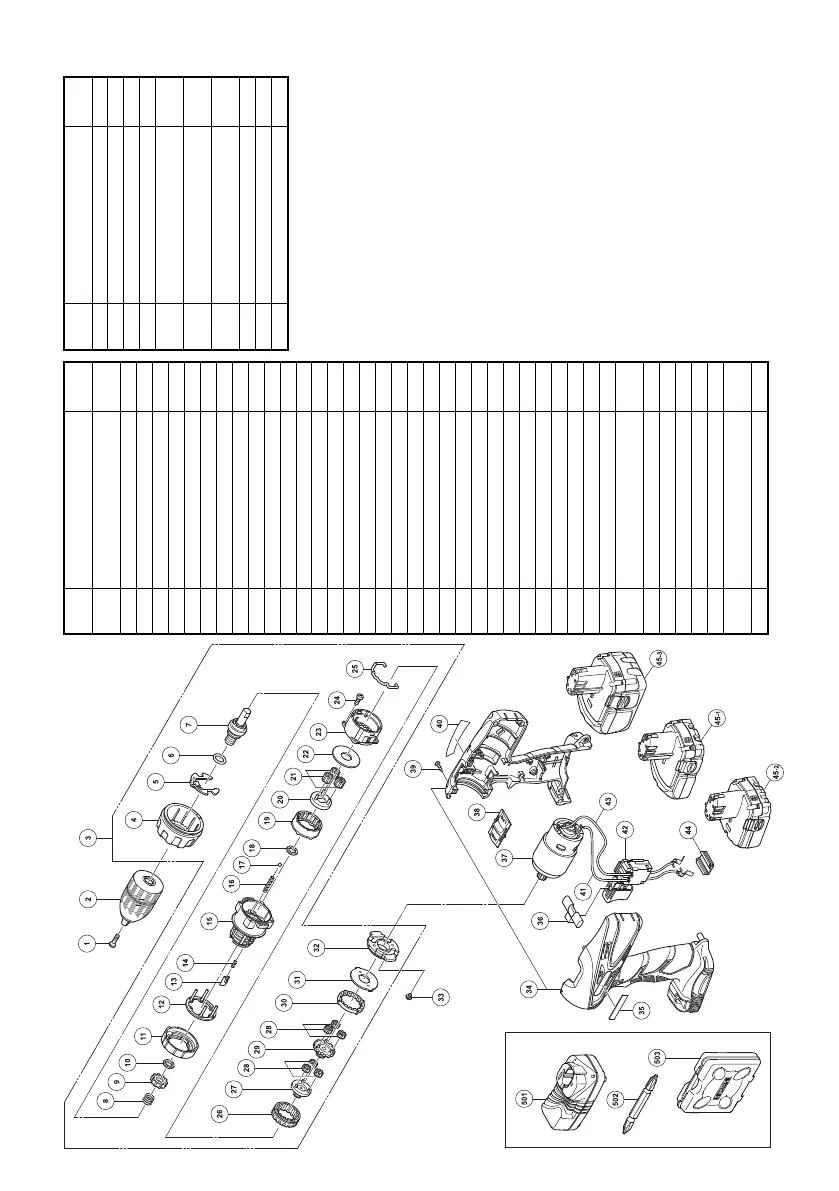

Item
No.
Part Name Q’TY
1
FLAT HD. SCREW (A)
(LEFT HAND) M6 × 25
1
2 KEYLESS CHUCK 1
3 GEAR BOX ASS’Y 1
4 CLUTCH DIAL 1
5 CLICK SPRING 1 6 O-RING 1 7 SPINDLE 1 8 SPRING (C) 1 9 RATCHET (B) 1
10 WASHER (A) 1 11 NUT 1 12 WASHER 1 13 SLIP BLOCK 2 14 STOPPER SPRING 2
15 FRONT CASE 1 16 SPRING (A) 4
17 STEEL BALL D5 4 18 WASHER (A) 1 19 RING GEAR 1 20 CARRIER 1 21 PLANET GEAR (C) 3
22 WASHER (A) 1 23 REAR CASE 1 24 TAPPING SCREW D3 × 12 4
25 SHIFT ARM 1 26 SLIDE RING
GEAR 1
27 PINION (C) 1 28 PLANET GEAR (A) 6
29 PINION (B) 1 30 FIRST RING GEAR 1
31 WASHER (B) 1 32 MOTOR SPACER 1 33
MACHINE SCREW
(W/SP. WASHER) M4 × 6
2
34 HOUSING (A) (B) SET 1
35 HITACHI LABEL 1 36 PUSHING BUTTON 1 37 MOTOR 1 38 SHIFT KNOB 1 39
TAPPING SCREW
(W/FLANGE) D3 × 16
9
40 NAME PLATE 1
Item
No.
Part Name Q’TY
41 INTERNAL WIRE 100L 1
42 SWITCH TERMINAL 1
43 INTERNAL WIRE 150L 1
44 TERMINAL SUPPORT (A) 1
45-1
BATTERY BCL1815
(DV18DCL2)
2
45-2
BATTERY BCL1415
(DV14DCL2)
2
45-3
BATTERY EBM1830
(DV18DCL2)
2
501 CHARGER UC18YKL 1 502 PLUS DRIVER BIT (C) 1
503 CASE 1
000BookDV14DCL2.indb12000BookDV14DCL2.indb12 2012/02/298:46:552012/02/298:46:55
