English
7
FUNCTIONAL DESCRIPTION
NOTE:
The information contained in this Instruction Manual is designed to assist you in the
safe operation and maintenance of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have first read and
understood all safety instructions contained in this manual.
Some illustrations in this Instruction Manual may show details or attachments that differ
from those on your own power tool.

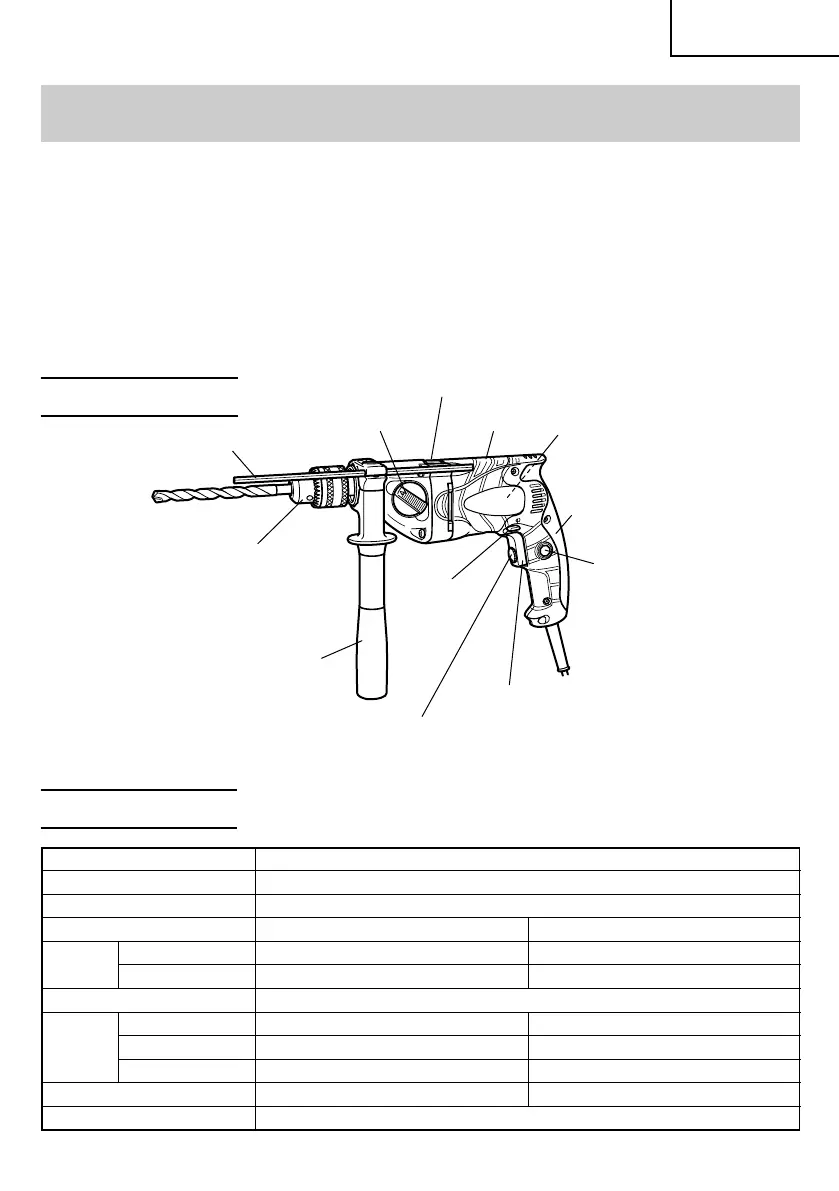

NAME OF PARTS
Fig. 1
SPECIFICATIONS
Change Lever
Housing
Drill Chuck
Nameplate
Push
Button
Stopper
Switch Trigger
Speed Control Dial
Side Handle
Depth Gauge
Gear Shift Dial
Handle Cover
Motor Single Phase, Series Commutator Motor
Power source Single Phase 120V AC 60 Hz
Current 8.3 A
Speed change 1 2
No-load
Forward rotation 0-1000/min 0-3000/min
speed
Reverse rotation 0-600/min 0-1800/min
Drill chuck capacity 1/2" (13mm)
Steel 1/2" (13mm) 5/16" (8mm)
Capacity Concrete 3/4" (20mm) 1/2" (13mm)
Wood 1-9/16" (40mm) 1" (25mm)
No-load impact rate 13000/min 39000/min
Weight (Without Cord) 4.9 lbs (2.2 kg)
01Eng_DV20VB2_US 7/18/13, 9:31 AM7
