Hitachi EUP-B712 - Probe Operation and Attachments; Probe Connection and Basic Operation; Needle Guide Bracket Operations

-7- Q1E-EP1412
3. Operation Procedure
3.1 Probe
1) Confirm that the probe, the Magnetic Sensor Attachment and the Spacer
for EZU-RV2S are cleaned, disinfected and if necessary sterilized.
2) Connect the probe to the ultrasound diagnostic scanner, operate the
scanner, and adjust the image, all according to the instructions
given in the operation manual for the ultrasound diagnostic scanner
with which the probe is used as connected.

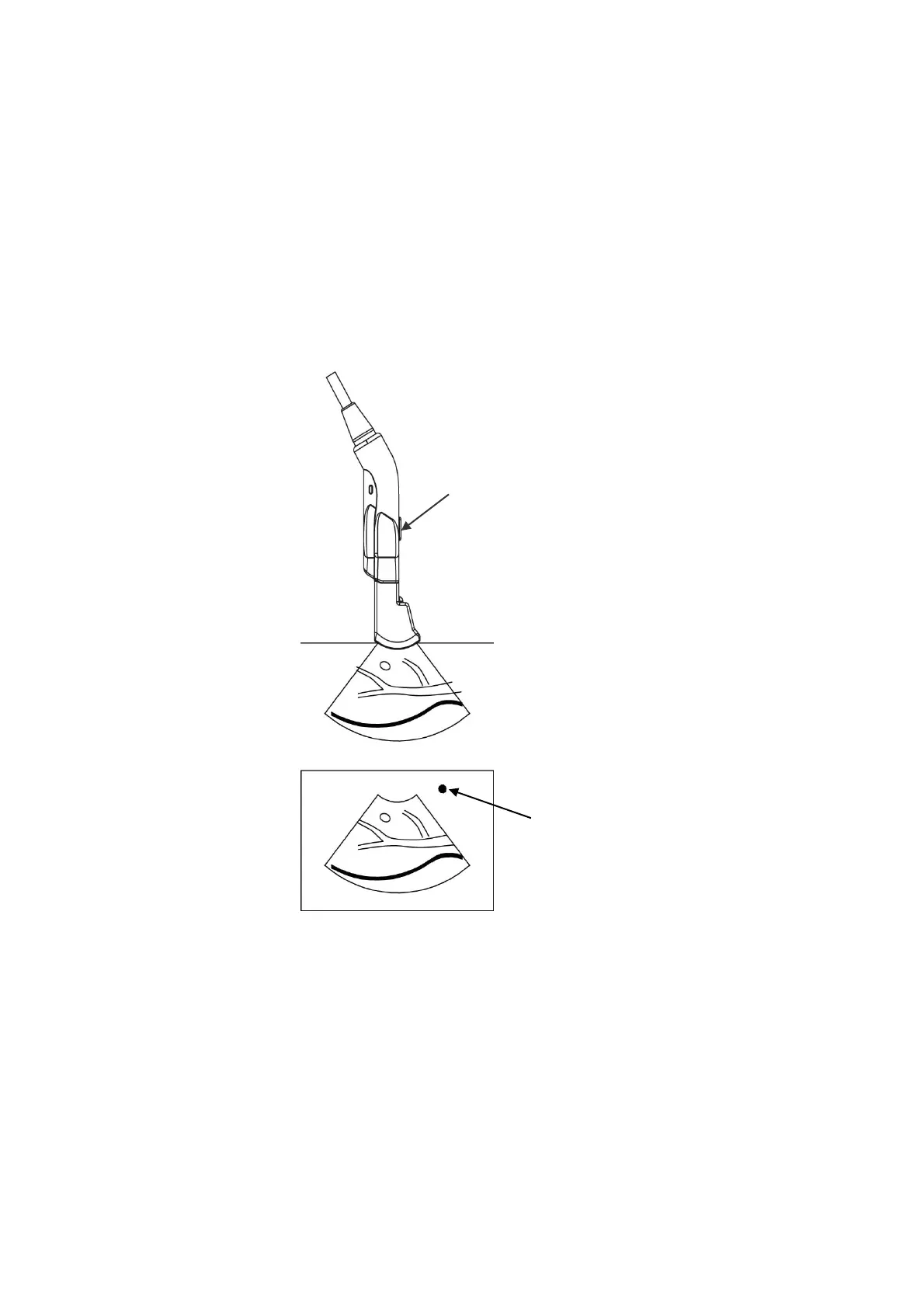

3) Relationship between direction of the probe and the image is shown
in Fig. 4. The right-left orientation mark on the image indicates
the index mark on the probe.
I
ndex mark
Right-Left
orientation mark
Probe
Fig. 4
R
elationship between the directions of the
probe and the Right-
l
eft orientation mark
