-18- Q1E-EP1412
3.3.2 Removing the Magnetic Sensor (EZU-RV2S)
The procedure of releasing the Magnetic sensor from the probe is as
follows.
1) Press the area of the attachment shown with the arrow toward the
direction A, and then slide out the attachment toward the direction
B as shown in Fig. 16 and release it from the probe.
2) Release the Magnetic sensor from the groove of the attachment as
shown in Fig. 17 and release the Spacer for EZU-RV2S from the Magnetic
sensor.
A
B
lide the attachment
in this direction.

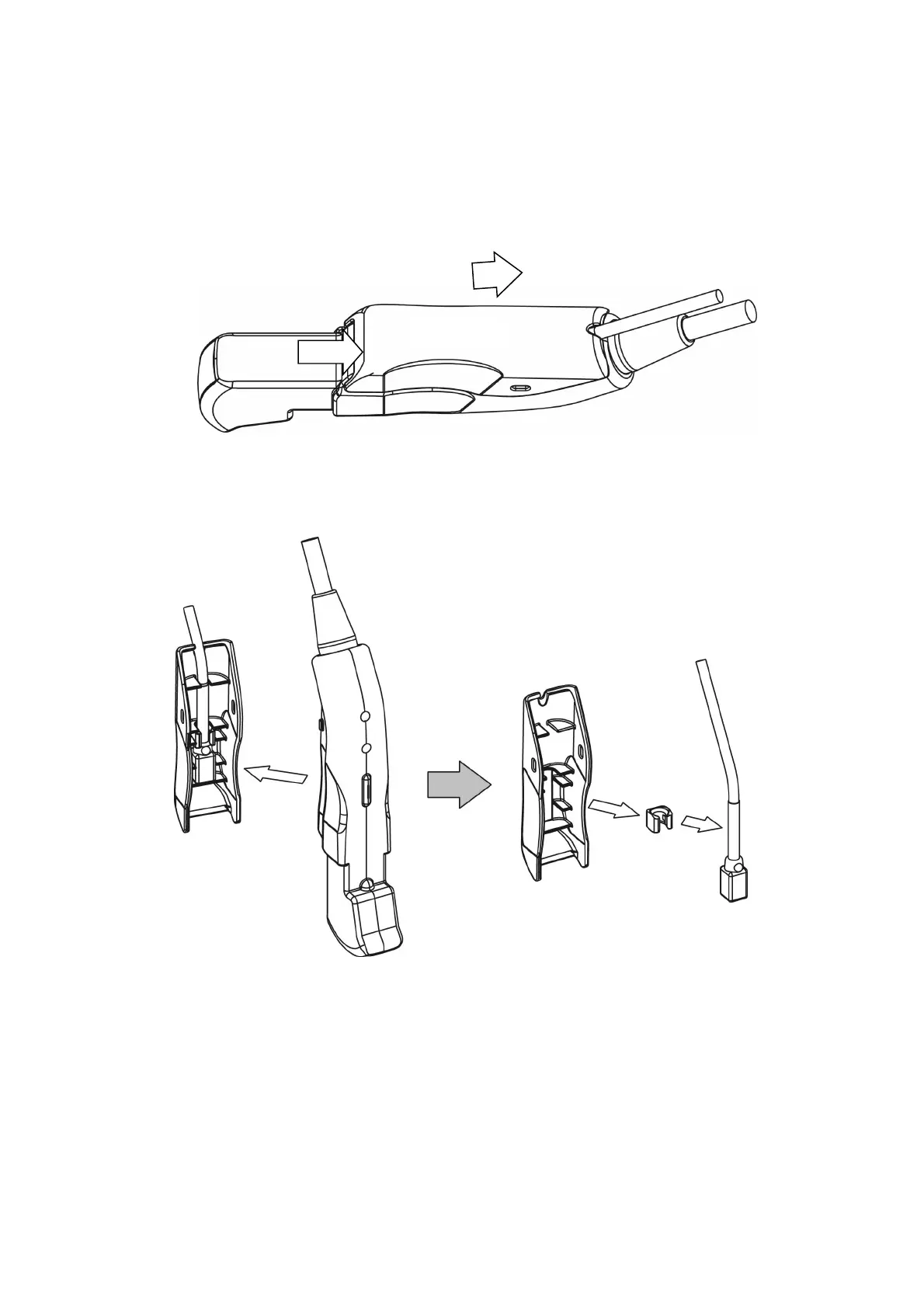

Fig. 16 How to release the attachment from the probe
Press this area
Fig. 17 How to release the Magnetic Sensor
from the groove of the probe
