PRODUCT SAFETY NOTICE
Many electrical mechanical parts in the color monitor
units have special safety related characteristics.
These are often not evident from visual inspection nor
can the protection afforded by them necessarily be
obtained by using replacement components rated for
higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in
this Service Manual.
Electrical components having such features are identified
by marking with on the schematics and on the parts
list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
manufacturer recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, X-radiation, or other hazards.
Productions are issued from time to time. For the latest
information, always consult this Service Manual.
DC VOLT METER
(10 V range)
VARIABLE
RESISTER
300 k -B (1/2 W)
Clockwise
RESISTER
68 k (1/2W)
To
CHASSIS
GROUND
DEF BOARD ASSEMBLY

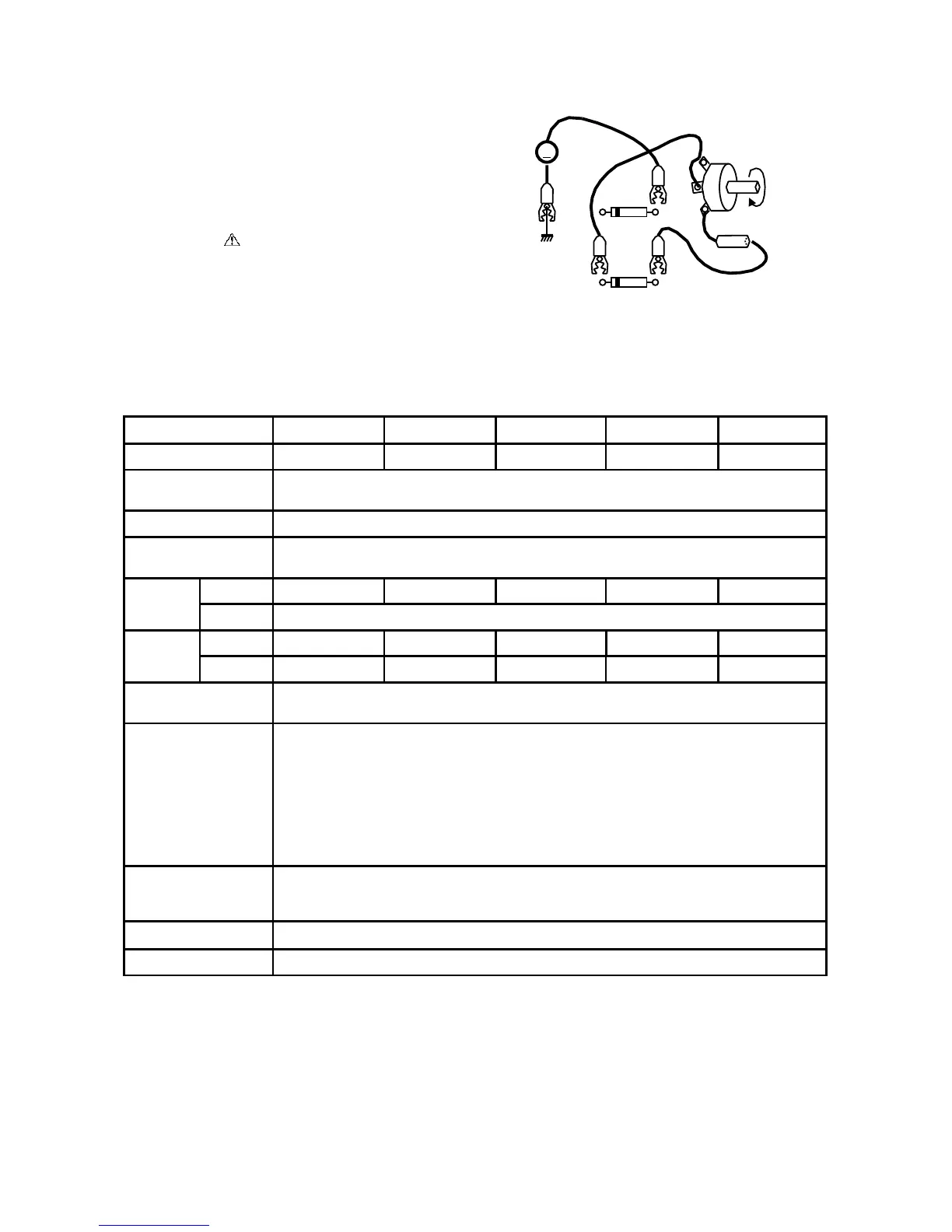

FIG. 2 CHECKING CIRCUIT USING JIG
SPECIFICATIONS
Model Name
CM771U CM771ET CM772U CM772ET
Destination North America Europe North America Europe
Rated Voltage AC 100-120 / 200-240 V, Automatically select.
Provided with Power Circuit.
Power Consumption 98 W nominal
Color Display Tube
(CDT)
19 inches diagonal, 0.22 mm horizontal dot pitch,
Invar shadow mask, Black matrix, Anti-Reflection coat, Short persistence phosphors.
Rated
Horizontal 31 - 96 kHz 31 - 96 kHz 31 - 106 kHz 31 - 106 kHz
Frequency
Vertical 50 - 160 Hz
Resolution
Horizontal Up to 1600 dots Up to 1600 dots Up to 1600 dots Up to 1600 dots
Vertical Up to 1280 lines Up to 1280 lines Up to 1280 lines Up to 1280 lines
Signal Inputs Red, Green and Blue analog video
H/V separate, H/V composite or Sync. on Green sync.
User Controls Power Switch
Degauss
Language Select
Contrast
Brightness
H. Position
H. Size
V. Position
V. Size
Rotation
Pincushion
Trapezoid
Pin.Balance
Parallelogram
H. Moiré
V. Moiré
Color Select
Red, Green, Blue
DMS Mode
OSD H-Position
OSD V-Position
Dynamic Focus
V.Linearity
V.L. Balance
Hemisphere
Total Reset
Single Recall
Top Corner Pin.
Bottom Corner Pin.
Environmental
Condition
Operation Storage
Temperature : 5  to 35  20  to 60 
Humidity : 10 % to 80 % 10 % to 90 %
Dimensions
448(W)  442 (H)  450 (D) mm, Including Tilt & Swivel base.
Weight 24.0 kg
