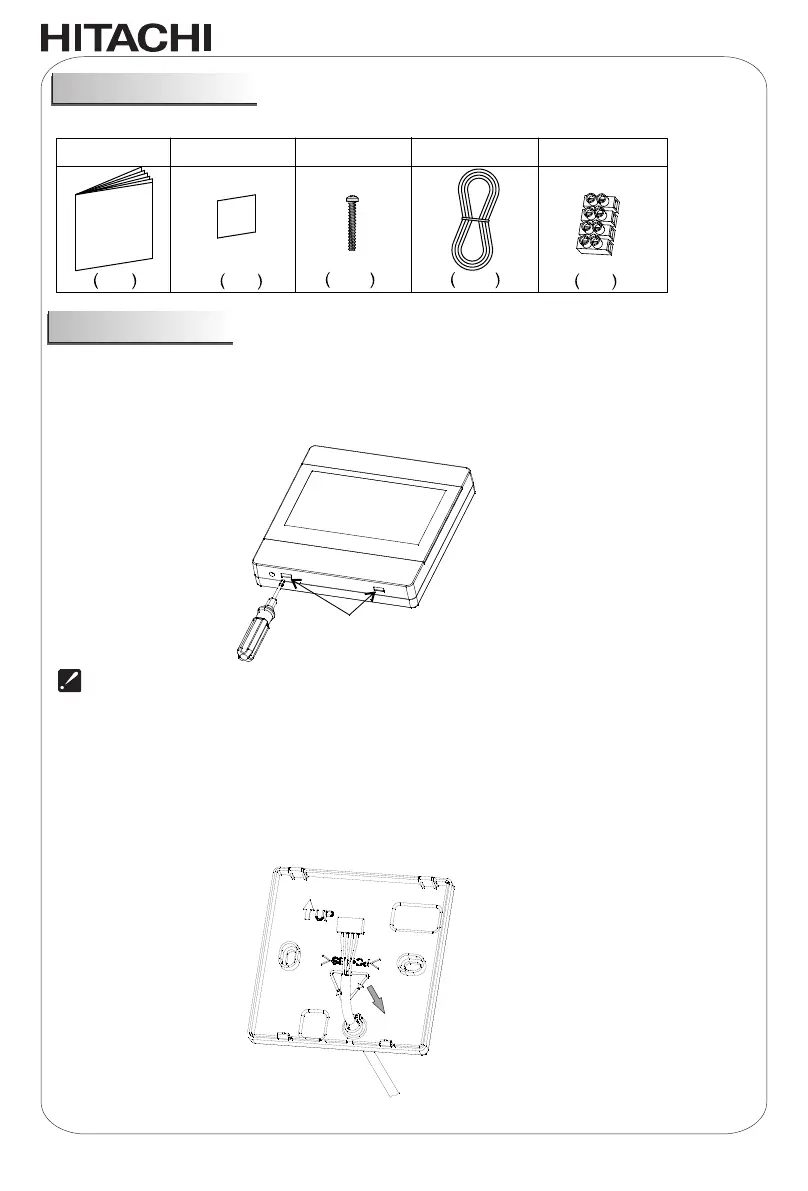

Check that the following accessories are included with the unit before installation：
1pc 1pc
2 pcs 2 pcs
Manual
Quality certification
Screw
Controlling cable
Connecting terminal
1pc
Please select the installation location according to safety precautions .
Note:
Control board of the wired controller is placed on upper cover.
Please protect it from being scratched during removal and installation!
1.Selecting the Installation Location.
2. Removing the upper cover of the wired controller.
Insert the slotted screwdriver in the slots,
and press on it for removal.
4.Wiring.
3.Remove the insulating strip of the battery.
Leading out wire
Pull one of the attached controlling cable out of the lower cover from the rear round hole.
Otherwise the wired controller cannot work normally after installation!
3
Checking accessories
Wired Controller Installation
How to install
*Lead out the wire toward the arrow
direction!
①
To Next Page
