SERVICE MANUAL
16sc31-2 scart board
STV6414Audıo/Vıdeo Switch Matrix(IC200)
• I²C Bus Control
• Standby Mode with Interrupt Signal Output
• Video Section
• 3 CVBS Inputs, 2 CVBS Outputs
• 3 Y/C Inputs, 2 Y/C Outputs
• 6dB Gain on all CVBS/Y and C Outputs
• Integrated 150W Buffers
• 2 RGB/FB Inputs, 1 Tri-state RGB/FB Output with 6dB Adjustable Gain (from +3dB to +9dB)
• Video Muting on all Outputs
• 2 Slow Blanking Inputs/Outputs
• Sync Bottom Clamp on all CVBS/Y and RGB
• Inputs, Average Clamp on C Inputs
• Bandwidth: 15MHz
• Crosstalk: 50dB Minimum
• Audio Section
• 3 Stereo Inputs, 3 Stereo Outputs
• Stereo-to-Mono Sound Capability
• 0/6/9dB Selectable Gain on one Stereo Input
• Full Range Volume Control with Soft Control
•
Audio Muting on all Outputs

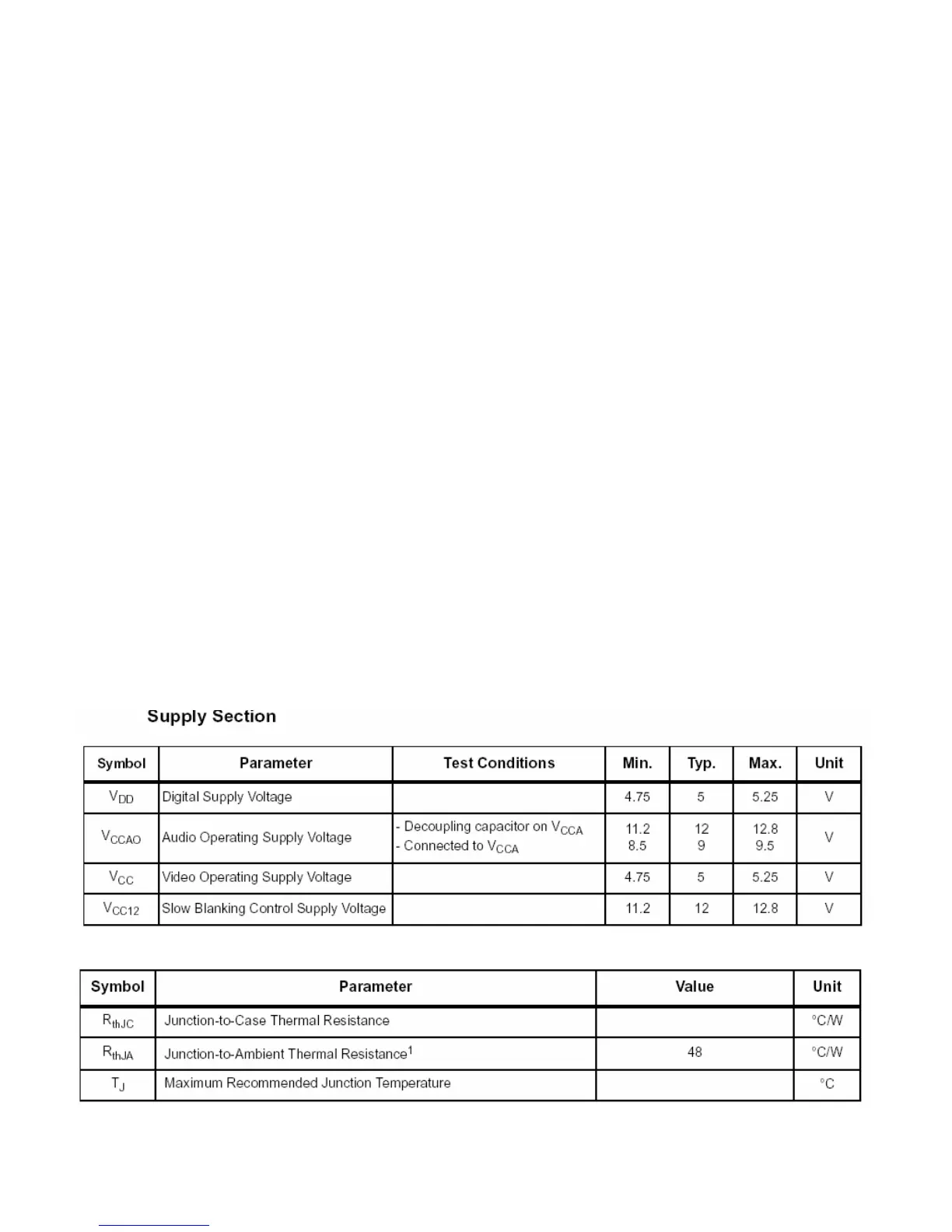

Thermal Data :
Page 17
