IC Block Diagram
-29-

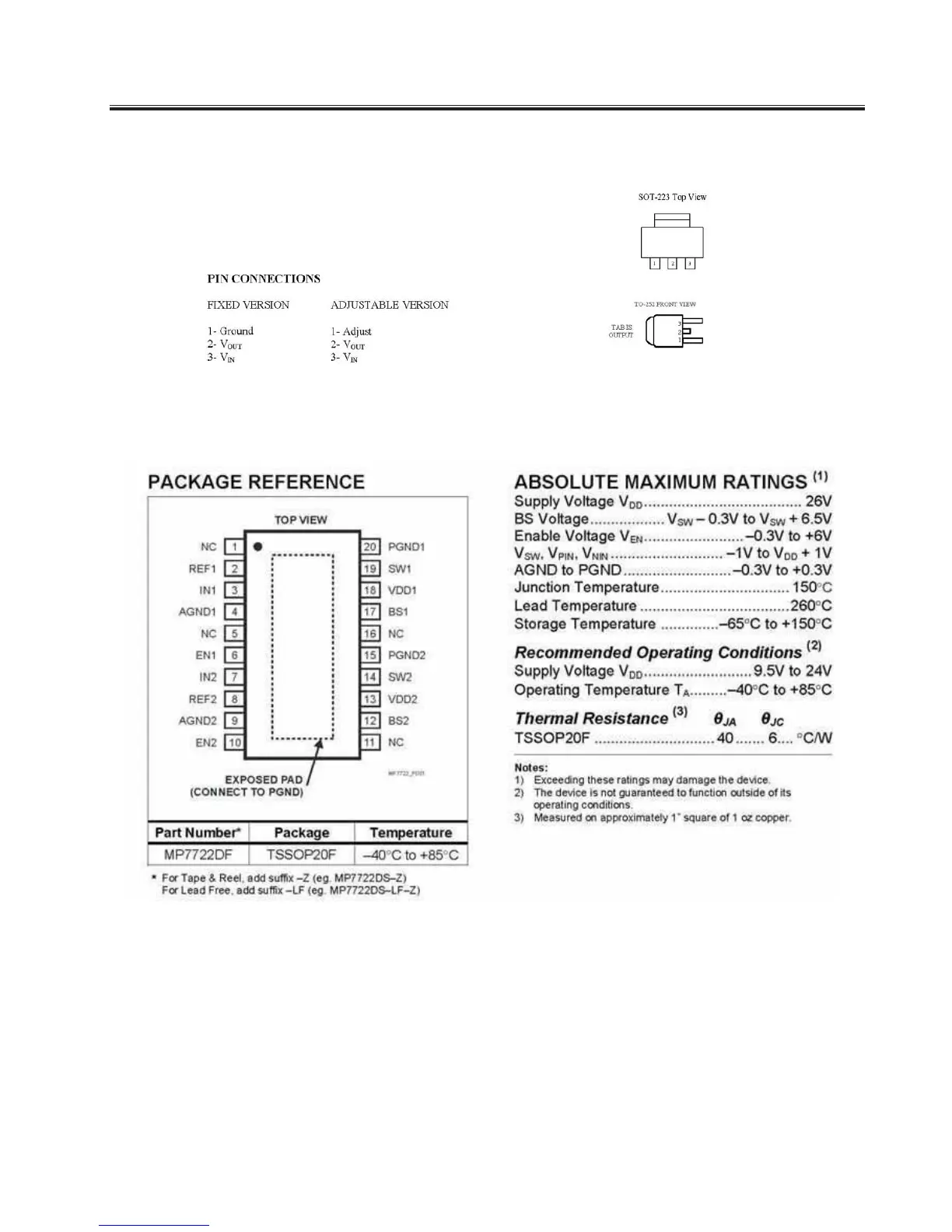

U22,U24,U31,U32(1A LOW DROPOUT VOLTAGE REGULATOR)AMS1117-1.8
U33(STEREO SINGLE ENDED AUDIO AMPLIFER)MP7722DF
