(3) Tightening torque of screws and bolts
Tapping screw D4 x 12 2.0 0.5 N•m (20 5 kgf•cm)
Tapping screw D4 x 16 2.0 0.5 N
•
m (20 5 kgf
•
cm)
Tapping screw D4 x 25 2.0 0.5 N
•
m (20 5 kgf
•
cm)
Tapping screw D5 x 50 2.9 0.5 N
•
m (30 5 kgf
•
cm)
Hex. hd. tapping screws D5 x 65 2.9 0.5 N
•
m (30 5 kgf
•
cm)
Machine screw M4 x 8 1.8 0.4 N
•
m (18 4 kgf
•
cm)
Machine screw M4 x 12 1.8 0.4 N•m (18 4 kgf•cm)
Machine screw M6 x 10 4.9 1.0 N
•
m (50 10 kgf
•
cm)
Machine screw M6 x 30 4.9 1.0 N
•
m (50 10 kgf
•
cm)
Flat screw M5 x 14 3.4 0.7 N
•
m (35 7 kgf
•
cm)
Hex. socket set screw M5 x 8 0.75 0.25 N
•
m (7 2.5 kgf
•
cm)
Nut M5 3.4 0.7 N
•
m (35 7 kgf
•
cm)
Nut M8 9.8 2.0 N•m (100 20 kgf•cm)
Thrust nut 17.2 2.5 N
•
m (50 10 kgf
•
cm)

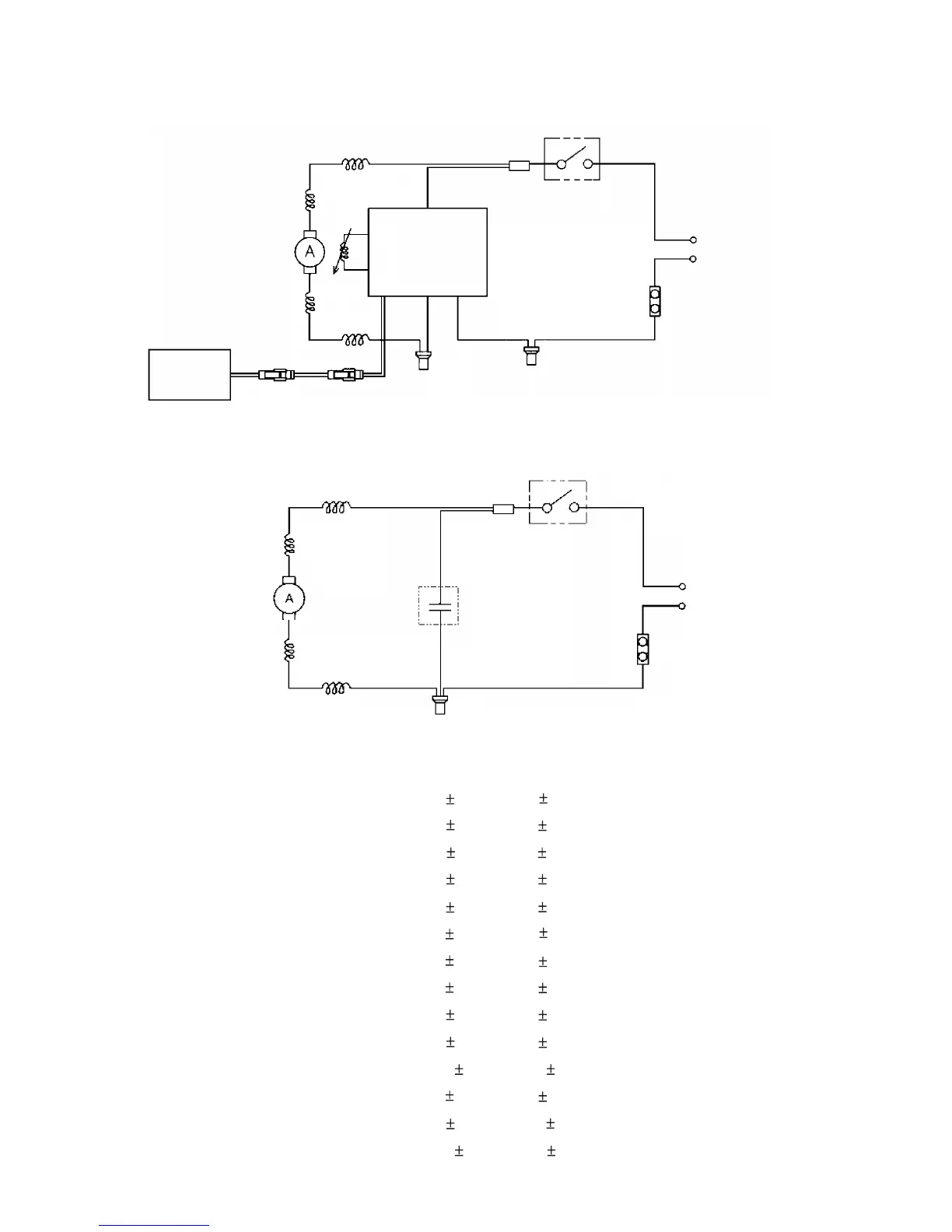

(2) Wiring diagram
(2-1) Model M 8V2
(2-2) Model M 8SA2
Fig. 9
Fig. 10
Noise
suppressor
Control
circuit ass'y
Stator
Switch
Dial ass'y
Power source
Armature
Stator
Stator
Stator
Armature
Power source
Switch
