Lubrication enables smooth sliding and simultaneously
serves to prevent the formation of rust.
5. Storing
䡬 When not in use for an extended period, apply a thin
coat of the lubricant to the steel parts to avoid rust.
䡬 Do not store the stapler in a cold weather environment.
Keep the stapler in a warm area.
䡬 When not in use, the stapler should be stored in a
warm and dry place.
Keep out of reach of children.
6. Service parts list
CAUTION:
Repair, modification and inspection of Hitachi Power
Tools must be carried out by an Hitachi Authorized
Service Center.
This Parts List will be helpful if presented with the
tool to the Hitachi Authorized Service Center when
requesting repair or other maintenance.
In the operation and maintenance of power tools, the
safety regulations and standards prescribed in each
country must be observed.
MODIFICATIONS:
Hitachi Power Tools are constantly being improved
and modified to incorporate the latest technological
advancements.
Accordingly, some parts may be changed without
prior notice.
COMPRESSOR
CAUTION:
When the maximum, operating pressure of the air
compressor exceeds 8.3 bar (120 psi.), be sure to
provide a reducing valve between the air compressor
and nailer. Then, adjust the air pressure within the
operating range of 4.9 ~ 8.3 bar (70 ~ 120 psi.). If the
air set is installed, lubrication is also possible, thus
providing additional convenience.
OILER-FILTER-REDUCING VALVE (Air Set)
So that the equipment can be operated under an optimum
condition to ensure extended service life, it is advisable
to use an oiler filter reducing valve. Please limit the length
of the hose between the unit and the air set to within
10m when using. (Fig. 10)

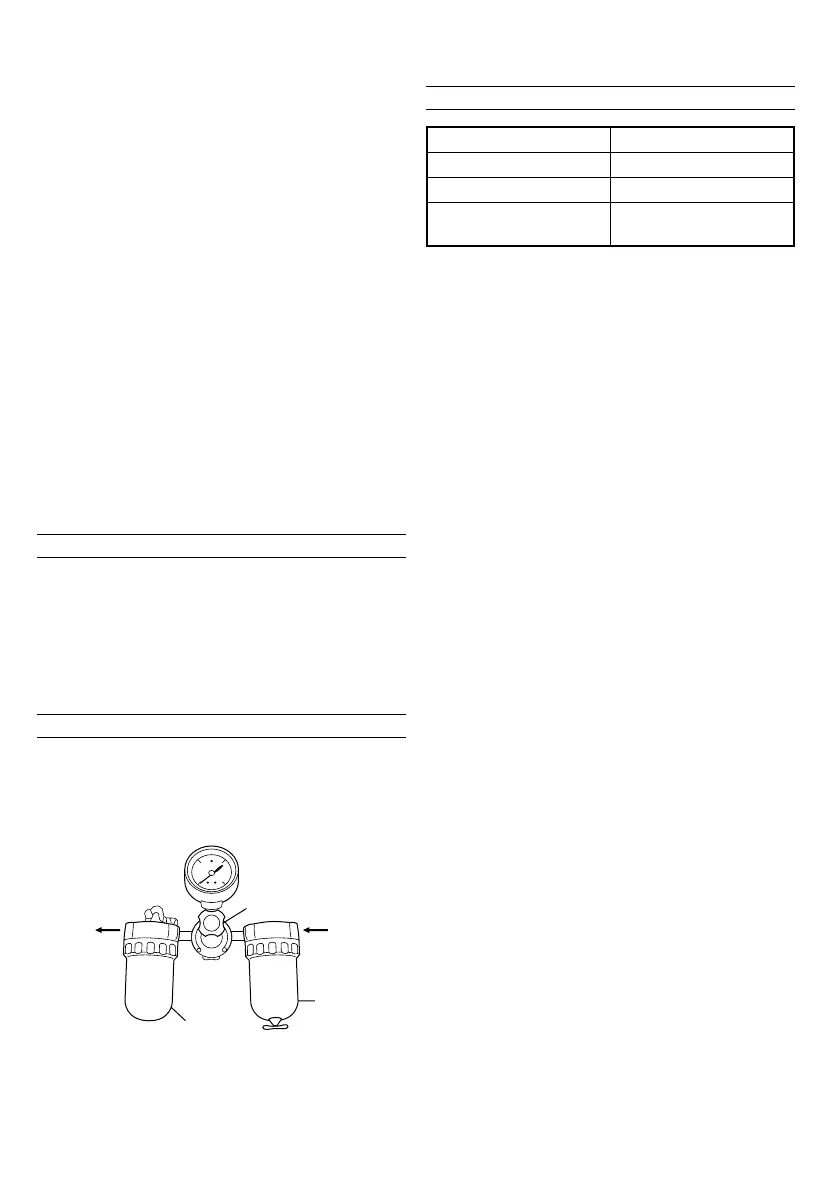

Fig. 10
Type of lubricant Name of lubricant
Recommended oil SHELL TONNA
Motor oil SAE10W, SAE20W
Turbine oil ISO VG32 – 68
(#90 – #180)
APPLICABLE LUBRICANTS
Stapler
Side
Reducing Valve
Compressor
Side
Oiler
Filter
