Hitachi N 5024A2 User Manual

English
— 11 —
OPTIONAL ACCESSORIES
... sold separately
䡬 Sequential Trip Mechanism Kit
(Code No. 876762)
(Single Shot Parts)
䡬 Pneumatic Tool Lubricant
1 oz. (30 cc) oil feeder (Code No.877153)
4 oz. (120 cc) oil feeder
(Code No.874042)
1 quart (1 ltr) can (Code No.876212)
NOTE: Accessories are subject to change
without any obligation on the part of
HITACHI.
APPLICATIONS
䡬 Insulation sheathing.
䡬 Wire lathing.
BEFORE OPERATION
Read section titled “SAFETY” (pages 5 – 8).
Make sure of the following before operation.
WORKING ENVIRONMENT
WARNING
䢇 No flammable gas, liquid or other
flammable objects at worksite.
䢇 Clear the area of children or
unauthorized personnel.
AIR SUPPLY
DANGER
䢇 NEVER use
oxygen or other
bottled gases.
Explosion may
occur.
WARNING
䢇 Never connect Stapler to pressure
which potentially exceeds 200 psi (13.7
bar 14 kgf/cm
2
).
䢇 Never use non relieving coupler on
Stapler.
1. Power source
䡬 Use only clean, dry, regulated
compressed air as a power source for this
Stapler.
䡬 Air compressors used to supply
compressed air to this Stapler must
comply with the requirements of the
latest version of ANSI Standard B 19.3
“Safety Standard For Compressors For
Process Industries.”
䡬 Moisture or oil in the air compressor may
accelerate wear and corrosion in the
Stapler.
Drain daily.

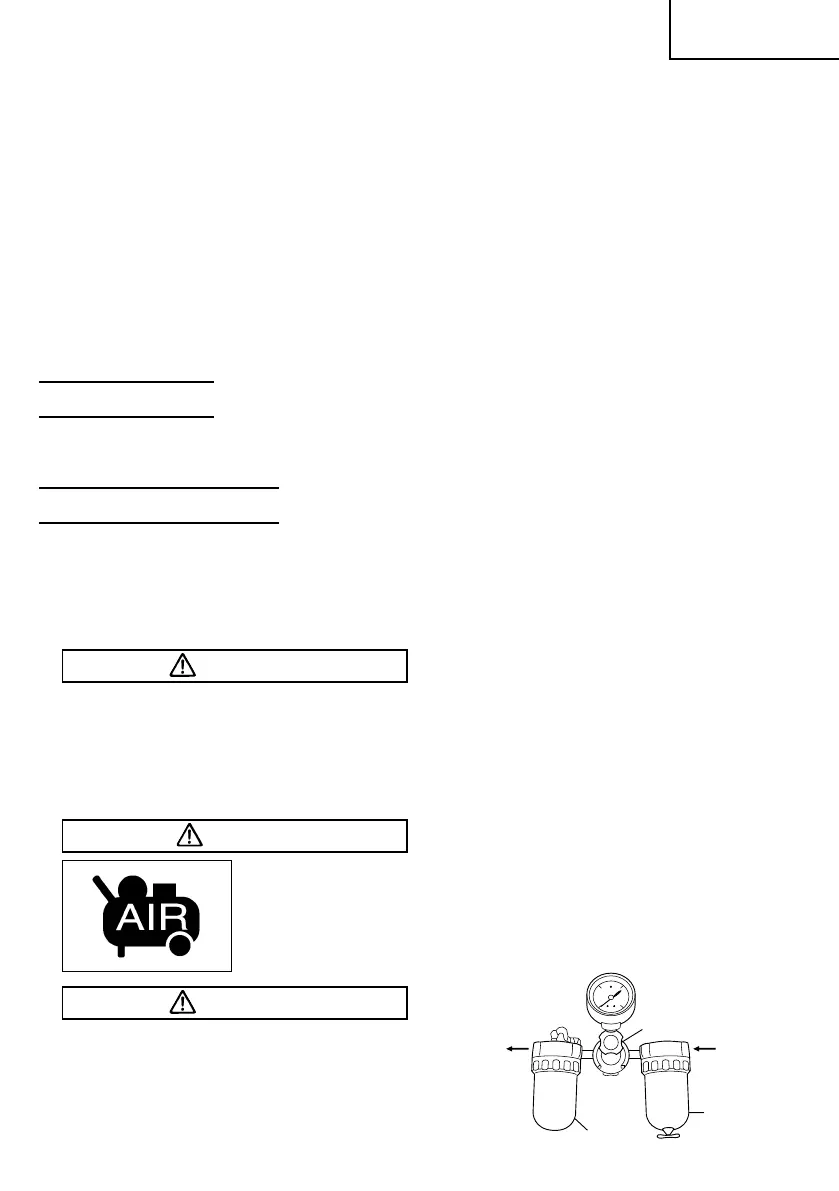

2. Filter-Regulator-Lubricator
䡬 Use a regulator with a pressure range of
0 – 120 psi (0 – 8.3 bar 0 – 8.5 kgf/cm
2
).
䡬 Filter-regulator-lubricator units supply an
optimum condition for the Stapler and
extend the Stapler life. These units
should always be used.
Filter .............. The filter removes
moisture and dirt mixed in
compressed air.
Drain daily unless fitted
with an automatic drain.
Keep the filter clean by
regular maintenance.
Regulator ...... The regulator controls the
operating pressure for
safe operation of the
Stapler.
Inspect the regulator
before operation to be
sure it operates properly.
Lubricator ..... The lubricator supplies an
oil mist to the Stapler.
Inspect the lubricator
before operation to be
sure the supply of
lubricant is adequate.
Use Hitachi pneumatic
tool lubricant.
Stapler
side
Filter
Lubricator
Compressor
side
Regulator
01Eng_N5024A2_US 12/26/08, 11:0611
