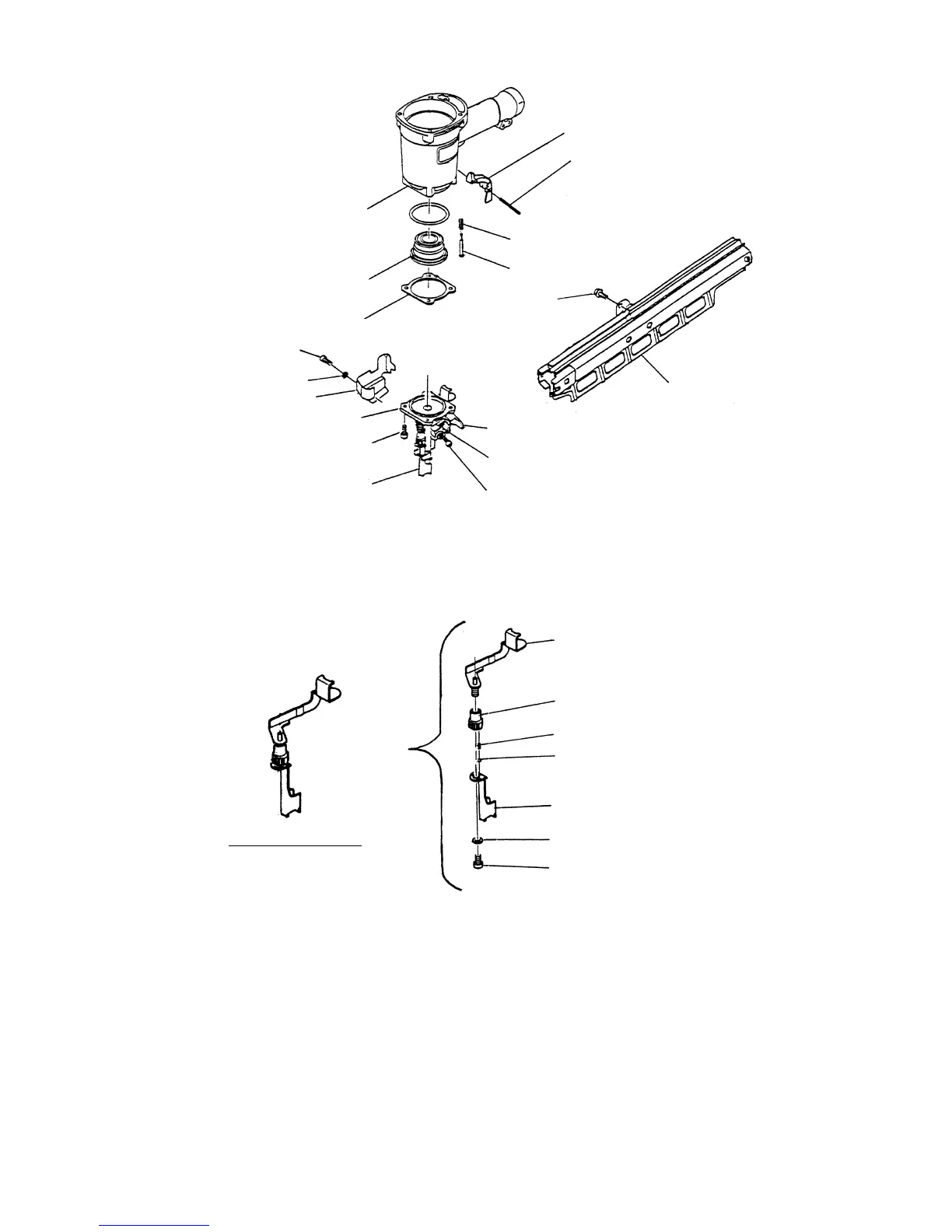

Fig. 13
High Tension Bolt
M6 x 18 [29]
High Tension Bolt M6 x 18 [29]
Magazine [82]
Spring Washer M6 [30]
Gasket (A) [28]
Piston Bumper (B) [27]
Nose [32]
Nylock Bolt
(W/Flange)
M8 x 16 [35]
Plunger (B) [74]
Roll Pin D3 x 45 [45]
Body Ass'y [25]
Fig. 14
Pushing lever ass'y
Pushing Lever (B) [47]
Washer [52]
Pushing Lever (A) [51]
Steel Ball D3.175 [50]
Adjuster Spring [49]
Adjuster [48]
Hex. Socket Hd. Bolt M6 x 12 [53]
Plunger (B) Spring [73]
Guard (B) [44]
Guard (A) [31]
Nylock Hex. Socket Hd. Bolt
M8 x 22 [33]
Pushing lever ass'y
Ribbon Spring [76]
Nail Feeder [75]
