5-2. Nail Selection
The Model NR 83AA2 utilizes D-head (clipped head) nails collated with paper tape.
Applicable nail dimensions are shown below. Please note that screw-type nails cannot be used with the Model
NR 83AA2.
CAUTION: Ensure that nails are as specified in Fig. 1. The Model NR 83AA2 utilizes D-head (clipped
head) nails collated at an angle of 34 degrees which are the same as the nails utilized by a
competitor's model Paslode. However, some D-head nails made by other makers are
collated at a different angle of 26 degrees. Use of such nails will cause clogging of nails and
subsequent damage to the nailer. Also avoid use of misaligned nails or nails collated with a
weak paper tape. It is recommended to use genuine HITACHI nails to ensure satisfactory
driving quality.
6.8 mm
(0.266")
2.9 mm
(0.113")
51 mm (2")
Minimum
Paper tape collated strip nails D-head (clipped head) nails

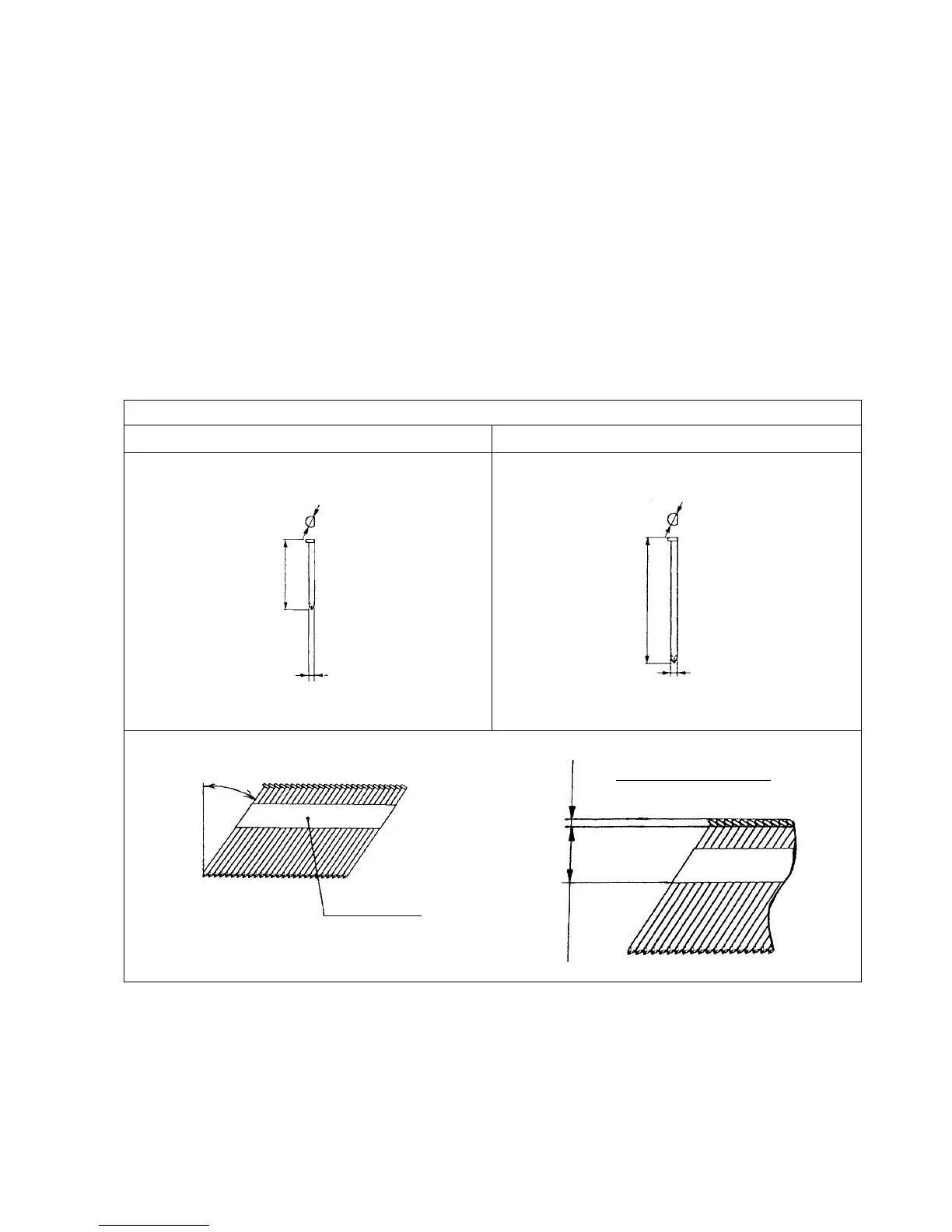

Fig. 1 Dimensions of nail
Maximum
7.1 mm
(0.280")
83 mm (3-1/4")
3.3 mm
(0.131")
34˚
Paper tape
3.3 mm x 83 mm nails
(0.131" x 3-1/4")
Max.
4.6 mm
(0.181")
Max.
31.7 mm
(1.248")
