8-6. Insulation Tests
On completion of disassembly and repair, carefully measure the insulation resistance and conduct a dielectric
strength test.
Insulation resistance: 7 M or more with 500 V DC megohm tester
Dielectric strength test: AC 4,000 V/1 minute with no abnormalities ....................220 V --- 240 V products
AC 2,500 V/1 minute with no abnormalities ....................110 V -
--
127 V products

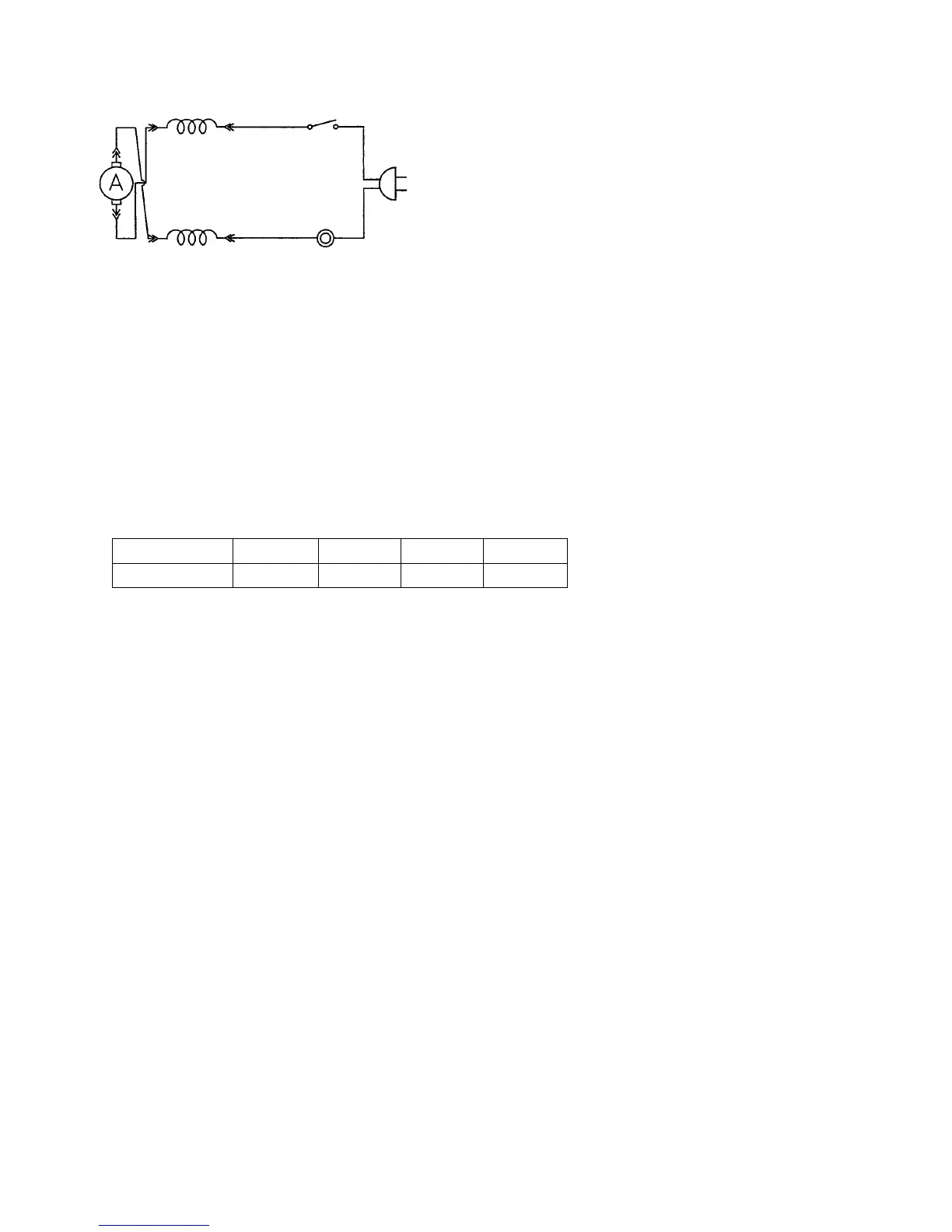

8-7. No-load Current Value
After no-load running for 30 minutes, the no-load current value should be as follows.
Voltage (V)
Current (A) max.
110
3.0
(5) For other countries
220
1.6
240
1.7
230
1.8
Gray
Cord
Switch
Stator
Brown
Black
Stator
Gray
Blue
Black
Connector
1
3
