Hitachi PDA-100K Technical Data And Service Manual

--- 13 ---
8-3. Lubrication Points and Types of Lubricant
Pinion chamber of Gear Cover Ass'y [4] <3> .............. Nippeco grease (SEP-3A) 5 g
(Code No. 930035 is recommended.)
Generously rub grease onto the gear and pinion.
Needle bearing ............................................................ Mixed oil 0.5 cc
Mixed oil: Mixture of Hitachi Power Tool Grease No. 2
(Unilube No. 00, Code No. 939302) and
turbine oil
Mixture ratio ................1:1 (weight ratio)
8-4. Tightening Torque
Tapping Screws D4
[10] <9> [38] <37> [39] <38> [49] <48> [55] <54> ................ 2.0 0.5 N•m (20 5 kgf•cm, 1.5 0.4 fb-lbs.)
Seal Lock Screws (W/Sp. Washer) M4 [18] <17> [23] <22> .. 1.8 0.4 N•m (18 4 kgf•cm, 1.3 0.3 fb-lbs.)
Machine Screw M5 [1] ............................................................ 3.7 0.7 N•m (35 7 kgf•cm, 2.6 0.6 fb-lbs.)
Tapping Screw D5 <1>............................................................ 2.9 0.5 N•m (30 5 kgf•cm, 2.2 0.4 fb-lbs.)
Machine Screw (W/Sp. Washer) M5 [27] <26> ......................... 1.6 0.4 N•m (16 4 kgf•cm, 1.2 0.3 fb-lbs.)
Special Nut M7 [5] <4> ........................................................... 6.4 1.0 N•m (65 10 kgf•cm, 4.7 0.7 fb-lbs.)
Brush Cap [40] <39> .............................................................. 0.6 0.2 N•m (6 2 kgf•cm, 0.4 0.1 fb-lbs.)

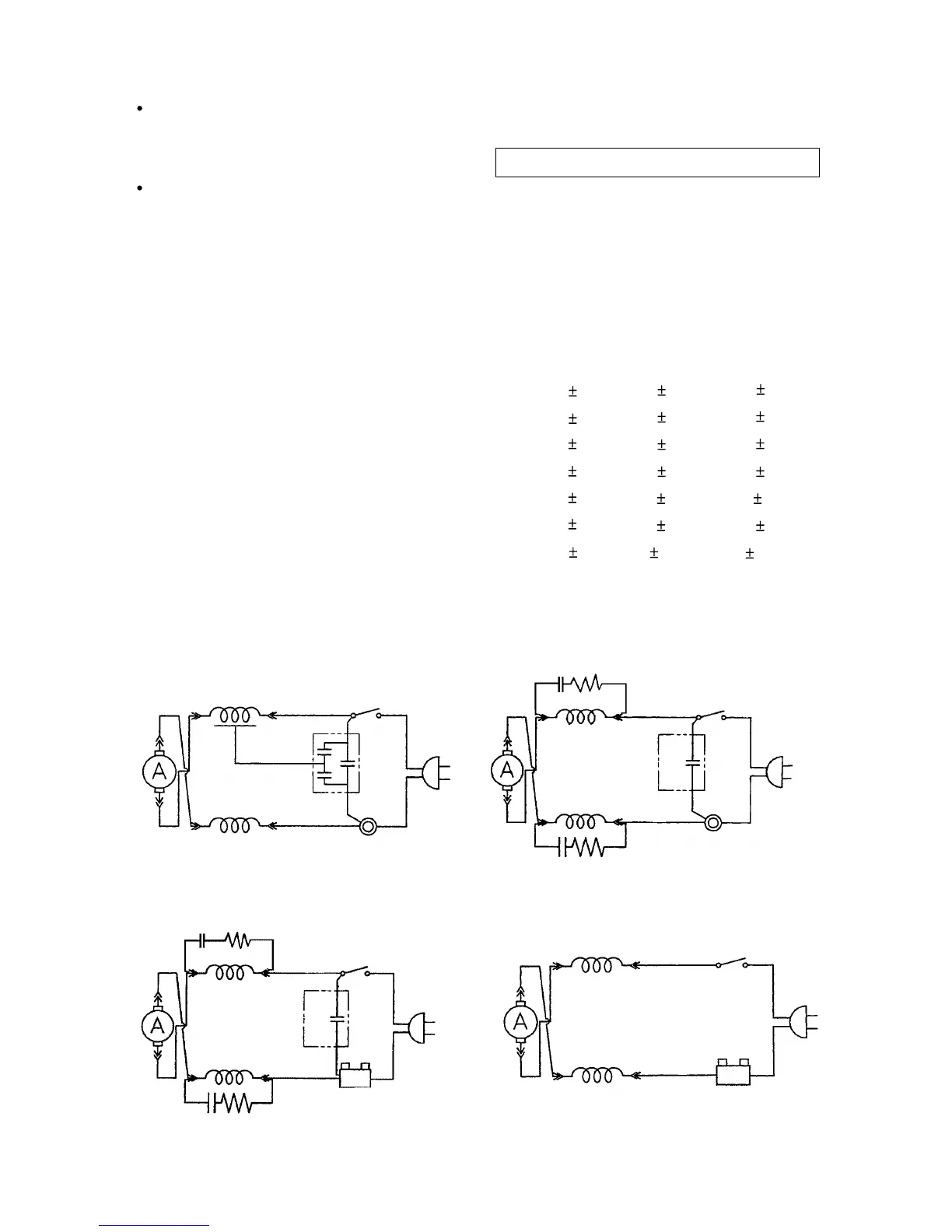

8-5. Wiring Diagram
(1) For Taiwan (2) For Korea
Gray
Noise
suppressor
Switch
Stator
Black
Black
Red
Colorless
Stator
Gray
White
Red
Black
Connector
1
3
Gray
Noise
suppressor
Cord
Switch
Stator
Brown
Black
Stator
Gray
Blue
Black
Connector
13
CR unit
White
White
Gray
Noise
suppressor
Cord
Switch
Stator
Brown
Black
White
Stator
Gray
Blue
Black
Piller Terminal
1
3
(3) For China (4) For Singapore and Malaysia
CR unit
White
CR unit
CR unit
Gray
Cord
Switch
Stator
Brown
Black
Stator
Gray
Blue
Black
1
3
Pillar terminal
Cord
