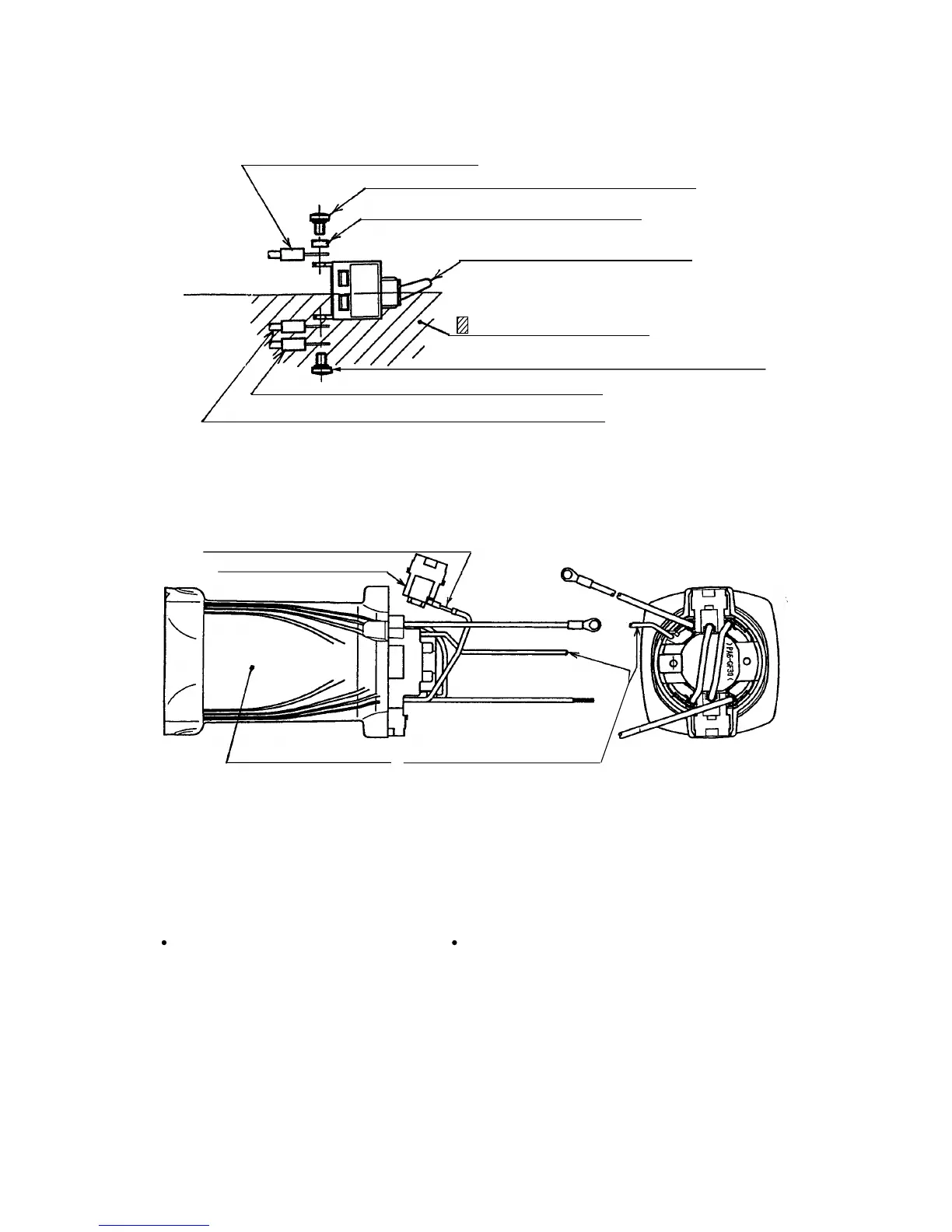

Fig. 8
Bottom of the housing
(7) Connect the internal wires of Stator (A) [11] <10> correctly as shown in Fig. 8 and Fig. 9.
(8) Connect each internal wire correctly as shown in Fig. 7 being careful not to put them between the parts.
Brush Holder [42] <41>
Internal wire from Cord [56] <55>
Machine Screw (W/Washer) M3.5 x 6 [50] <49>
Guide Plate (Attached switch for Taiwan,
Singapore, Malaysia, China, Korea)
Machine Screw (W/Washer) M3.5 x 6 [50] <49>
Switch (1P Screw Type) [51] <50>
: Tail Cover (A) [37] <36>
Internal wire from Stator (A) [11] <10>
Internal wire from Noise Suppressor [47] <46>
Fig. 9
Internal wire coming from the
Noise Suppressor [47] <46>
Colorless
Insert the terminal securely then push
and fold the terminal toward the outside
of the housing as much as possible.
Colorless
(9) When replacing the Gear Cover Ass'y [4] <3>, lubricate the needle bearing part with mixed oil.
Mixed oil: A mixture of Hitachi Power Tool Grease No. 2 (Unilube No. 00 Code No. 939302 is recommended)
and turbine oil
Mixture ratio ......... 1:1 (weight ratio) Quantity ........... 0.5 cc
OFF side
ON side
