--- 11 ---

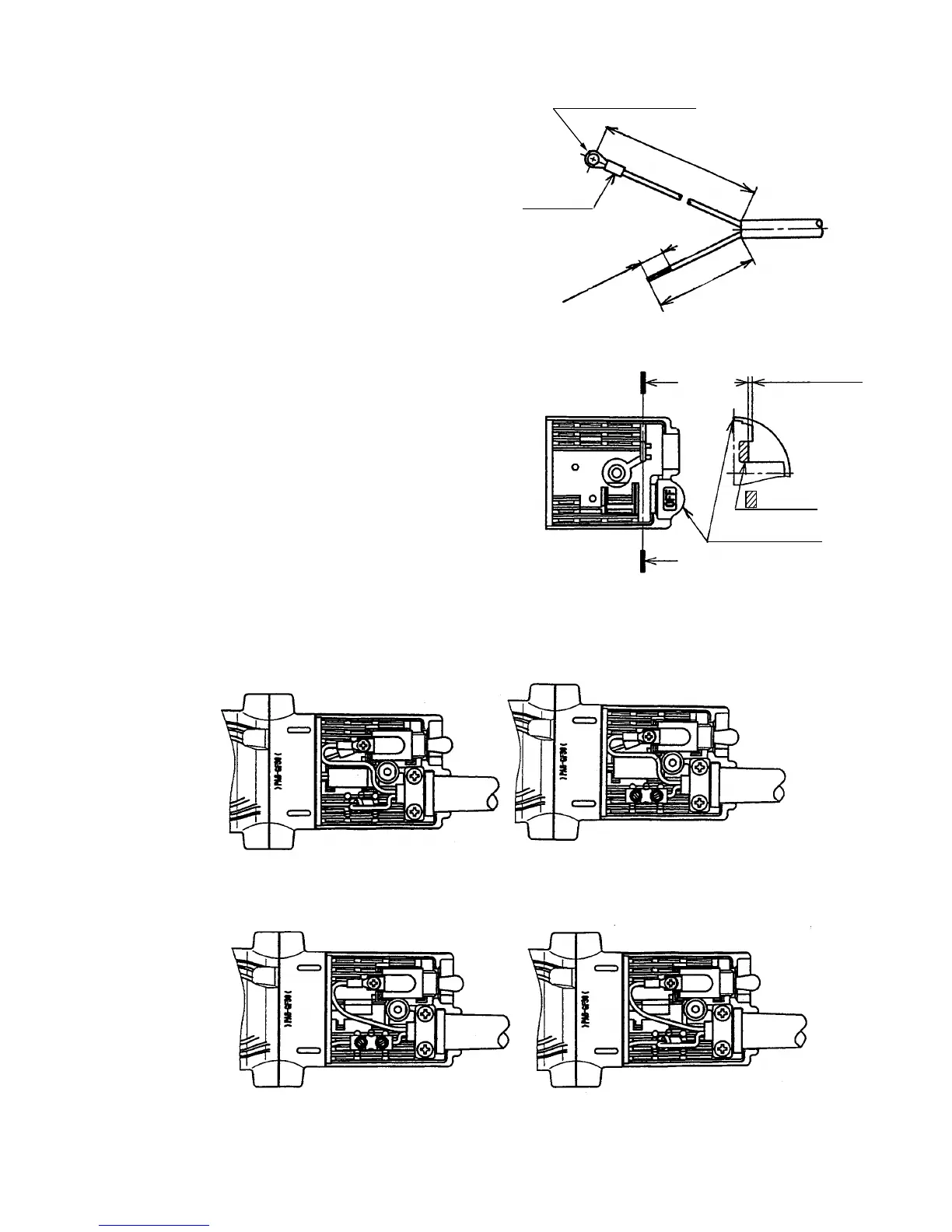

(6) Mount the Cord [56] <55> according to the following
procedure when replacing the standard cord (cord armor is
integrally molded).
1) Remove the standard cord (cord armor is integrally
molded) according to the procedure of 8-1 (3).
2) Strip the coating on the internal wire of the Cord
[56] <55> about 10 mm from the tip and crimp the
Terminal [52] <51> to the brown or black internal wire as
shown in Fig. 5.
3) Insert the Cord [56] <55> into the Cord Armor D8.8 [53]
<52>.
4) Cut off the rib for holding the cord of Tail Cover (B) [48]
<47> with nippers as shown in Fig. 6.
5) Mount the Cord [56] <55> and the Cord Armor D8.8
[53] <52> to Tail Cover (A) [37] <36> and secure them
with the Cord Clip [54] <53> and two Tapping Screws
(W/Flange) D4 x 16 [55] <54> as shown in Fig. 7.
6) Mount each internal wire reversing the removal
procedure. Then mount Tail Cover (B) [48] <47> to Tail
Cover (A) [37] <36> and secure them with the Tapping
Screw (W/Flange) D4 x 25 (Black) [49] <48>.
Fig. 6
Fig. 7-1
Fig. 7-2
Fig. 5
Terminal [52] <51>
Cord [56] <55>
Caulking
A
Stripped
length
10 mm
White
or blue
40 mm
85 mm
Black or brown
A --- A
Tail Cover (B)
[48] <47>
A
Approximately
2 mm
(a) For Taiwan and Korea
(b) For China
(c) For Singapore and Malaysia
(d) For other countries
: Cut off
