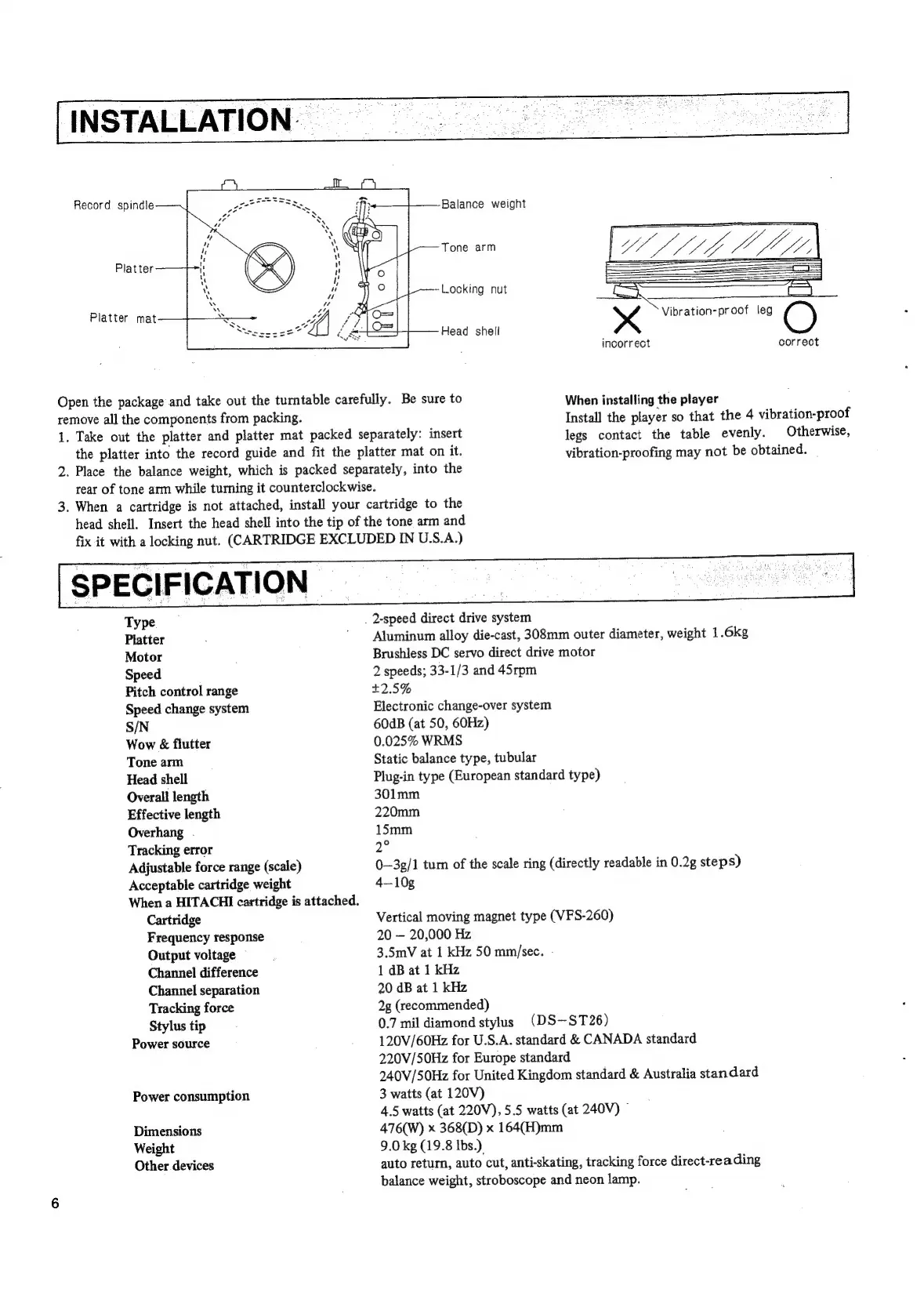

INSTALLATION: —
Record spindle
Platter
Open
the
package
and
take
out
the
turntable
carefully.
Be
sure
to
remove all the components from packing.
1.
Take
out
the
platter
and
platter
mat
packed
separately:
insert
the
platter
into
the
record
guide
and
fit
the
platter
mat
on
it.
2.
Place
the
balance
weight,
which
is
packed
separately,
into
the
rear
of
tone
arm
while
turning
it
counterclockwise.
3.
When
a
cartridge
is
not
attached,
install
your
cartridge
to
the
head
shell.
Insert
the
head
shell
into
the
tip
of
the
tone
arm
and
fix
it
with
a
locking
nut.
(CARTRIDGE
EXCLUDED
IN
U.S.A.)
Balance weight
Tone arm
Locking nut
Head shell
wZZ7Z7ZzZ77
pa
Vibration-proof
leg
O
incorrect correct
When installing the player
Install
the
player
so
that
the
4
vibration-proof
legs
contact
the
table
evenly.
Otherwise,
vibration-proofing
may
not
be
obtained.
|
SPECIFICATION
Type
_
2-speed
direct
drive
system
Platter
Aluminum
alloy
die-cast,
308mm
outer
diameter,
weight
1.6kg
Motor
Brushless
DC
servo
direct
drive
motor
Speed
2
speeds;
33-1/3
and
45rpm
Pitch control range 42.5%
Speed
change
system
Electronic
change-over
system
S/N
60dB
(at
50,
60Hz)
Wow
&
flutter
0.025%
WRMS
Tone
arm
Static
balance
type,
tubular
Head
shell
Plug-in
type
(European
standard
type)
Overall
length
301mm
Effective
length
220mm
Overhang
.
15mm
Tracking error 2°
Adjustable
force
range
(scale)
0—3g/1
turn
of
the
scale
ring
(directly
readable
in
0.2g
steps)
Acceptable
cartridge
weight
4—10g
When a HITACHI cartridge is attached.
Cartridge
Vertical
moving
magnet
type
(VFS-260)
Frequency
response
20
—
20,000
Hz
Output
voltage
3.5mV
at
1
kHz
50
mm/sec.
-
Channel
difference
1
dB
at
1
kHz
Channel
separation
20
dB
at
1
kHz
Tracking
force
2g
(recommended)
Stylus
tip
0.7
mil
diamond
stylus
(DS—ST26)
Power source
Power consumption
Dimensions
Weight
Other devices
120V/60Hz
for
U.S.A.
standard
&
CANADA
standard
220V/50Hz
for
Europe
standard
240V/50Hz
for
United
Kingdom
standard
&
Australia
standard
3
watts
(at
120V)
4.5 watts (at 220V), 5.5 watts (at 240V) ©
476(W) x 368(D) x 164(H)mm
9.0 kg (19.8 Ibs.)
auto
return,
auto
cut,
anti-skating,
tracking
force
direct-rea
ding
balance
weight,
stroboscope
and
neon
lamp.
