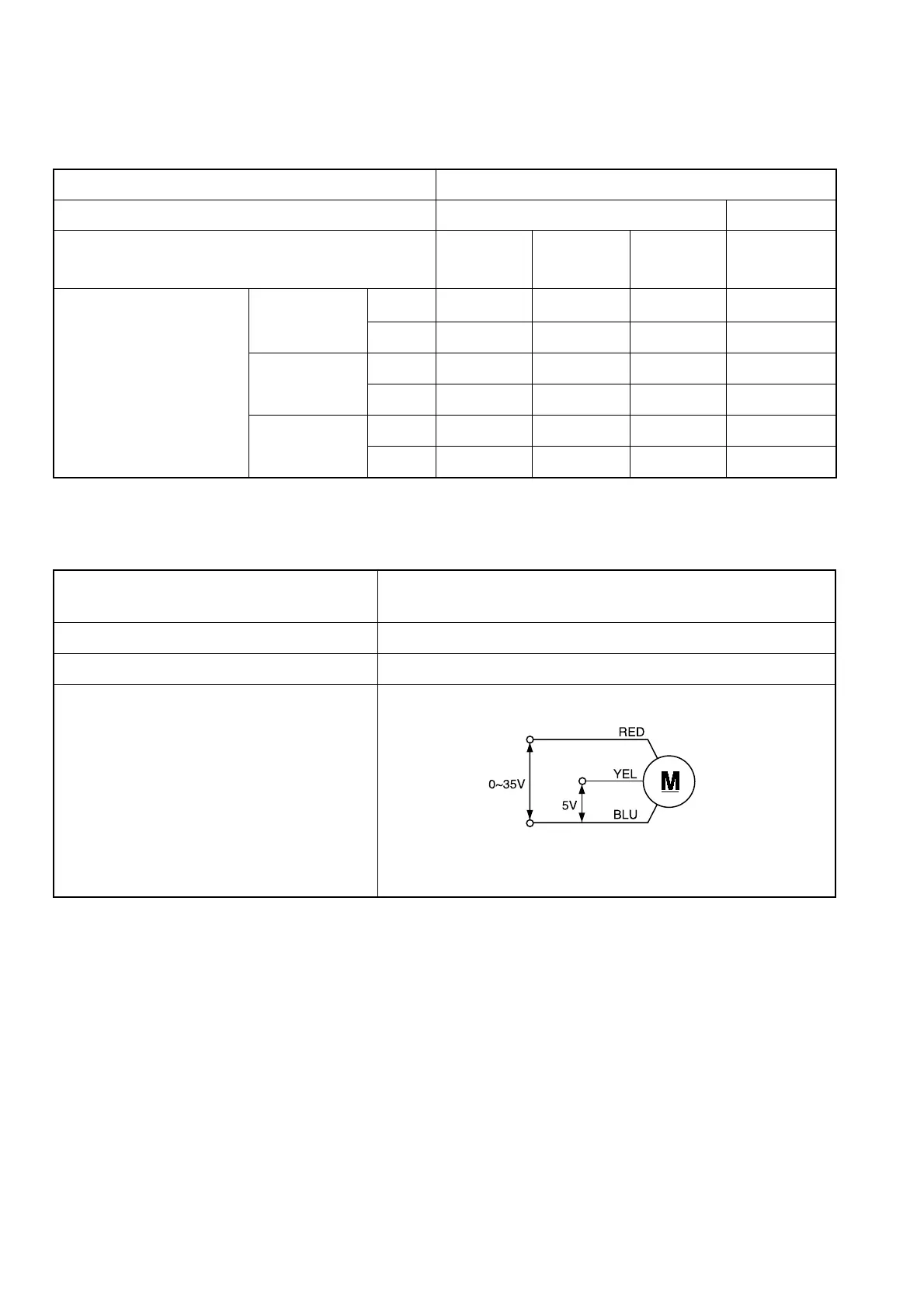

MAIN PARTS COMPONENT
THERMOSTAT
Thermostat Specifi cations
FAN MOTOR
Fan Motor Specifi cations
CONNECTION
TEMPERATURE
°C (°F)
INDICATION
16
INDICATION
24
INDICATION
32
THERMOSTAT MODEL
OPERATION MODE
MODEL
MODEL
RAI-25RPA / RAI-35RPA / RAI-50RPA
POWER SOURCE DC: 0 ~ 35V
OUTPUT 25W
(Control circuit built in)
BLU : BLUE YEL : YELLOW BRN : BROWN WHT : WHITE
GRY : GRAY ORN : ORANGE GRN : GREEN RED : RED
BLK : BLACK PNK : PINK VIO : VIOLET
IC
COOL HEAT
RAI-25RPA
RAI-35RPA
RAI-50RPA
RAI-50RPARAI-35RPARAI-25RPA
ON
OFF
ON
OFF
ON
OFF
15.0 (59.0)
14.7 (58.5)
23.0 (73.4)
22.7 (72.9)
31.0 (87.8)
30.7 (87.3)
13.0 (55.4)
12.7 (54.9)
21.0 (69.8)
20.7 (69.3)
29.0 (84.2)
28.7 (83.7)
20.0 (68.0)
20.3 (68.5)
28.0 (82.4)
28.3 (82.9)
36.0 (96.8)
36.3 (97.9)
13.0 (55.4)
12.7 (54.9)
21.0 (69.8)
20.7 (69.3)
29.0 (84.2)
28.7 (83.7)
