– 5 –
ENGLISH
Air filter
To prevent dust from coming into the indoor unit.
(Refer page 17)
Front panel (Air inlet)
Indoor unit indicators
Light indicator showing the operating condition.
(Refer page 6)
Horizontal deflector
●
Vertical deflector
(Air Outlet)
(Refer page 13)
Remote controller
Send out operation signal to the indoor unit. So as to
operate the whole unit.
(Refer page 7)
OUTDOOR UNIT
Drain pipe
Condensed water drain to outside.
Connecting cord
Air inlet (Back, Left side)
Air outlet
WIDTH (mm)
815
700
MODEL
RAS-10C9G, RAS-13C9G
RAC-10C9G, RAC-13C9G
HEIGHT (mm)
298
570
DEPTH (mm)
208
210
MODEL NAME AND DIMENSIONS
INDOOR UNIT

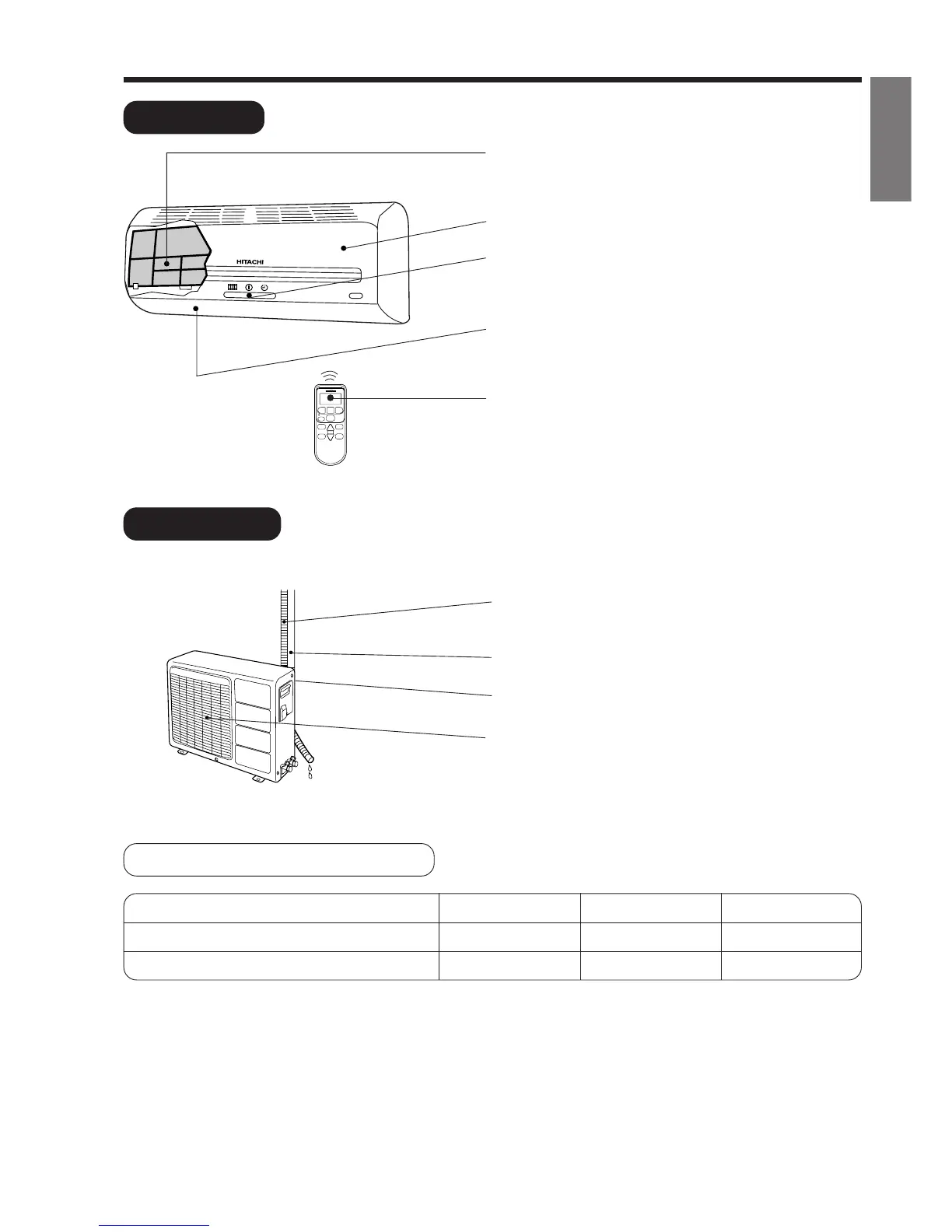

NAMES AND FUNCTIONS OF EACH PART
To Next Page
